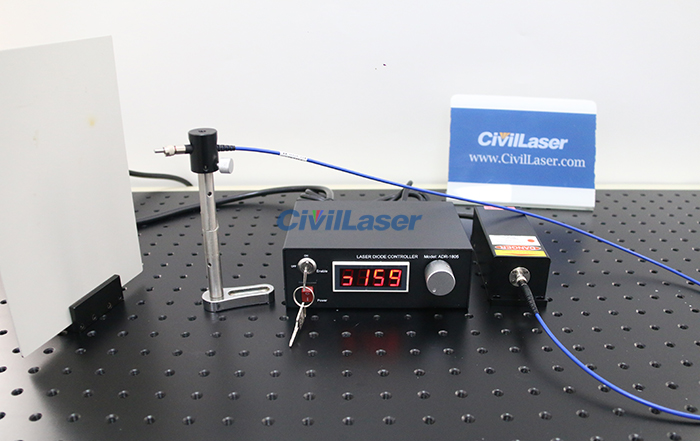

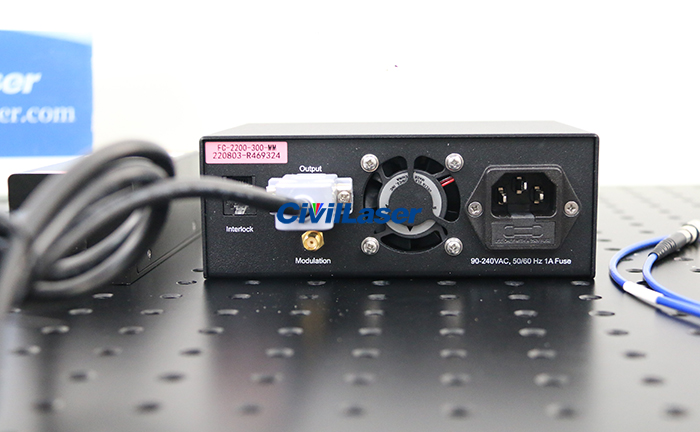

This is a 2200nm 300mW laser system with 400μm fiber. The fiber is pluggable, and it’s interface can be customized according to customer needs. It supports two working modes: CW and Modulation. The laser output power is adjustable by rotating the silver-white rotary button. The middle display shows the magnitude of the current. The higher the current, the higher the output laser power.
The 2200nm multimode fiber-coupled laser is fiber-coupled with a 2200nm semiconductor laser to obtain fiber output. The coupled fiber output laser power stability is good, the spot pattern can be improved, and the collimated beam can meet the demand for high beam requirements.

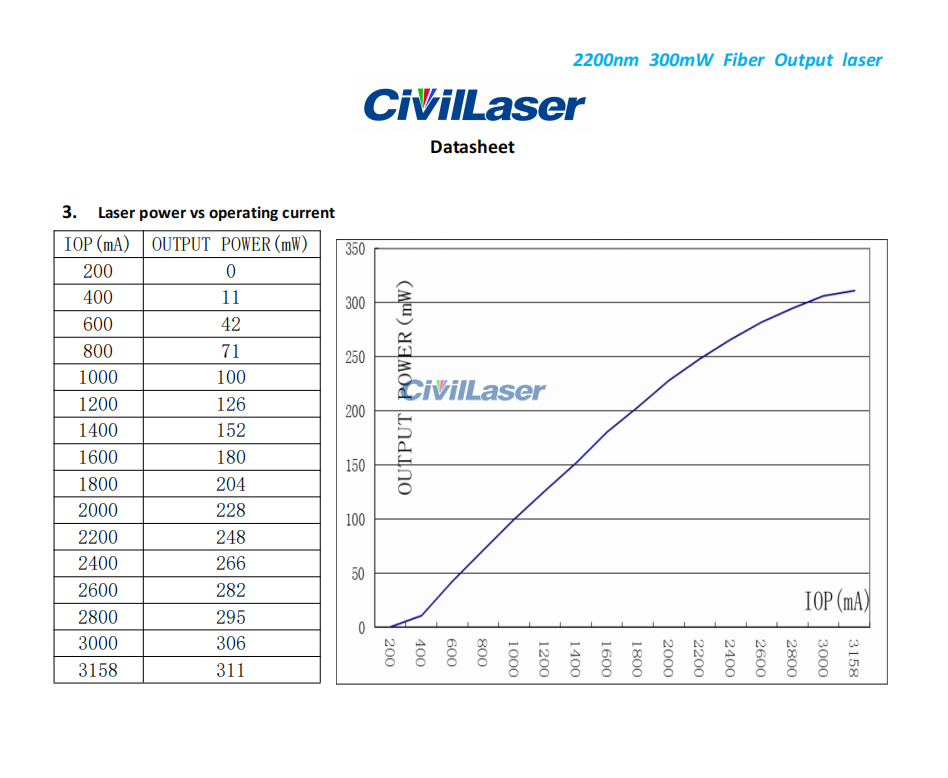

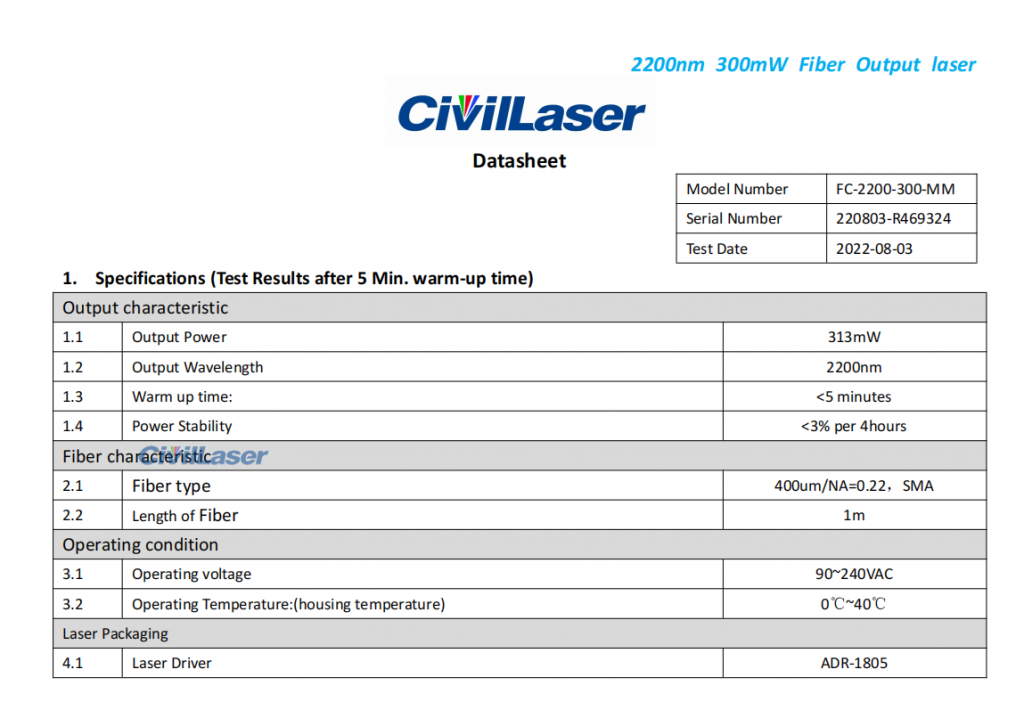

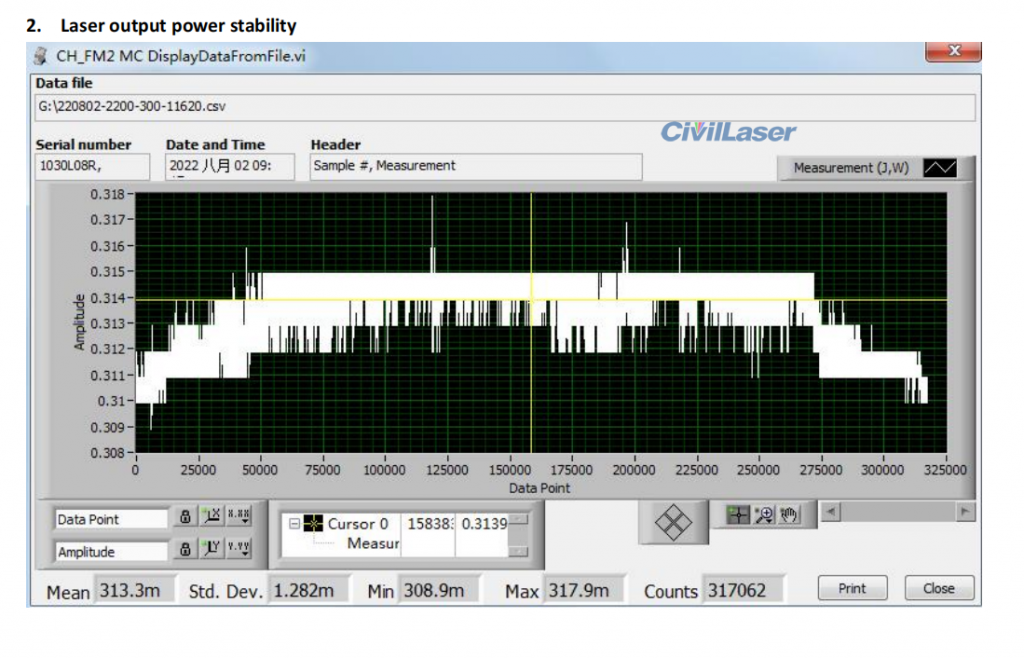

The test report of 2200nm laser.
