This is 635nm 160mW red fiber coupled laser source. It support CW and Modulation two working modes. The laser adopts the button control mode by default, and the software control mode can be customized. mWhen using the software control mode, you need to switch the button on the back of the chassis to the PC gear.
It is equipped with 200μm multimode fiber, and the fiber is pluggable. The fiber interface can be customized, here is the FC/PC interface, and the buckle should be aligned when installing. Let’s check it now.

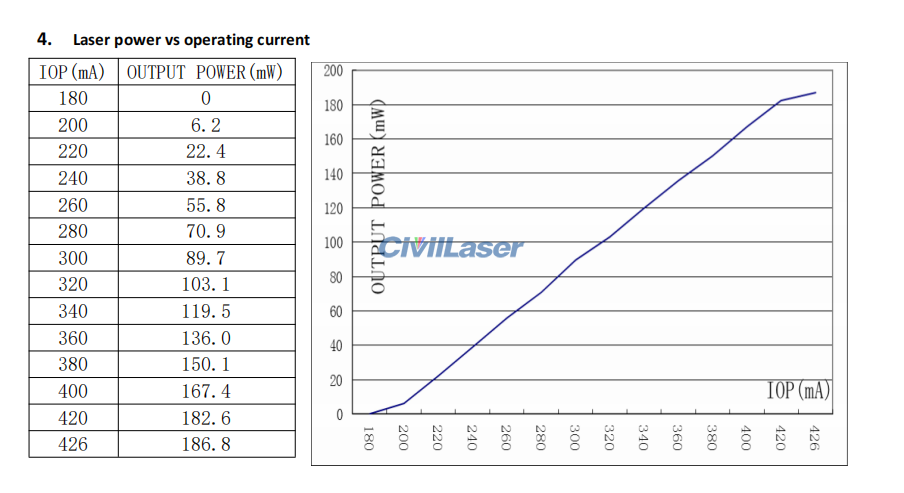

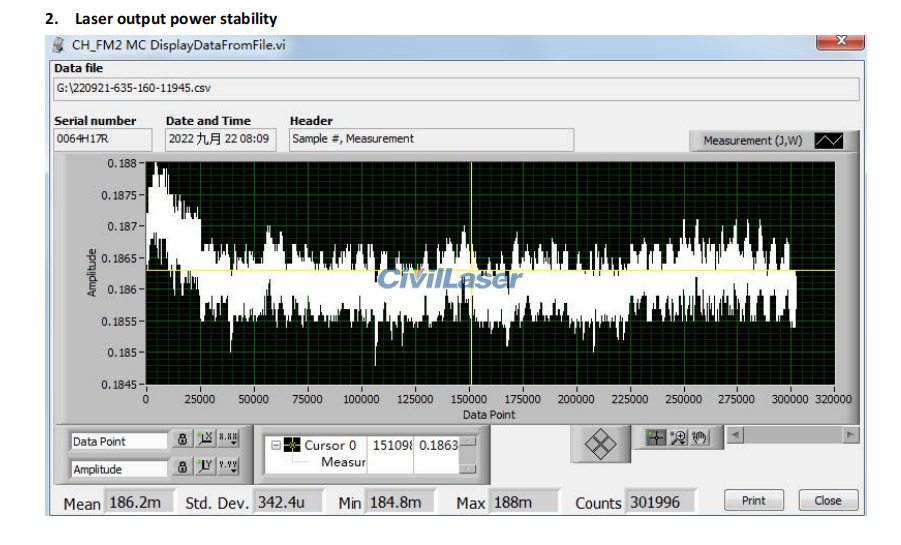

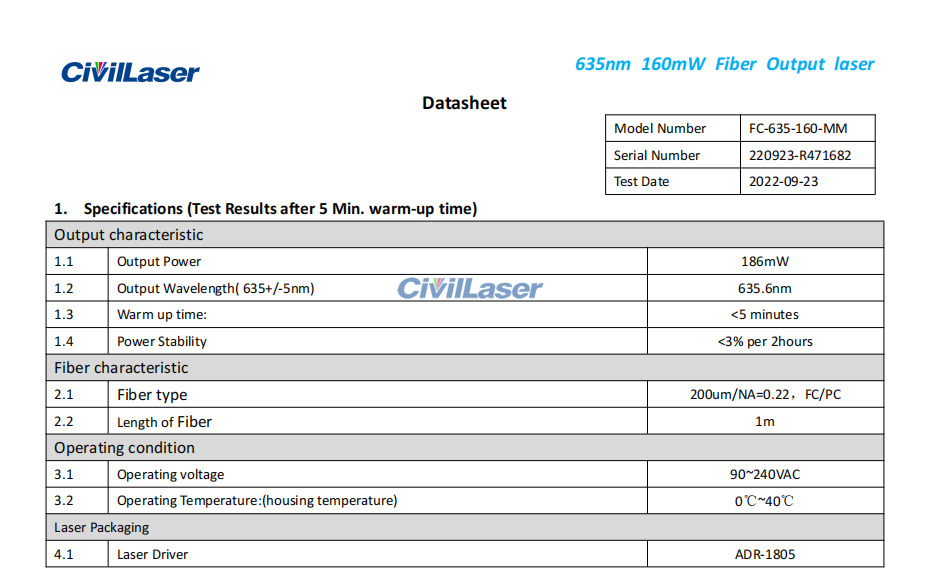

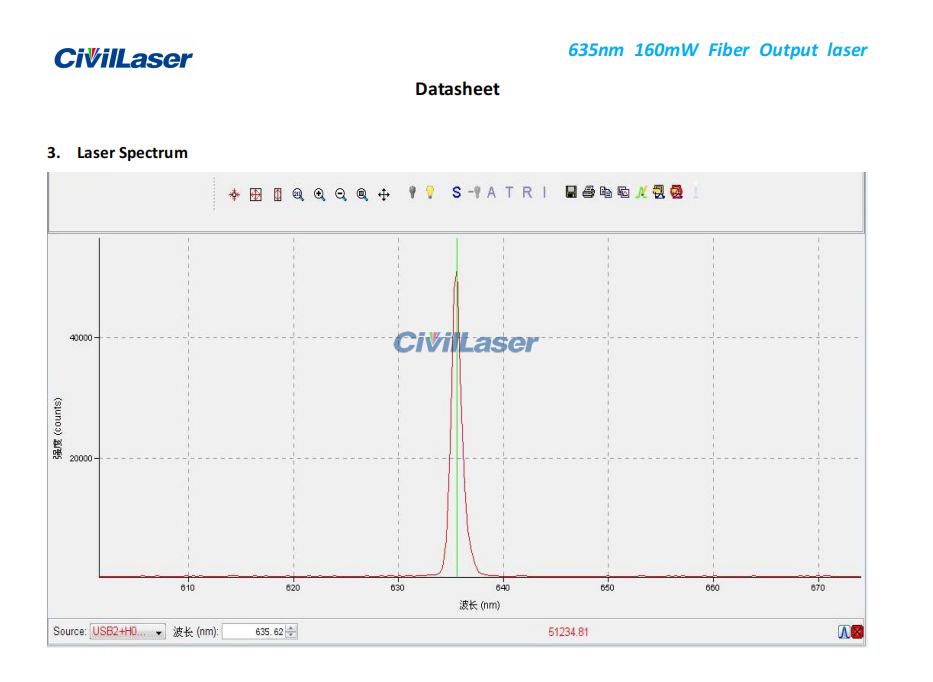

The laser test report.
