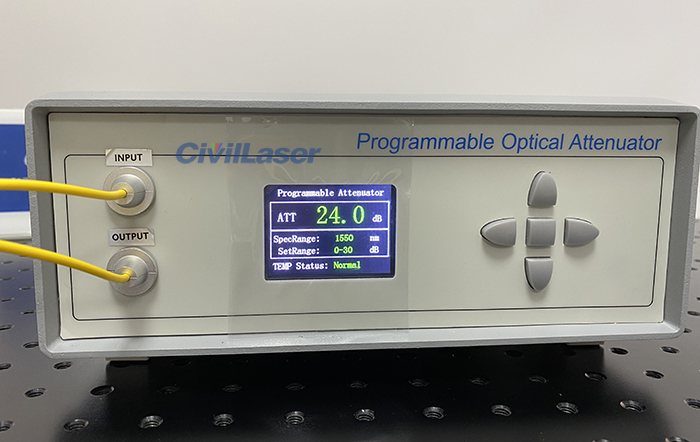

This is a 1550nm Variable Optical Attenuator. Its attenuation range is 0~30dB, which is adjustable. The adjustment step of the attenuation value is 0.1dB. Single-mode optical fiber is used here. It supports both button adjustment and software control. Connect to PC software via RS232 communication interface.
Desktop fiber optic adjustable attenuator is specially used for attenuation control of optical power in optical fiber optical paths. It has built-in power monitoring, large attenuation range, high adjustment accuracy, and stable power. It can be selected as normally open or normally closed type, and provides desktop or modular packaging.

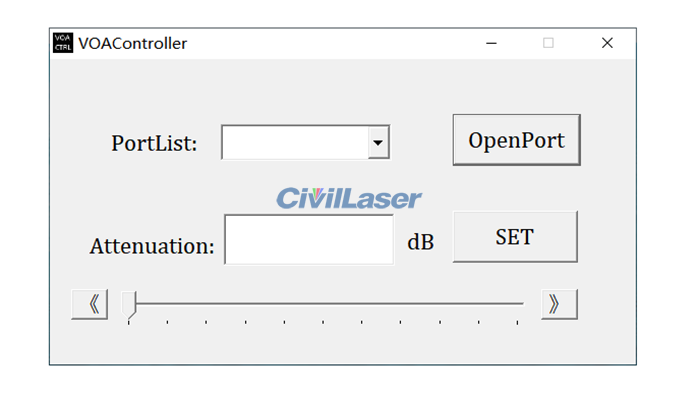

The control software interface.

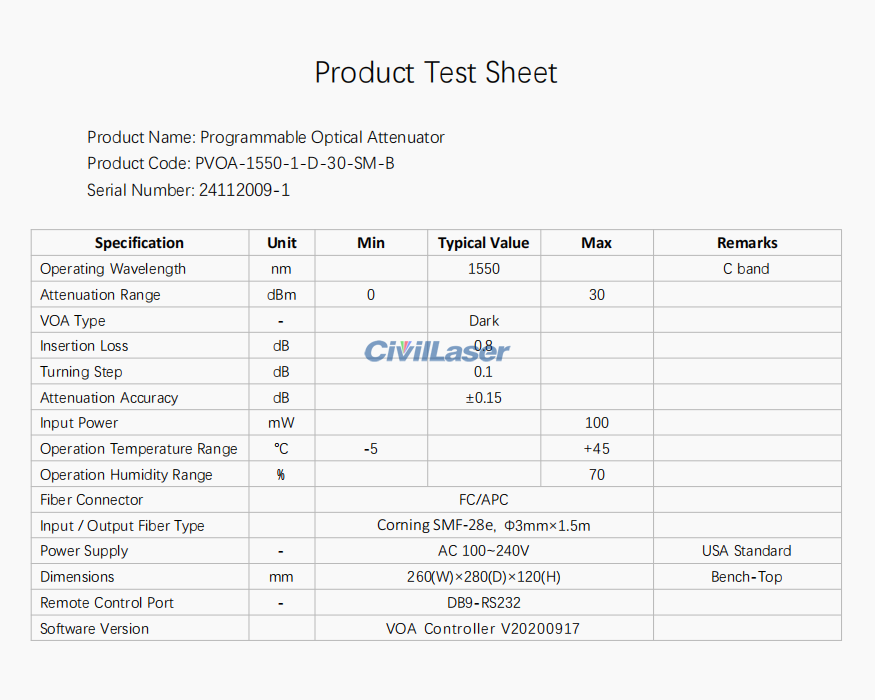

The test report of this optical attenuator.
Instructions for use:
Turn on the power switch at the back. Use the buttons to adjust the attenuation value. The left and right buttons are used to select the digit to be adjusted. The up and down buttons adjust the corresponding value.
