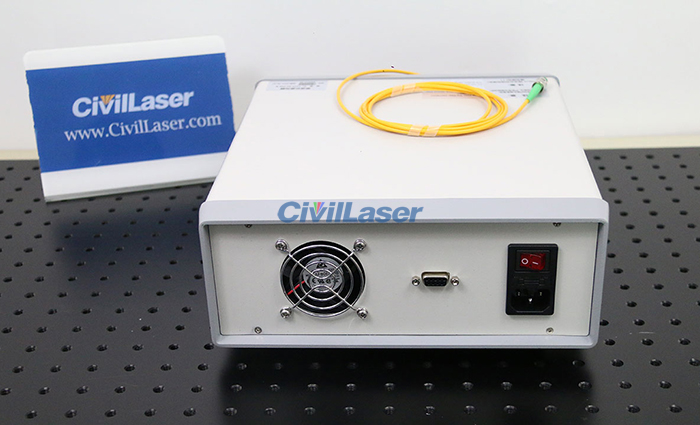

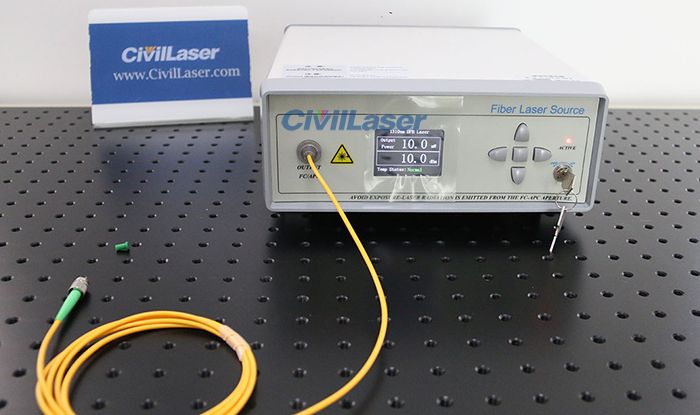

This is a 1310nm 20mW infrared laser coupled optical fiber. The fiber is PM1310 polarization-maintaining fiber, and SMF-28e single-mode fiber can also be customized. In addition, the single-mode fiber coupling interface is a consumable part, we make it into a fixed state and cannot be plugged or unplugged. The power of the laser output can be adjusted by the button, and the adjustment accuracy is 0.1mW. The back of the laser has an RS232 interface, and software control mode can be added.
1310nm laser light source uses DFB semiconductor laser chip, single-mode fiber output, professionally designed drive circuit and TEC control to ensure the safe and stable operation of the laser, can provide desktop or modular packaging.

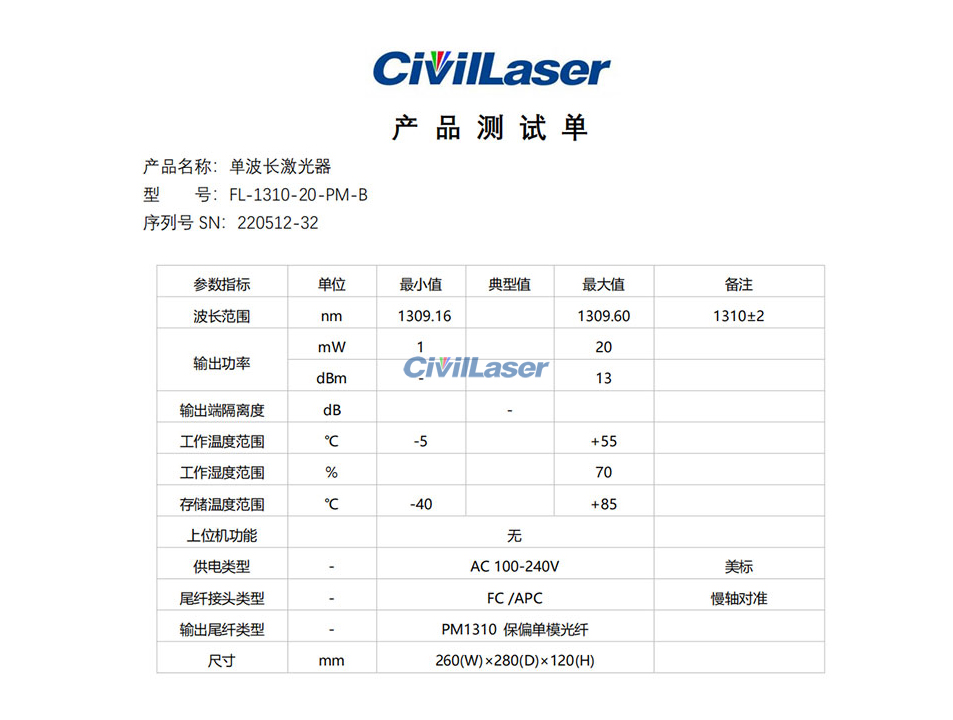

The test data for a 1310nm laser.

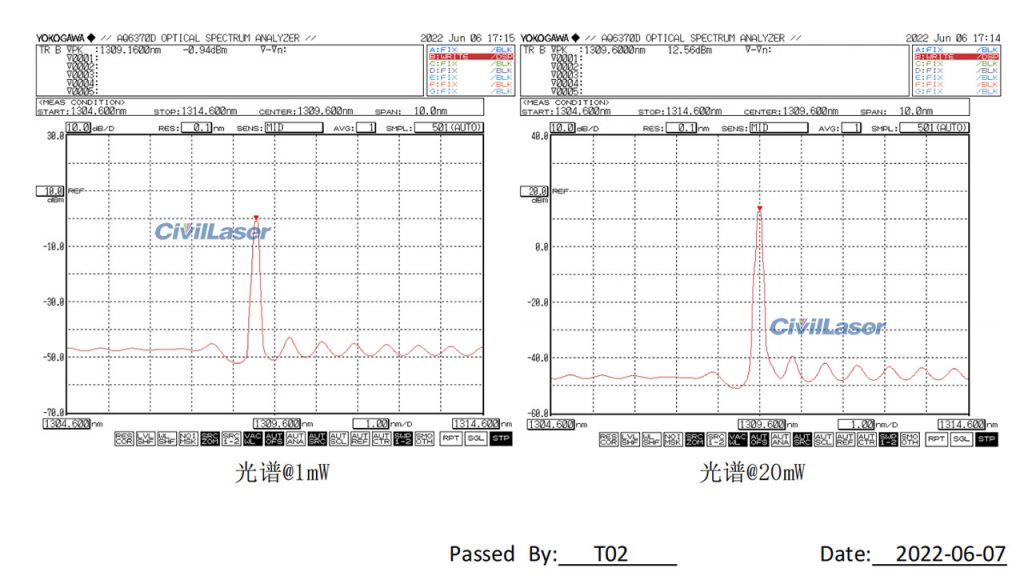

The spectra of the 1310nm laser at 1mW and 20mW respectively.
