It’s a high power polarization maintaining ytterbium-doped optical amplifier. Civil Laser’s 10W high power YDFA include a ‘Monitor’ fiber. The software control function can be customized, and the default is button control. The working current or output power can be adjusted by the button.
It supports APC and ACC two working modes can be switched. In APC mode, the output power can be adjusted. In ACC mode, the working current can be adjusted.

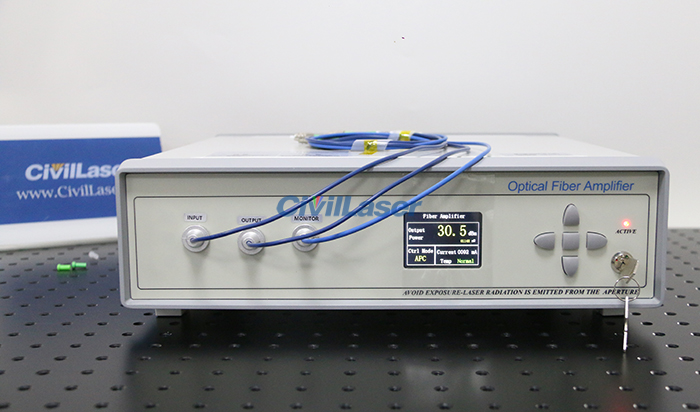

Ytterbium-doped fiber amplifier (YDFA) generates gain by pumping ytterbium-doped fiber with a semiconductor laser, and is used to amplify laser signals in the 1030~1100nm band. PM980 polarization-maintaining fiber output, the output power is continuously adjustable, and has the advantages of high gain and low noise. The desktop YDFA is convenient for experimental operation, and the user can adjust the pump current and output power through the buttons on the front panel. A more compact modular YDFA is also available, which is convenient for users’ system integration. Both desktop YDFA and modular YDFA can support PC software control and serial port command control.

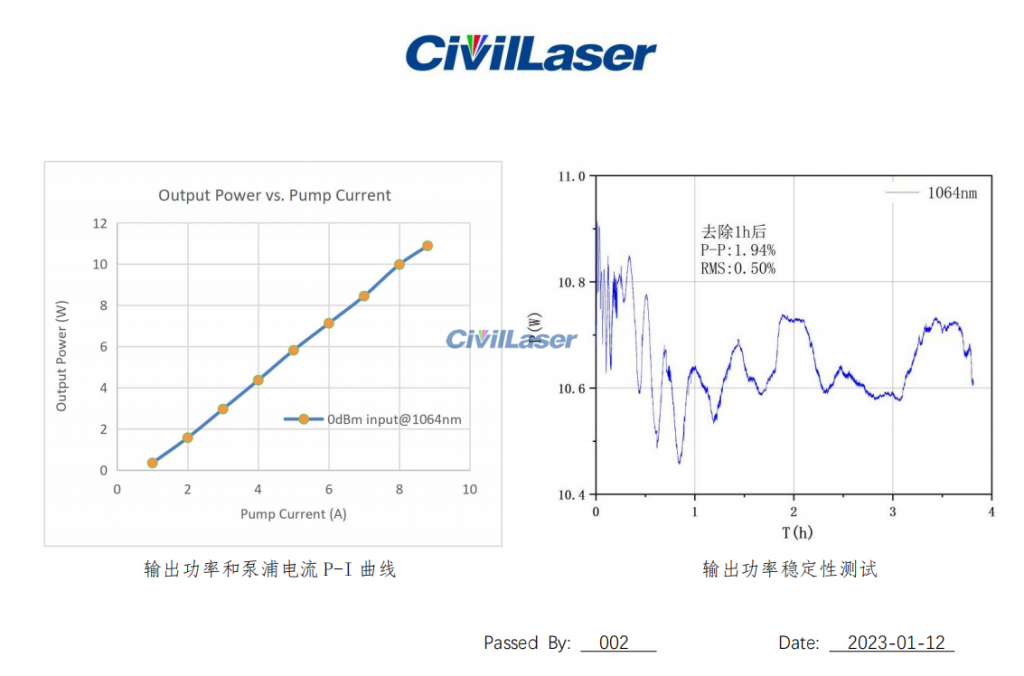

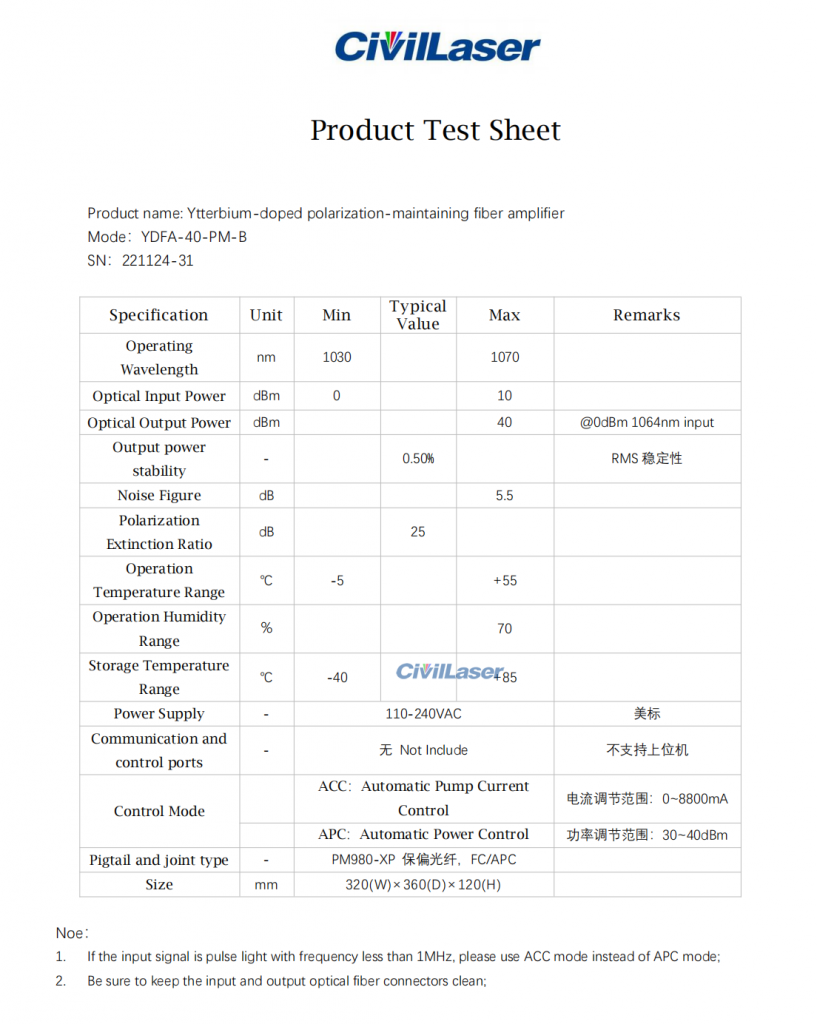

YDFA’s test report.
