QL80R4SX-S 808nm 300mW Infrared Laser Diode QSI IR LD TO-18 5.6mm

QL80R4SX-S 808nm 300mW Infrared Laser Diode QSI IR LD TO-18 5.6mm

[Features]
808nm infrared laser.
CW laser(Continuous wave).
Multi transvers / TE mode laser.
5.6mm packages.

[Application]
Solid state laser pumping.
Medical.
Distance senor.

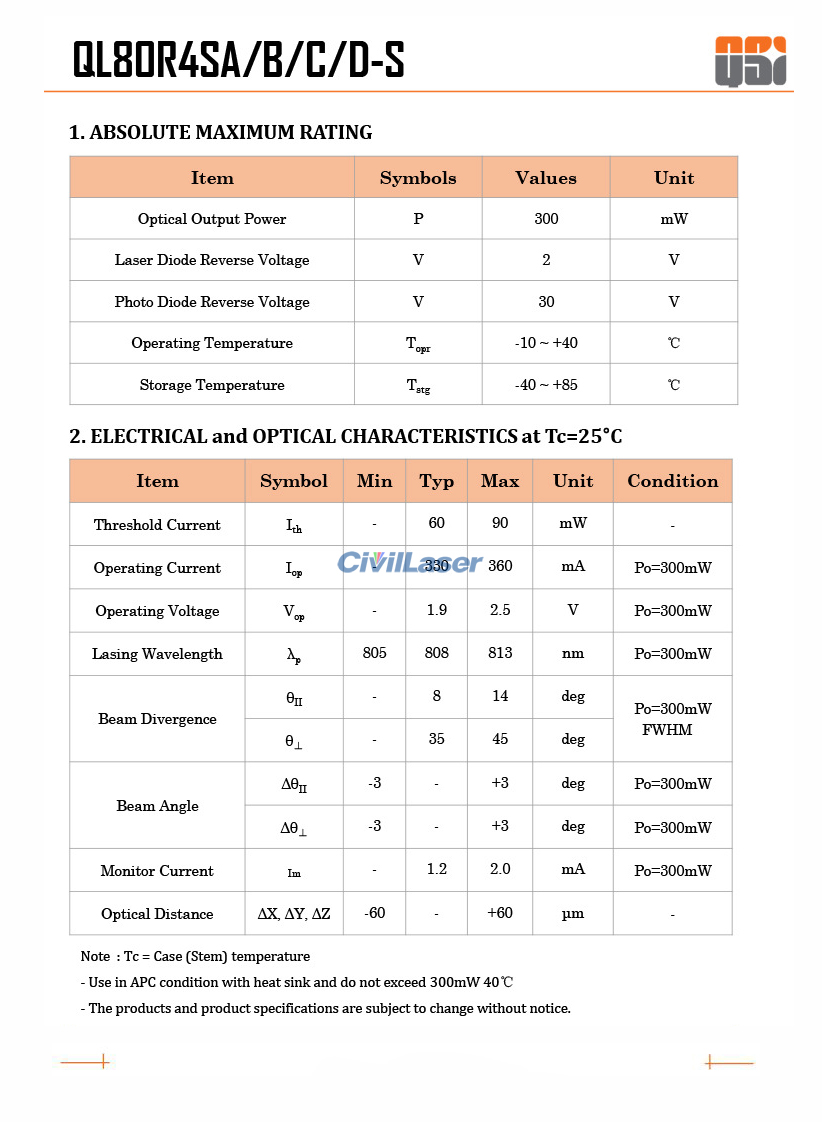

[Specification]
Product Name: Laser Diode
Model: QL80R4SX-S
Wavelength: 808nm
Output Power: 300mW
Laser Diode Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Operating Current: 330mA
Operating Voltage: 1.9V
Operating Temperature: -10~+40℃
Storage Temperature: -40~+85℃

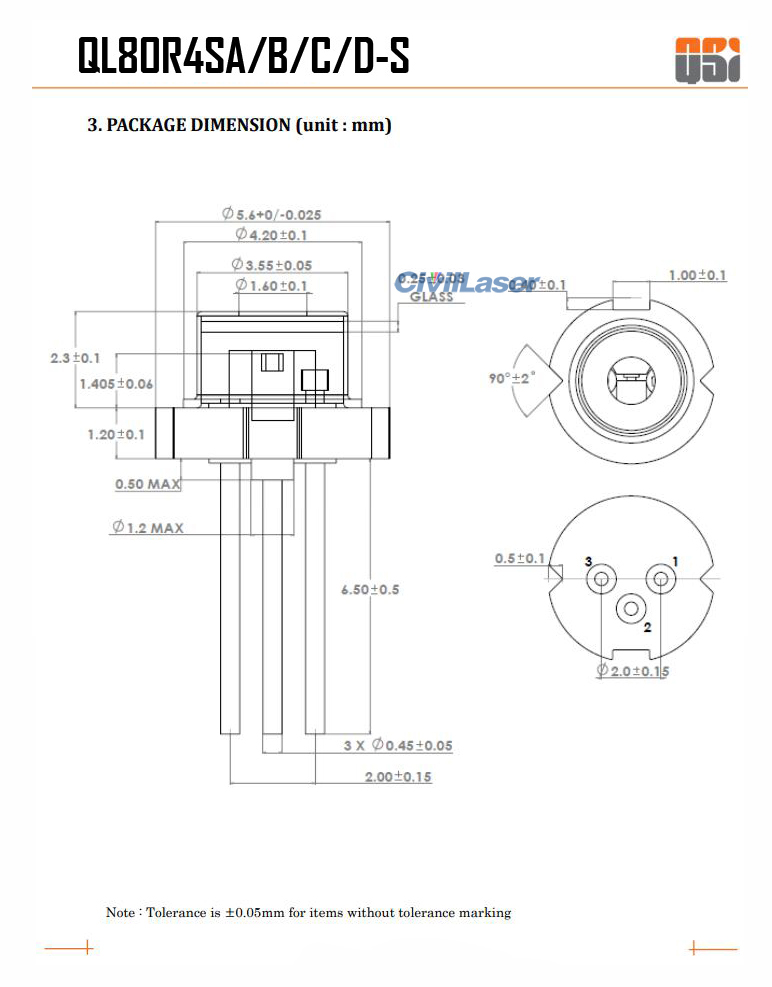

Package: TO18 (Φ5.6mm)
