4-Pins Laser Diode Test Socket High Precision Diode Test Stand

4-Pins Laser Diode Test Socket High Precision Diode Test Stand

[Features]
1. The inner hole of the pin is a through hole, and the length of the laser diode to be tested can be universal.
2. The pins are made of gold-plated copper tubes, low resistance, not easy to oxidize, long service life.
3. The main material is high purity, high temperature resistant (110 C) insulation plastic, good insulation between pins, high reliability of test results.

[Applications]
1. Laser diode test
2. BOSA, TOSA, ROSA coaxial package and finished product testing

[Specification]
Product Name: 4-pins Laser Diode Test Socket

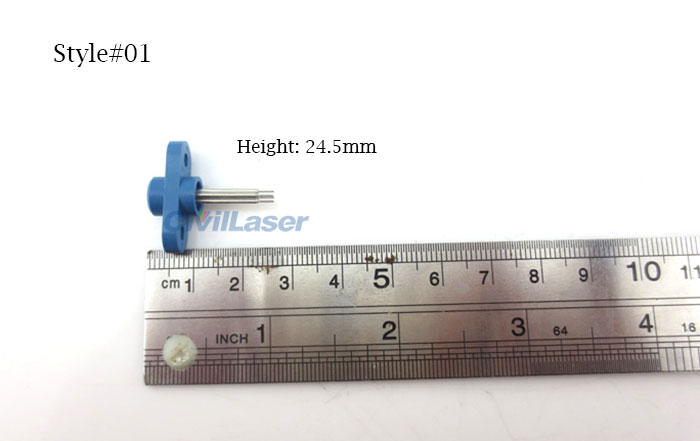

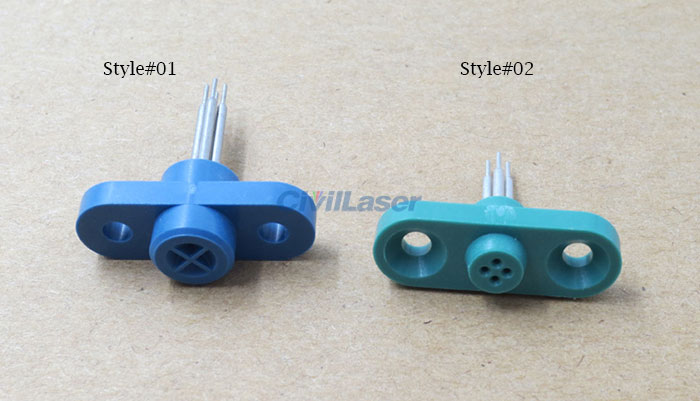

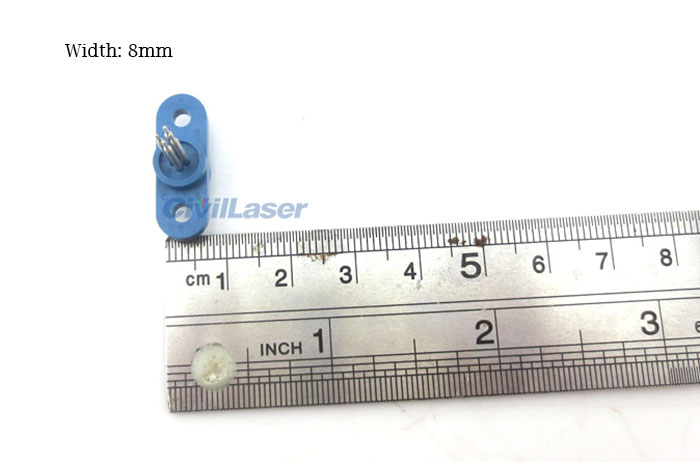

Style#01 Size: 23*8*24.5mm
Style#02 Size: 23*8*13.5mm
