Home :: Laser Module(Dot/Line/Cross..) :: Red Laser Module Dot :: 638nm 100mW Red Single-mode Laser Diode Module Dot Module 12x40mm

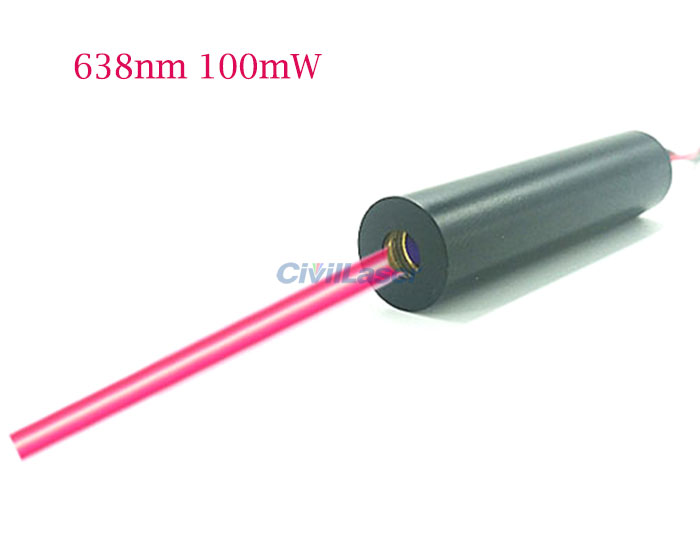

638nm 100mW Red Single-mode Laser Diode Module Dot Module 12x40mm

Red Laser Module Dot

Product 26/99

Return to the Product List

638nm 100mW Red Single-mode Laser Diode Module Dot Module 12x40mm

larger image

Starting at: $36.00

Please Choose:

Power Supply

Laser Module Holder

Add to Cart:
Min: 2

638nm 100mW Red Single-mode Laser Diode Module Dot Module 12x40mm

[Specifications]
Wavelength: 638nm
Output Power: <100mW
Laser Safety: Class ⅢA
Circuit Mode: CW
Spot Size: <6*10mm at 10 meters
Divergence Angle: <0.7mard
Lens: Glass collimator
Driver Circuit: APC
Operating Voltage: 2.8~3.5V
Operating Current: <200mA
Operating Temperature: -10℃~+50℃
Storage Temperature: -40℃~+85℃
Housing Material: Aluminum
Mean Time to Failure: >8000H
Size: 12*40mm(Diameter*Length)
