650nm 500mw Red Laser Diode AL650T500 C-mount

Product 8/31

 Previous
 Return to the Product List
 Next

$196.00

Add to Cart:
Min:  10

650nm 500mw Red Laser Diode  C-mount


[Specifications]
Output Wavelength: 650nm

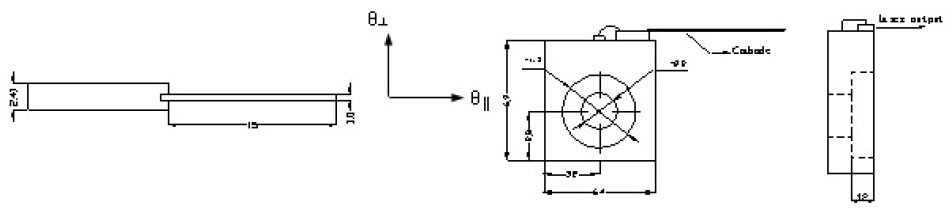

Package Type: C-mount
Module:  AL650T500-C
Output power: 500mW

Note:
If there are any product problems with this laser diode within 3 days of receiving it, you can return it for a full refund or exchange new products.









Absolute Maximum Ratings

(Tc=25℃)

Parameter Symbols Ratings Units
Optical Output Po 500 mW
Reverse Voltage Laser Vr 2.2 V
Operating Temperature Topr -10~+70 ℃
Storage Temperature Tstg -40~+85 ℃


Electrical and optical Characteristics

(Tc=25℃)

Parameter Symbols Conditions Typ Max Units
Peak Wavelength λP Po=500mW 655 660 nm
Threshold Current Ith - 500 380 mA
Operating Current Iop Po=500mW 500 850 mA
Operating Voltage Vop Po=500mW 2.1 3.0 V
Beam Divergence Parallel Qh(θ//) Po=500mW 9.5 12 °(deg.)
Beam Divergence Perpendicular Qv(θŠ¥) Po=500mW 17 22 °(deg.)
Emission point accuracy –³x–³y–³z Po=500mW - +80 um
