405nm 300mW Fiber Coupled Laser Blue-Violet Laser Source

405nm 300mW Fiber Coupled Laser Blue-Violet Laser Source

[Specifications]
Product Name: 405nm Blue-Violet Fiber Coupled Laser
Lead Time: 7~15 workingdays! Custom product available!
Output Wavelength: 405(+/-5) nm
Output Power: 300mW
Operating mode: CW or Modulation
Power stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <1 minute
MTTF(mean time to failure): 10,000 hrs
Fiber Type: Multi-mode fiber/MM fiber
Fiber Core Diameter: 100μm/200μm/400μm/600μm/800μm/1000μm (Choose)
Fiber Numerical Aperture:0.22NA(100μm~400μm)/0.37NA(600μm~1000μm)
Fiber Interface(Output): FC/PC, FC/APC, SMA905 (Choose)
Fiber Length: 1m/2m/3m (Choose)
Laser Head Dimension: Near 100(L)*40(W)*50(H)mm3 (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30kHz Analog or TTL
Warranty: 1 Year

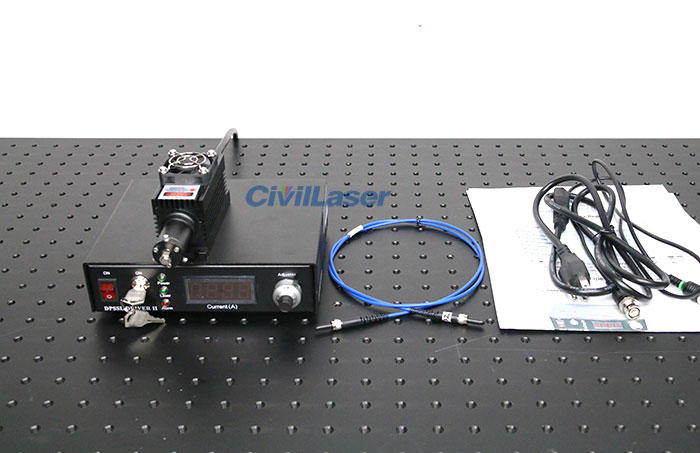

[Package include]
1 x 405nm Laser head
1 x Laser power supply
1 x Fiber

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.
          For example, the 3W laser's actual output power of fiber coupled laser is >2.4W.
