650nm 100mw Red Laser Diode AL650T100-TO18

Product 2/31

 Previous
 Return to the Product List
 Next

$43.00

Add to Cart:


650nm 100mw Red Laser Diode  AL650T100-TO18

[Specifications]
Output Wavelength: 650±10nm

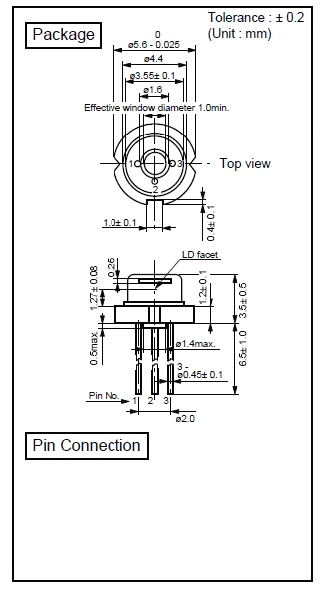

Package Type: TO-18 (φ5.6mm)
Module:  AL650T100-TO18
Output power: 100mW CW

[Note]
If there are any product problems with this laser diode within 3 days of receiving it, you can return it for a full refund or exchange new products.







Absolute Maximum Ratings

(Tc=25℃)

Parameter Symbols Ratings Units
Optical Output CW Po 100 mW
Reverse Voltage Laser Vr 2.2 V
Operating Temperature Topr -10~+70 ℃
Storage Temperature Tstg -40~+85 ℃


Electrical and optical Characteristics

(Tc=25℃)

Parameter Symbols Conditions Min Typ Max Units
Peak Wavelength λP Po=100mW 650 655 660 nm
Threshold Current Ith -  - 40 60 mA
Operating Current Iop Po=100mW  - 160 180 mA
Operating Voltage Vop Po=100mW  - 2.3 2.8 V
Slop Efficiency  η - 0.6 0.8 1.0 mW/mA
Beam Divergence Parallel Qh(θ//) Po=100mW 7 9.5 12 °(deg.)
Beam Divergence Perpendicular Qv(θŠ¥) Po=100mW 15 19 22 °(deg.)
Emission point accuracy –³x–³y–³z Po=100mW -80 0 +80 um
