Infrared laser 1064nm 5W DPSS Laser Invisible laser source

Infrared laser 1064nm 5W DPSS Laser Invisible laser source



Miniature size

Collimated straight beam

Easy use & maintenance free

Longlife operation

High efficiency

High reliability



Product Name: 1064nm  IR DPSS Laser

Lead Time: 1~4 weeks! Custom product available!

Wavelength: 1064nm±1nm
Output Power: 5W
Spatial Mode: Near TEM00
Operation Mode: CW or Modulation
Polarization: 100:1
Pointing Stability: <0.05mrad
Beam Size: <3mm
Beam Divergence(full angle): <1.5 mrad
Beam Height: Near 68.2mm
Beam Quality(M²): <2
Power Stability: <±3% per 2 hours
Temperature Stabilizing: TEC
Warm Up Time: <10 minutes
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
Modulation: 0~30khz Analog or TTL
MTTF(mean time to failure): 10,000 hrs

Laser Head Dimension: Near 200(L)x99(W)x94(H)mm³ (Click here find detail)
Power Supply: Split type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Split Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)

Warranty: 1 Year


Thermal printing

Material Inspection

Scanning Biochemistry

Lidar

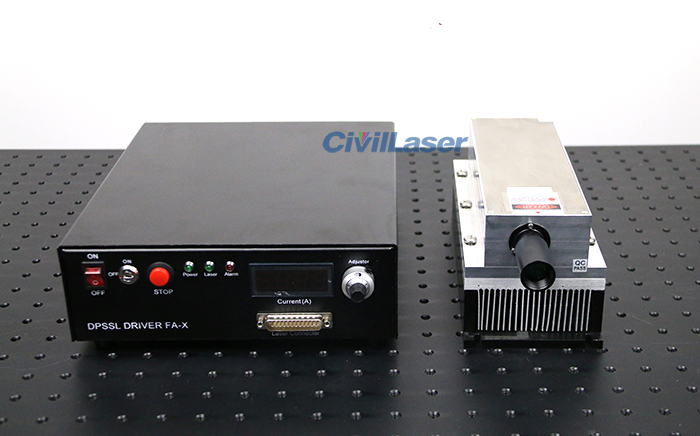

1 x 1064nm IR DPSS Laser

1 x Laser power supply
