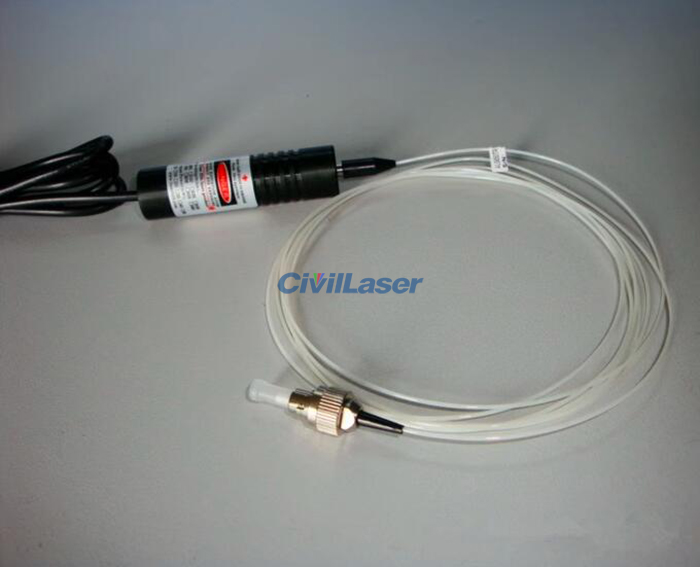

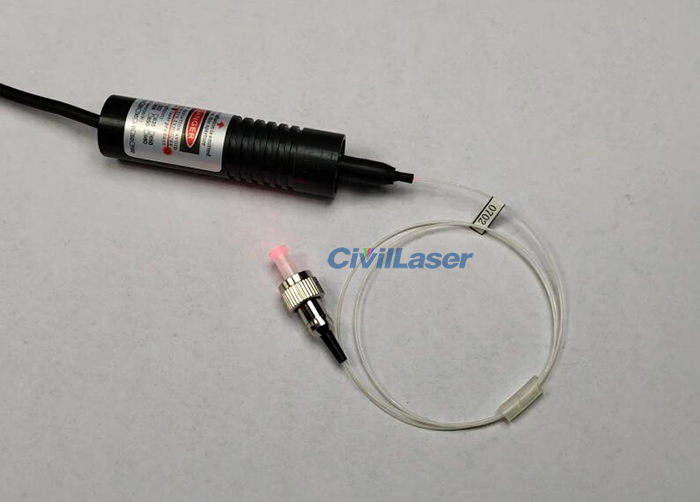

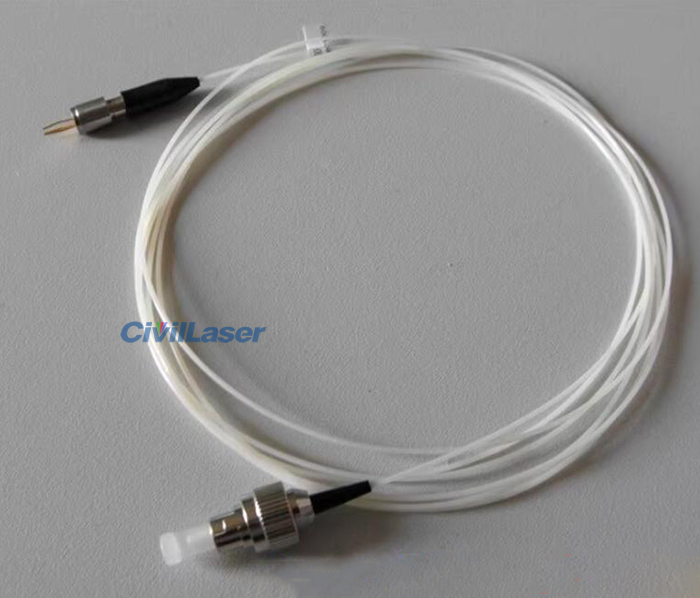

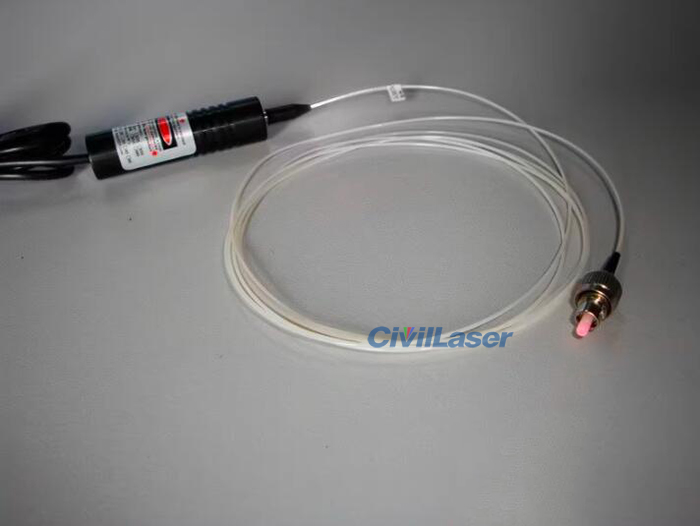

780nm 10mW~30mw Single-mode Fiber Coupled Laser FC Interface IR Laser Source

780nm 10mW~30mW Single-mode Fiber Coupled Laser FC Interface IR Laser Source

Because of its flexible characteristics, the optical fiber can make the laser light emitting end move flexibly and freely, making the use of the laser more convenient.
The laser beam can be shaped so that the mode of the beam is better and the Gauss distribution is distributed.
It is also possible to integrate several laser beams to increase the power of the laser.

[Applications]
1. Industrial Marker
2. Equipment and equipment
3. Teaching experiment light source
4. Laser medical instrument
5. Stage lighting
6. Demonstration with a laser light source.

[Specifications]
Wavelength: 780nm
Output Power: 10mW / 20mW/30mW (Optional)
Dispersion Angle: 0.6mrad
Optical System: Optically coated glass
Lens: High quality aspherical plastic lens
Fiber Core Diameter: single mode 4.5um
Pigtail Diameter:e: 125um
Fiber diameter: 0.9mm
Injection Numerical Aperture: 0.12
Spot Size: Min.Φ0.5mm (Adjustable)
Fiber Length: 1m
Fiber Material: Quartz Material
Operating Voltage: DC 3V or 5V (Optional)
Working Temperature: -10°C～50°C
Storage Temperature: -40°C～80°C
Dimensions: Φ16mm×60mm

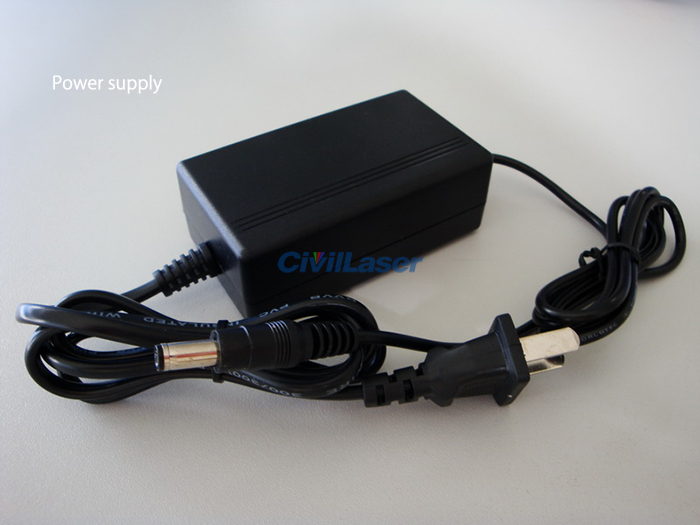

Include: Fiber coupled laser + Power supply
