405nm 120mw Blue Violet Laser Diode SONY AL405T120 TO-18
[Specifications]
Output Wavelength: 405nm(Typ)
Output power: 120mw CW
Package Type: TO-18 φ5.6 with PD
Brand: SONY
Module: AL405T20 TO-18
[Note]
If there are any product problems with this laser diode within 3 days of receiving it, you can return it for a full refund or exchange new products.

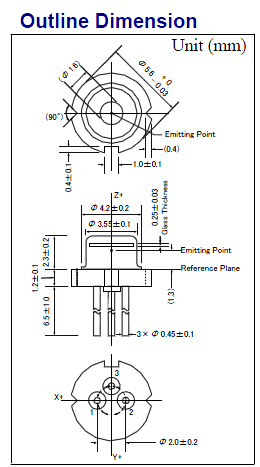

.JPG)
Absolute Maximum Ratings
(Tc=25℃)
| Parameter |
Symbols |
Ratings |
Units |
| Optical Output |
CW |
Po |
140 |
mW |
| LD Reverse Voltage |
Vr(LD) |
5 |
V |
| PD Reverse Voltage |
Vr(PD) |
20 |
V |
| Operating Temperature |
Topr |
-10~+70 |
℃ |
| Storage Temperature |
Tstg |
-40~+85 |
℃ |
Electrical and optical Characteristics
(Tc=25℃)
| Parameter |
Symbols |
Conditions |
Min |
Typ |
Max |
Units |
| Optical Output Power |
Po |
CW |
- |
- |
120 |
mW |
| Peak Wavelength |
λP |
Po=120mW |
400 |
405 |
410 |
nm |
| Threshold Current |
Ith |
CW |
- |
35 |
50 |
mA |
| Operating Current |
Iop |
Po=120mW |
- |
120 |
150 |
mA |
| Slop Efficiency |
η |
CW |
1.2 |
1.4 |
1.9 |
W/A |
| Operating Voltage |
Vop |
Po=120mW |
- |
4.8 |
5.5 |
V |
| Beam Divergence |
Perpendicular |
Qv(θŠ¥) |
Po=120mW |
15.0 |
19.5 |
23.0 |
°(deg.) |
| Beam Divergence |
Parallel |
Qh(θ//) |
Po=120mW |
7 |
9 |
12 |
°(deg.) |
| Off Axis Angle |
Perpendicular |
dQv(–³Î¸Š¥) |
Po=120mW |
-2.5 |
- |
2.5 |
°(deg.) |
| Off Axis Angle |
Parallel |
dQh(–³Î¸//) |
Po=120mW |
-2.0 |
- |
2.0 |
°(deg.) |
| Monitor Current |
Im |
Po=120mW |
0.2 |
0.4 |
0.7 |
mA |
Note:
It's a second-hand laser diode.
