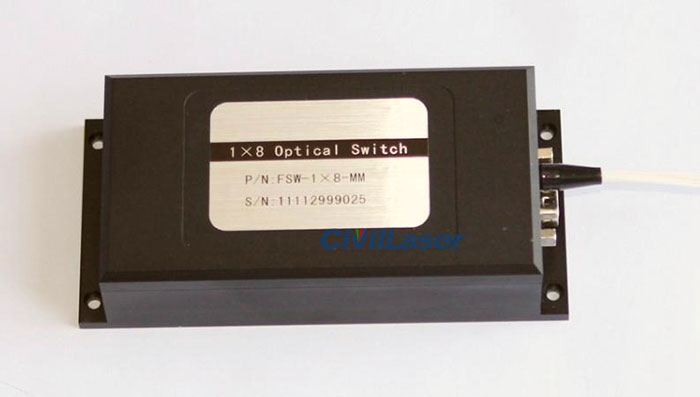

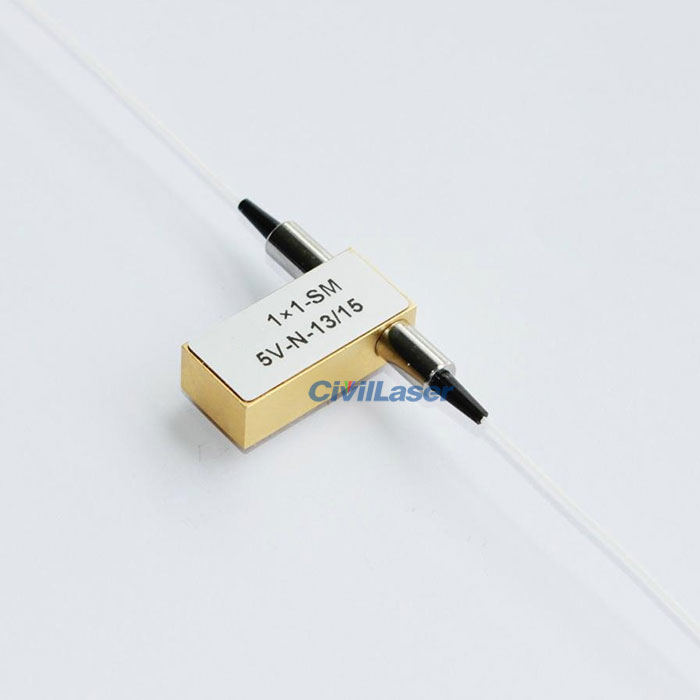

1×N Mechanical Optical Switch Multi-channel Optical Switch Module
Optical fiber 1xN multi-channel optical switch module is a kind of functional device with switching optical path, in optical fiber transmission system, for multi-channel optical monitoring, LAN, multi-light source, detector exchange and Ethernet Protection conversion.
In the optical fiber test system, it is used for fiber and fiber component testing, network testing, field fiber cable testing, and fiber-optic sensor multi-point monitoring systems.
[Features]
1, Multichannel Options
2, Remote monitoring
[Applications]
1. Optic fiber network
2. Remote optical network monitoring
3. Fiber optic device testing
[Specifications]
|
Parameter index
|
Unit
|
Typical value
|
|
Channel number
|
-
|
1×2、1×4、1×8
|
|
Wavelength range
|
nm
|
1250~1650
|
|
Insertion loss
|
dB
|
≤1.0
|
|
PDL
|
dB
|
≤0.2
|
|
Repeatability
|
dB
|
<±0.02
|
|
Channel spacing
|
dB
|
≥55
|
|
Return loss
|
dB
|
≥50
|
|
Fiber type
|
-
|
Corning SMF-28e
|
|
Channel switching time
|
ms
|
≤10
|
|
Optical power tolerance
|
mW
|
500
|
|
Life
|
Cycles
|
>107
|
|
Working temperature range
|
°C
|
-5~+45
|
|
Storage temperature range
|
°C
|
-20~+60
|
|
Relative humidity
|
%
|
20~90(Non-condensation)
|
|
Power Supply and Consumption
|
-
|
AC 220V, 20W (Desktop type)
|
DC 5V, 2A (Module type)
|
|
Communication protocols and interfaces (optional)
|
-
|
RS232/USB/LAN
|
|
Size(L×W×H)
|
mm
|

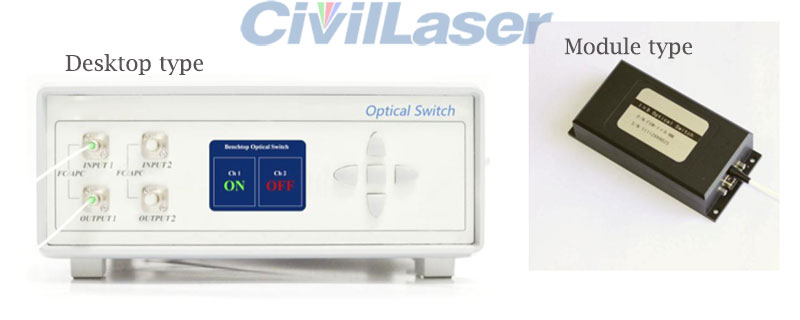

Desktop 360(W)×250(D)×120(H)
|
Module 135×64×32
|
Ordering information(Please send the following parameters data to us after you placed the order):
|
Channel number
|
Fiber type
|
Connector form
|
Package
|
|
2=1×2channel

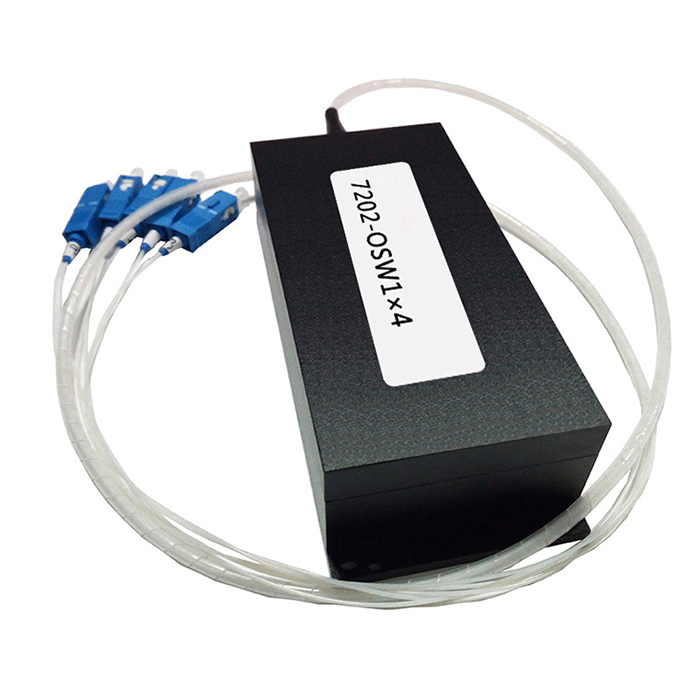

4=1×4 channel
8=1×8 channel
|
1=SMF Fiber
|
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
|
B= Desktop
M=Module
|
