Customize Focusing system Beam expander Collimator for CivilLasers Laser

Product 13/36

 Previous
 Return to the Product List
 Next

Starting at: $153.00  $109.00
Save: 29% off

Please Choose:





Add to Cart:


Customize Focusing system Beam expander  Collimator for CivilLasers Laser

Usually The focal length of the  DPSS Laser/Semiconductor laser is fixed.

If you need to be able to adjust the size of the spot, you can add this custom function.



Model Interface Focal Length Caliber Size Adjustment Mode Antireflection Coating Wavelength

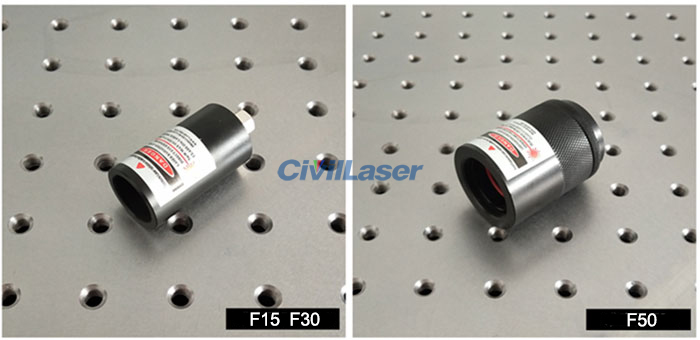

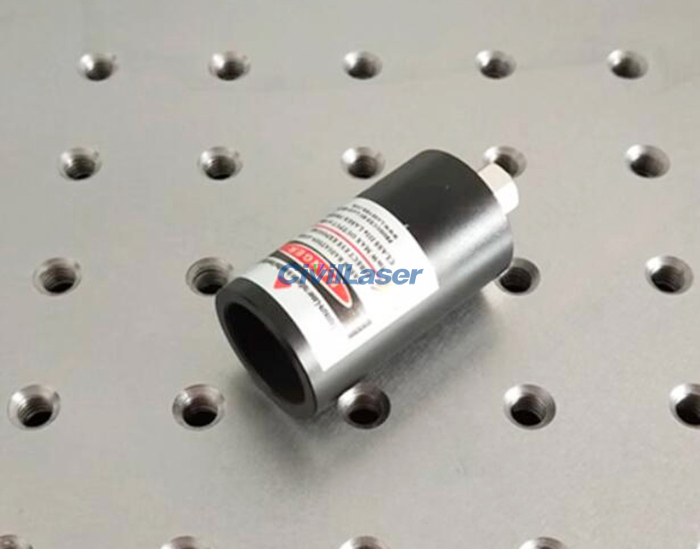

F15 SMA905 15mm, 16mm, 18mm, 25.4mm, 30mm 12.7mm Φ23*40mm The aluminum piece with the lens inside the lens barrel has tweezers eye, which can be adjusted by the tweezers to adjust the collimation. 400~700nm, 700~1100nm, 98%
F30 SMA905 15mm, 16mm, 18mm, 25.4mm, 30mm 12.7mm Φ23*40mm The aluminum piece with the lens inside the lens barrel has tweezers eye, which can be adjusted by the tweezers to adjust the collimation. 400~700nm, 700~1100nm, 98%
F50 SMA905 50mm 30mm Φ39*60mm External threaded cylinder, direct manual adjustment of collimation or focus. 400~700nm, 650~1050nm, 98%
collimator

collimator




Use cases video:

Reference picture:

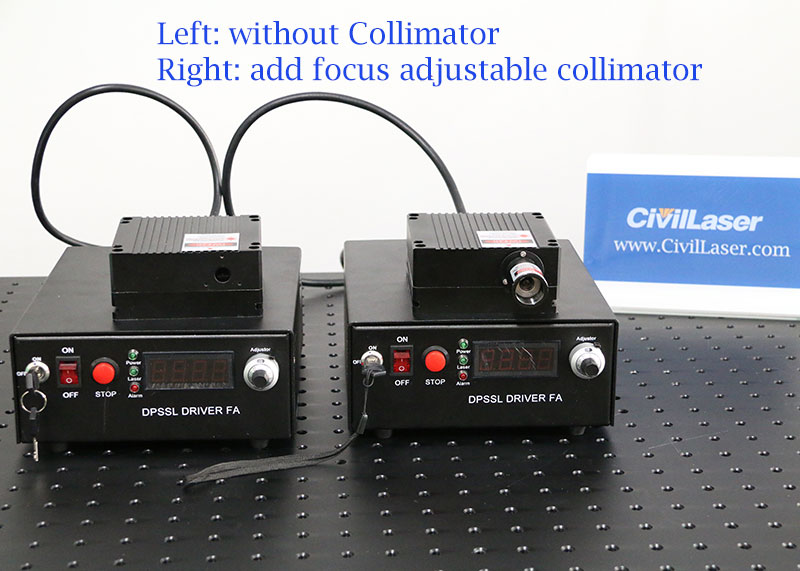

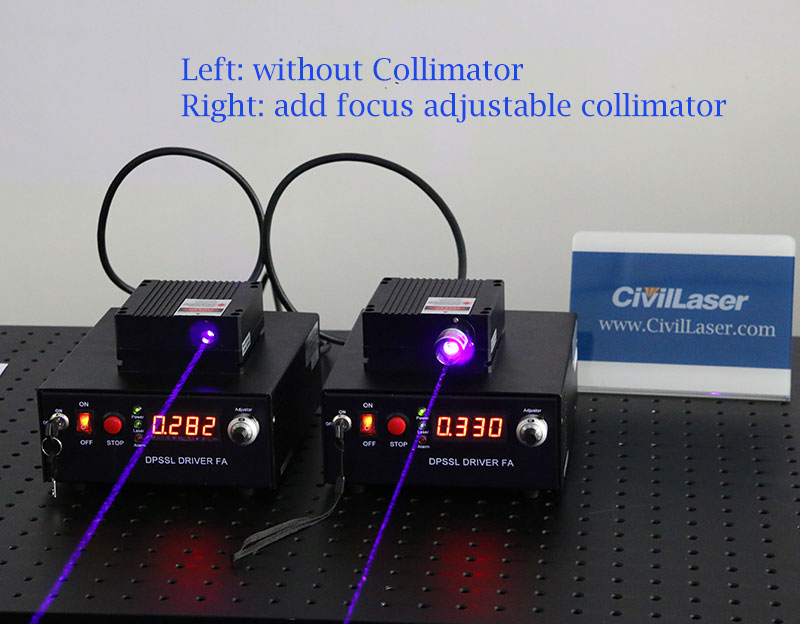

laser Collimator

laser Beam expander

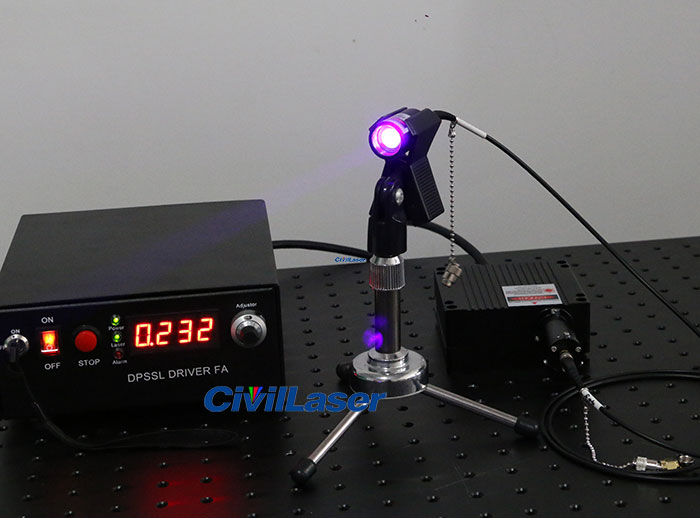

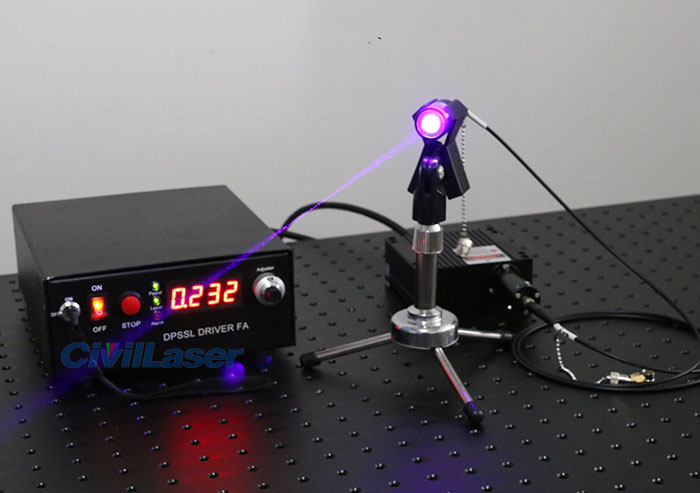

laser focus adjustable

laser collimator

laser collimator







Customers who bought this product also purchased...

Powell Lens 520nm Green Line Laser Beam Adjustable Focus Positioning Light
Powell Lens 520nm Green Line Laser Beam ...
More details

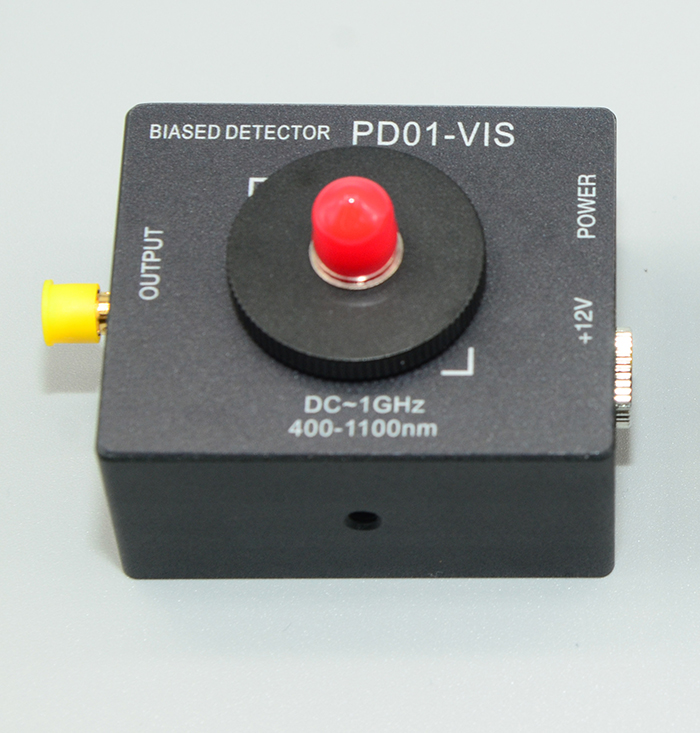

400~1000nm Si Photo Detector High-speed Photodetector Module PD01-VIS
