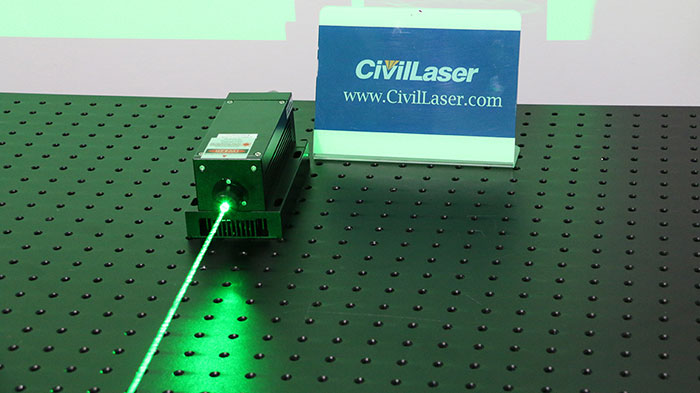

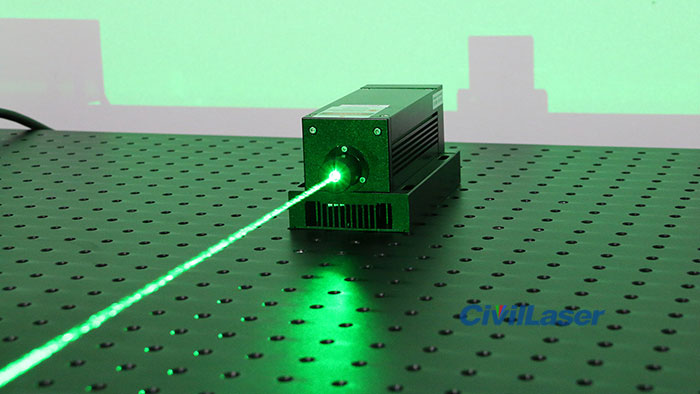

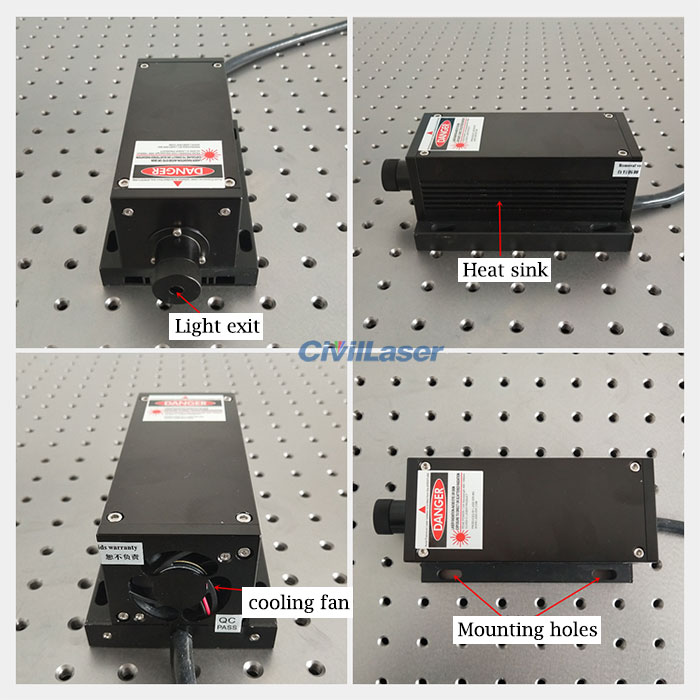

532nm Passively Q-Switched Laser Pulsed laser Adjustable Repetition Frequency
[Features]
1. Passively Q-switched
2. Adjustable repetition frequency
[Specification]
| Model |
Model#01-532HQ |
Model#02-532HXQ |
Model#03-532HYQ |
| Wavelength |
532nm |
532nm |
532nm |
| Spatial Mode |
TEM00 |
TEM00 |
TEM00 |
| Average Output Power |
30~100mW |
near 150mW |
near 200mW |
| Single Pulse Energy |
3~10uJ (random) |
default near 10uJ (1~20uJ customizable) |
default near 15uJ~20uJ |
| Pulse Width |
10~50ns (random) |
default near 15ns (10~20ns customizable) |
default near 20ns (15~30ns customizable) |
| Peak Power |
60W~1KW |
300W~2KW |
300W~2.6KW |
| Repeat Rate |
near 10KHz |
default near 15KHz (1~50KHz customizable) |
default near 10Khz (1Hz~50KHz customizable) |
| Beam Spot Shape |
Circular, aspect ratio<1.1:1 |
Circular, aspect ratio<1.1:1 |
Circular, aspect ratio<1.1:1 |
| Pointing Stability |
<0.05 mrad |
<0.05 mrad |
<0.05 mrad |
| Beam Diameter（1/e2） |
<2 mm |
<2 mm |
<1.5 mm |
| Beam Divergence |
<1 mrad |
<1 mrad |
<1.5 mrad |
| Power Stability |
<±3% per 2 hrs |
<±3% per 2 hrs |
<±3% per 2 hrs |
| Beam Height |
29mm |
29mm |
29mm |
| Temperature Stabilizing |
TEC |
TEC |
TEC |
| Warm Up Time |
<5 minutes |
<5 minutes |
<5 minutes |
| Beam Quality（M2） |
<2 |
<2 |
<2 |
| Optimum Operating Temperature |
20~30℃ |
20~30℃ |
20~30℃ |
| Storage Temperature |
10~50℃ |
10~50℃ |
10~50℃ |
| MTTF |
10,000 hrs |
10,000 hrs |
10,000 hrs |

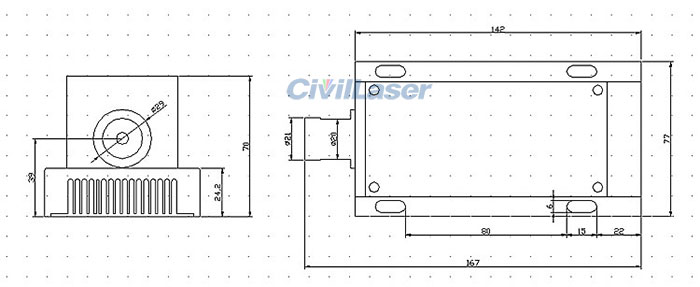

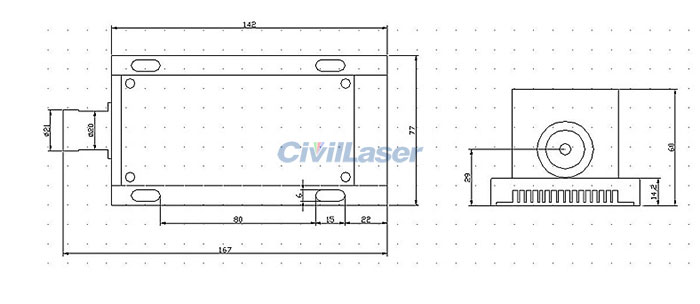

| Laser Head Size |
155(L)x77(W)x60(H)mm3 |
167(L)x77(W)x70(H)mm3 |
155(L)x77(W)x60(H)mm3 |

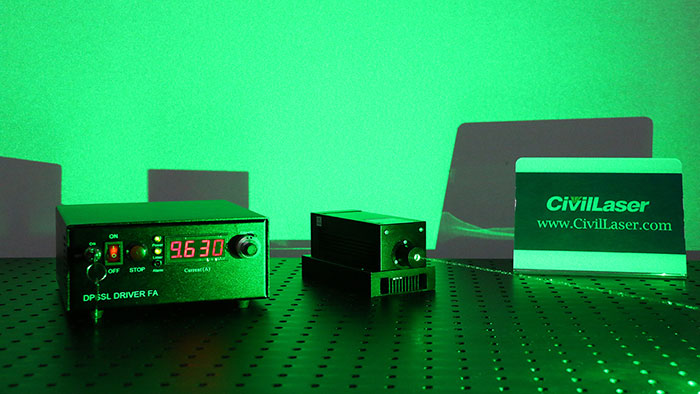

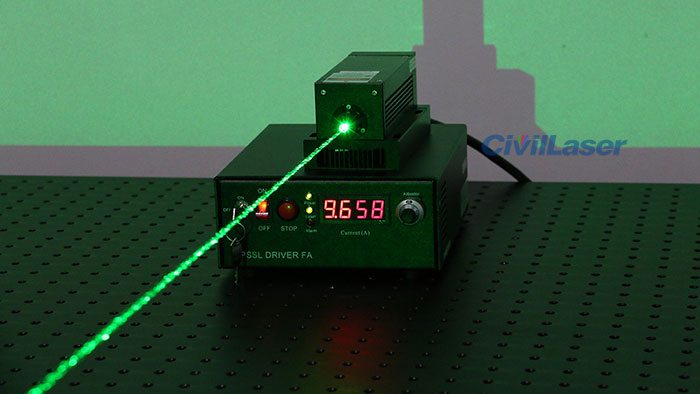

| Power Supply |
178(W)x197(D)x84(H) mm3 |
178(W)x197(D)x84(H) mm3 |
178(W)x197(D)x84(H) mm3 |
| Note |
The average power of this model is 30~100mw, single pulse energy, pulse width and repetition frequency affect each other. |
The average power of this type of Q-switched laser is about 150mw. The two parameters of single pulse energy and repetition frequency affect each other. |
The average power of this model Q-switched laser is about 200mw. The two parameters of single pulse energy and repetition frequency affect each other. |
[Main parameters explanation]
(1) Repeat rate
The max repeat rate is fixed.
1 ~ max repeat rate can be adjusted by Exteranl input signal.
(2) Single pulse energy
It can be customized according to your needs.
It is a fixed value after production is completed.
(3) Pulse width
It can be customized according to your needs.
It is a fixed value after production is completed.
(4)Average output power
Average output power = [Repeat rate]*[Single pulse energy]
e.g.
Repeat Rate: 1~10KHz
Single Pulse Energy: near 20uJ
Average output power = [Repeat rate]*[Single pulse energy] = 10*1000*20 = 200000uJ (200mW)
(5)Peak Power
Peak Power = [Single pulse energy]/[Pulse Width]
e.g.
Pulse Width: near 15ns
Single Pulse Energy: near 20uJ
Peak Power = [Single pulse energy]/[Pulse Width] = 20uJ/15ns = 20*10^(-6) / 15 * 10^(-9) = 20 / (15*0.001) = 1333W
