650nm 5mW Seiko laser 0.15mm diameter Very fine line width Red laser module

650nm 5mW Seiko laser 0.15mm diameter Very fine line width Red laser module

Characteristic：

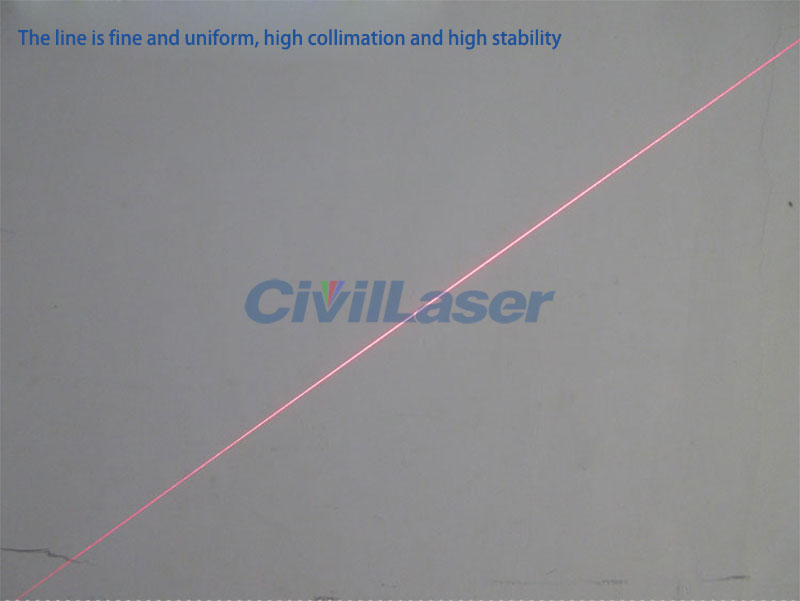

Ultra small round spot, superfine red line, uniform brightness；
New German import tube + optical coating glass lens group, high light pass rate, low loss energy, can continuously work for 24 hours;
The fan angle can be customized from 5degree ~110 degree.

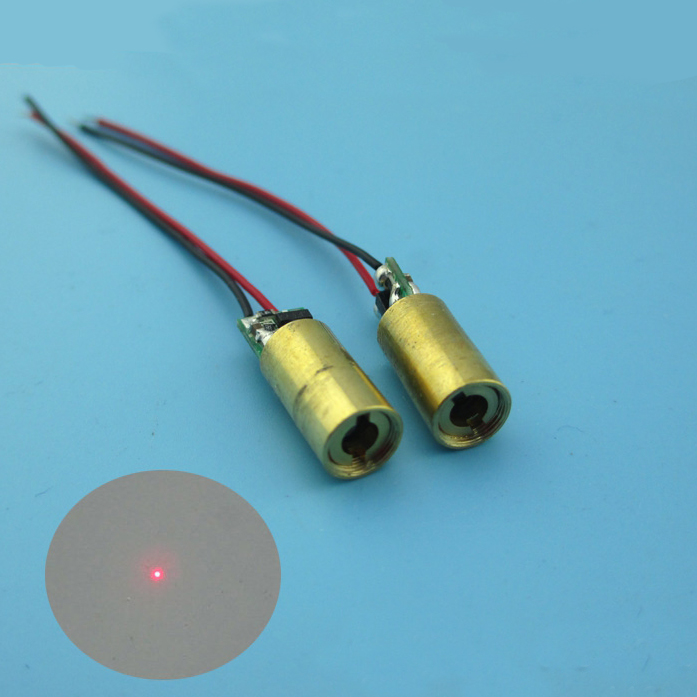

Dot shape:
In the daytime, the range is 0-200 meters;
Outside the day, the range is 0-80 meters;
In the dark environment, the range is 0-500 meters.

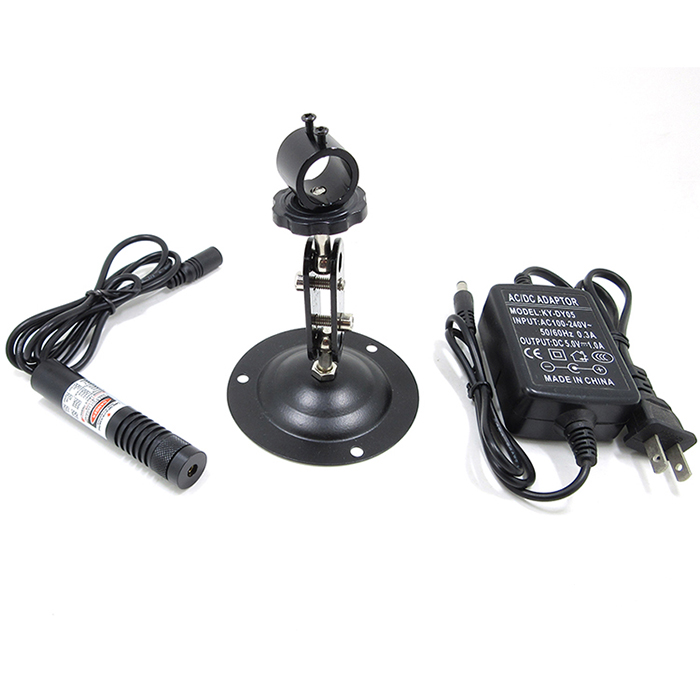

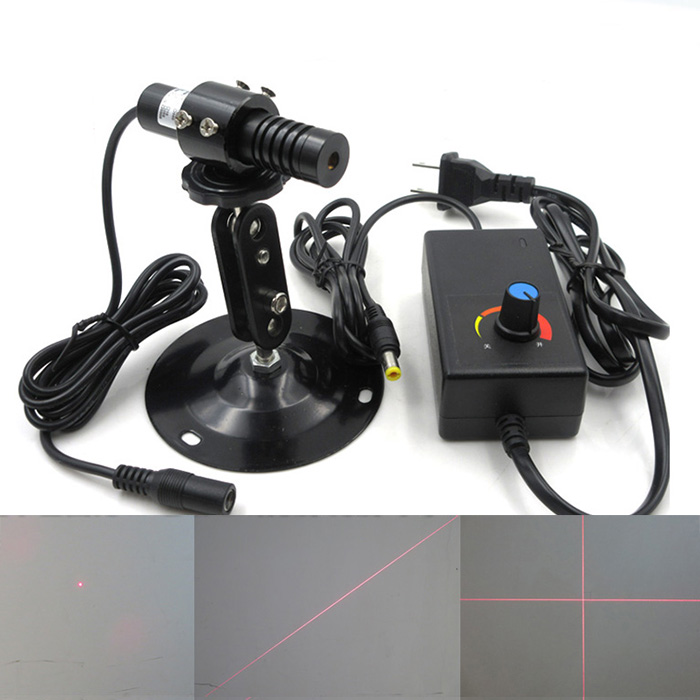

Package list:

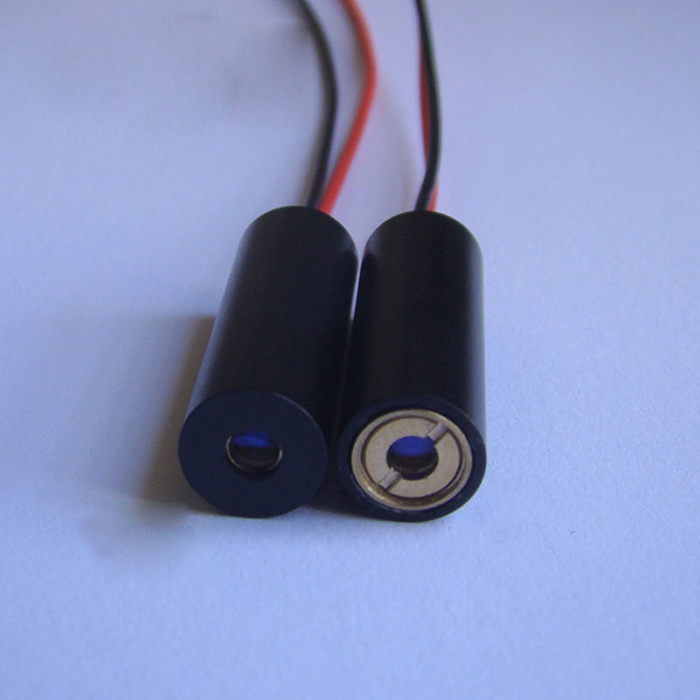

1. Red laser module;
2. Power supply;
3. Laser module holder.

Line shape:
The indoor working environment can reach 5 meters.

Cross-hair:
In the indoor environment can reach 3 meters (horizontal and vertical lines cross were 3 meters long).

Wavelength: 650nm red light
Output Power: 5mW (customizable)

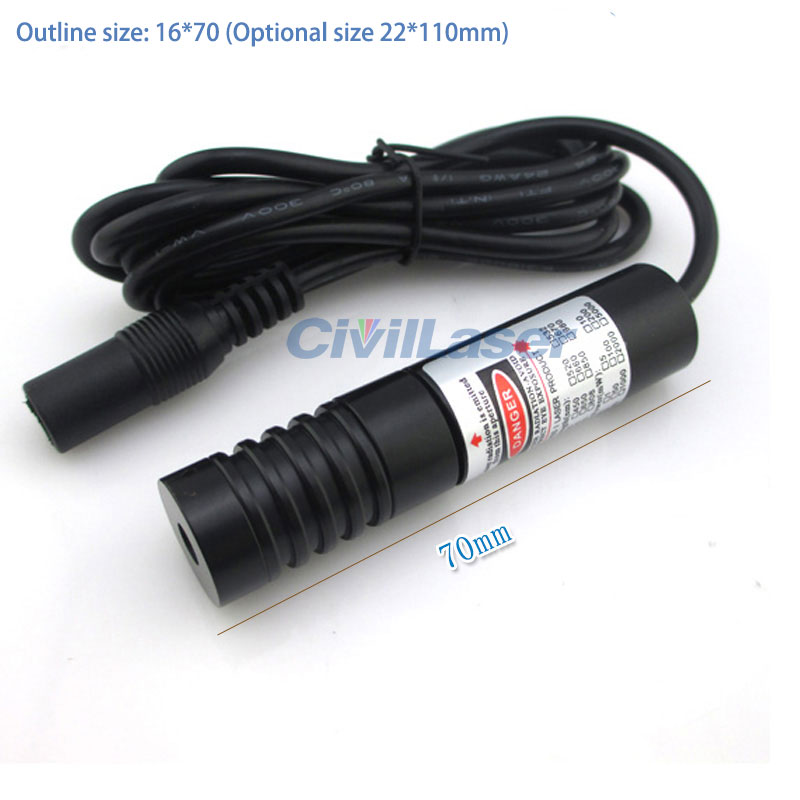

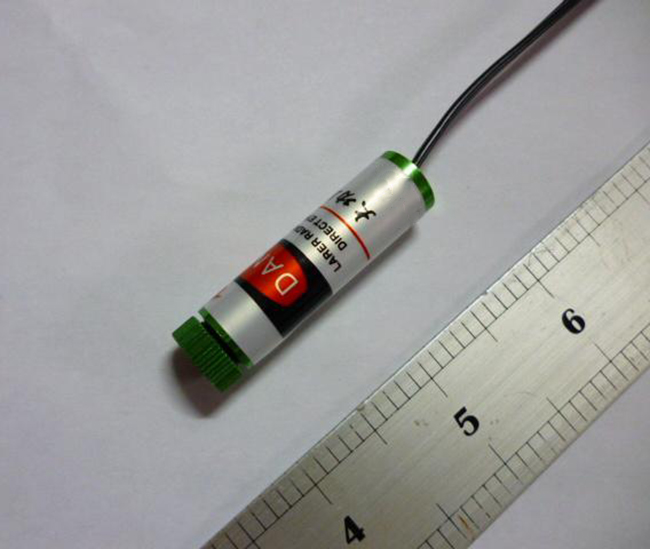

Size: 16*70mm (optional size: 22*110mm)
Power supply voltage: DC 2.8V to 5.2V (customizable)
Working current: <50mA

Dot size / Line width:
Adjustable spot / line width at 0.1 meters -0.3 meters: 0.15mm
Adjustable spot / line width at 0.3 meters -0.5 meters: 0.25mm

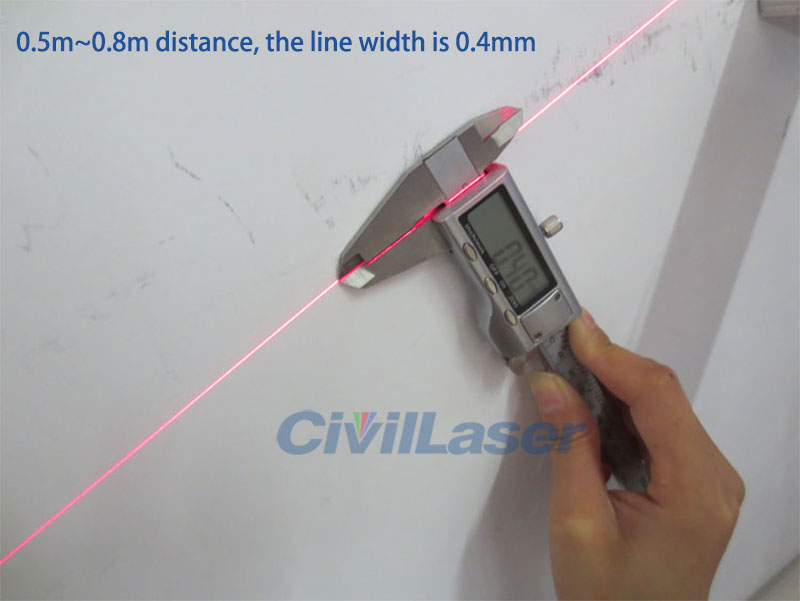

Adjustable spot / line width at 0.5 meters -0.8 meters: 0.4mm
Adjustable spot / line width at 0.8 meters -1 meters: 0.5mm
Adjustable spot / line width at 1 meters -1.5 meters: 0.6mm
Adjustable spot / line width at 1.5 meters -2 meters: 0.8mm
Adjustable spot / line width at 2 meters -2.5 meters: 0.9mm
Adjustable spot / line width at 2.5 meters -3 meters: 1mm
