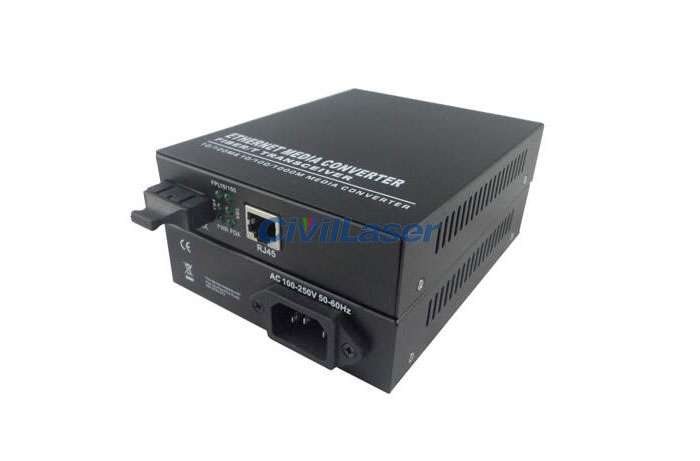

1000M Dual Fiber Media Converter Adaptive Fiber Transceiver
The 10/100/1000M dual fiber media converter comes with two fibers, one for sending signal, the other for receiving. It is designed to serve as fiber to Ethernet converter or Ethernet to fiber converter, thus realizing the conversion between network electric signals and optical signals.

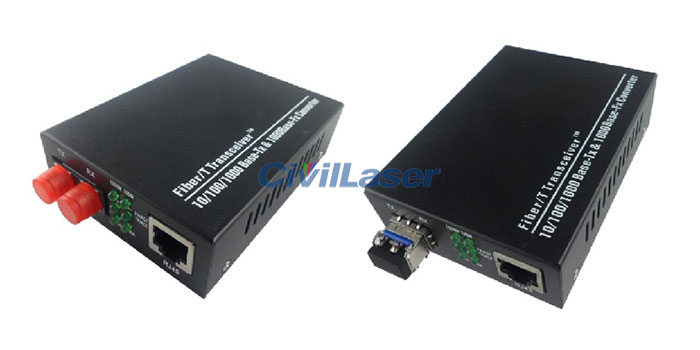

This range of dual fiber media converter is available with two fiber ports and an electrical port. SC, TC, ST or SFP module connector can be installed on the fiber interfaces, while the electrical interface is usually RJ45 connector. To suit the demands of different types of fibers, the fiber converter is available in both single mode and multimode versions.
Our dual fiber media converter is completely in conformity with IEEE 802.3 10 Base-T, IEEE 802.3u 100Base-TX, IEEE 802.2ab 1000Base-TX and IEEE 802.3z 1000Base-FX standards. The product achieves automatic negotiation for half and full duplex working modes. With high bandwidth, high speed and automatic adjustment, the fiber media converter is widely used in optical network systems.
Benefits of the Dual Fiber Media Converter
1. This series of fiber optic media converter is compliant with IEEE 802.3 10 Base-T, IEEE 802.3u 100Base-TX, IEEE 802.2ab 1000Base-TX and IEEE 802.3z 1000Base-FX standards
2. Auto negotiation for half/full duplex working modes
3. Auto negotiation for 10/100/1000Mbps data rate
4. Twisted-pair connector: NODE/HUB or SWITCH (5 class UTP)
5. The dual fiber media converter supports automatic identification of MDI/MDI-X cross-line
6. High-performance 1.25Gbps memory bandwidth
7. This fiber optic converter is built in accordance with FCC, 15 CLASS A, RoHS and CE standards
8. Unidirectional transmission with two fibers
9. External and built-in type power supplies are available for options.
Applications of the Dual Fiber Media Converter
1. Suitable for circumstances in need of network expansion
2. Broadband metropolitan area network
3. Telecommunication network, CATV and other data network operator
4. Finance, government, petroleum, electricity, railways, public security, transportation and education industries
5. Multimedia transmission and integrated transmission of images, voices and data
6. Distance education, video conferencing, video telephone
7. Security and protection systems
Specifications of the Dual Fiber Media Converter
| Item |
Specifications |
| Industry Standards |
IEEE802.3 10 Base-T standards |
| IEEE802.3u 10/100/1000Base-SX/TX standards |
| IEEE802.1q, IEEE802.1p QoS |
| IEEE802.1d Spanning Tree |
| IEEE 802.3z standards |
| IEEE 802.3ab standards |
| Data Rate |
Electrical Interface: 10/100/1000Mbps |
Optical interface: 1.5Gbps |
| Transmission Mode |
Full duplex or half-duplex (adaptive) |
| Connector |
Electrical interface: RJ-45 |
Optical interface connector: SC/ST/FC/LC |
| LED Indicators |
Power supply, FPL, 10/100, FRX, TRX, FDX. |
| Power Supply |
External |
5V DC 2A |
| Built-in |
AC110-250V/50Hz |
| DC -32~-72V |
| Power Assumption |
≤5W |
| Environmental Parameter |
Working Temperature |
0 ℃ ~ 50 ℃ (32 °F ~ 122 °F ) |
| Storage Temperature |
-40 ℃ ~ 70 ℃ (-40 °F ~ 158 °F ) |
| Humidity |
5%~90% (no condensation) |
| Electrical Interface Twisted Pair |
Five kinds (max. transmission distance:100m) |
| Optical Interface Fiber and Cable |
8.3/125, 8.7/125, 9/125, 10/125μm (transmission distance:20 -120km) |
| 50/125, 62.5/125μm (transmission distance: 2~5km) |
| MTBF |
>50,000hours |

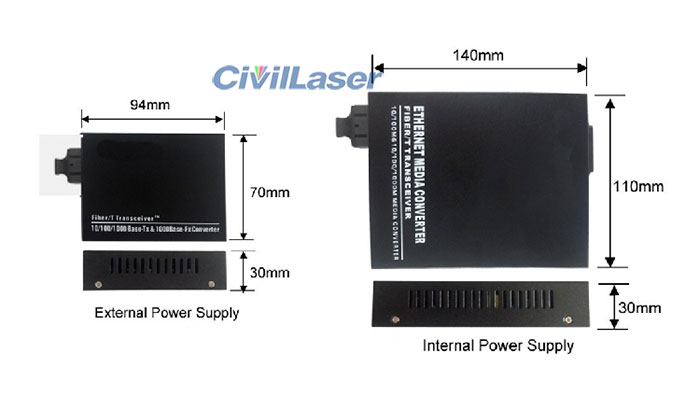

| Product Dimension |
External Power Supply |
94*70*25mm (3.7*2.8*0.98 inch ) |
| Built-in Power Supply |
140*110*30mm (5.5*4.3*1.2 inch ) |
| Card Type |
157*128*31mm (6.2*5.1*1.2 inch ) |
| Gross Weight |
External Power Supply |
0.4 kg |
| Built-in Power Supply |
0.8 kg |
| Card Type |
1.0 kg |
| Radiation Safety Standard |
FCC Part 15, Class A, RoHS and CE Mark |
