100M Dual Fiber Media Converter 10/100M Adaptive Unidirectional Transceiver

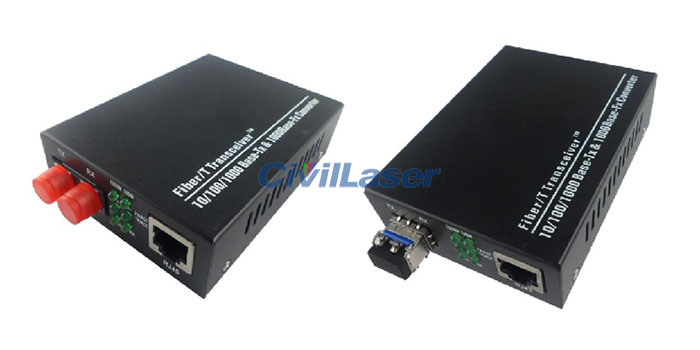

Built to covert network electric signals to optical signals, this range of 10/100M dual fiber media converter uses one fiber to send signals and the other fiber to receive signals. The fiber converter comes with two fiber ports and one electrical port. The fiber interfaces can be set as SC, TC, ST or SFP module connector, while the electrical interface is usually RJ45 connector. Both single mode and multimode fiber media converters are available, so as to suit corresponding types of fibers.
Often seen in optical network systems, our dual fiber media converter is totally compliant with 10Base-T, 100Base-TX, 100Base-FX and IEEE 802.3x standards. This optical converter is able to change freely from the full duplex working mode to half mode. It also has large bandwidth, high speed, and self-adaptive features.
Advantages of the Dual Fiber Media Converter
1. The fiber optic media converter is compliant with IEEE 802.3 10 Base-T, IEEE 802.3u 10/100 Base-TX/FX and IEEE 802.3X standards.
2. Auto negotiation for half/full duplex working modes
3. Auto negotiation for 10/100Mbps data rate
4. Twisted-pair connector: NODE/HUB or SWITCH (5 class UTP)
5. Automatic identification of MDI/MDI-X cross-line
6. The dual fiber media converter supports high-performance 155Mbps memory bandwidth
7. Conforming to FCC, 15 CLASS A, RoHS and CE standards
8. Unidirectional transmission over dual fiber

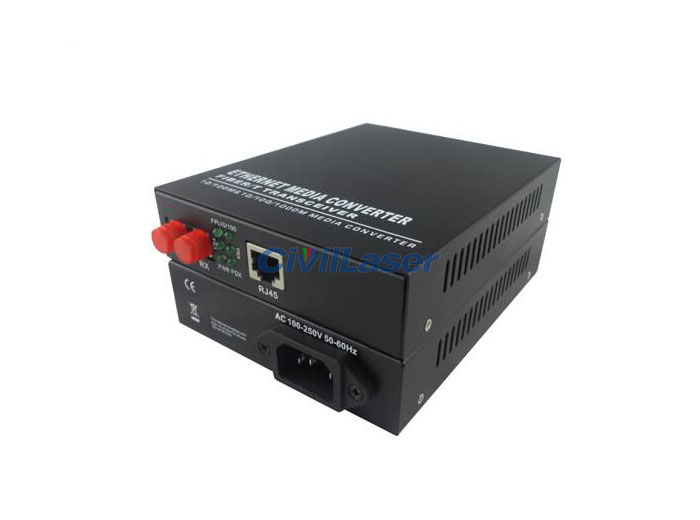

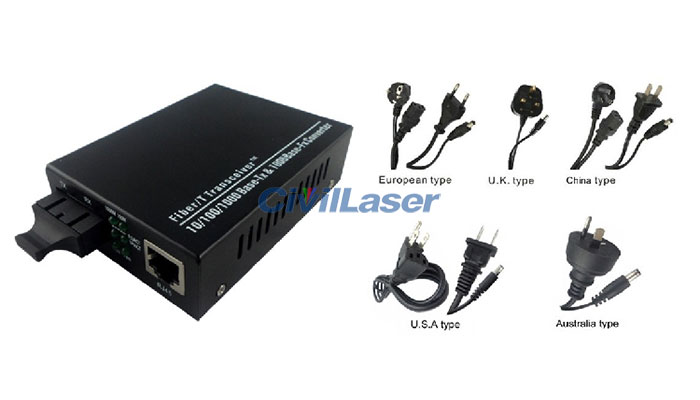

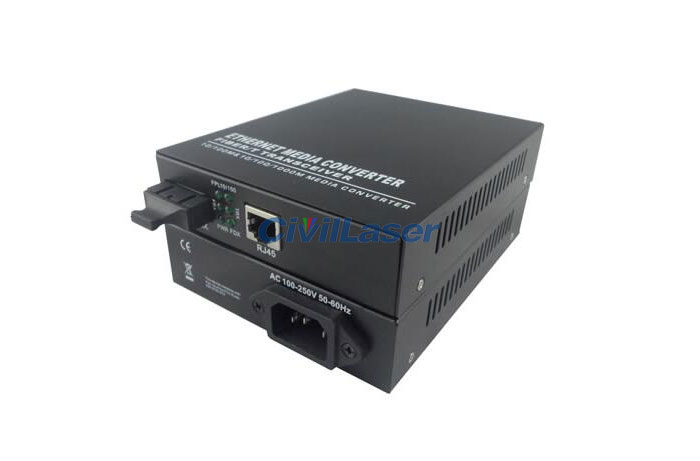

9. External and built-in type power supply are optional
Applications of the Dual Fiber Media Converter
1. This fiber optic converter is suitable for circumstances in need of network expansion
2. Broadband metropolitan area network
3. Telecommunication network, CATV and other data network operator
4. Finance, government, petroleum, electricity, railways, public security, transportation and education industries
5. Multimedia transmission and integrated transmission of images, voices and data
6. Distance education, video conferencing, video telephone
7. Security and protection systems
Specifications of the Dual Fiber Media Converter
Specifications of the Dual Fiber Media Converter
| Item |
Specifications |
| Standards |
IEEE802.3 10 Base-T standards |
| IEEE802.3u 10/100Base-TX/FX standards |
| IEEE 802.3d standards |
| IEEE 802.3Q standards |
| Data Rate |
Electrical Interface: 10/100Mbps |
Optical interface: 155Mbps |
| Transmission Mode |
Full duplex or half-duplex (adaptive) |
| Connector |
Electrical interface: RJ-45 |
Optical interface connector: SC/ST/FC |
| LED Indicators |
Power supply, FPL, 10/100, FRX, TRX, FDX. |

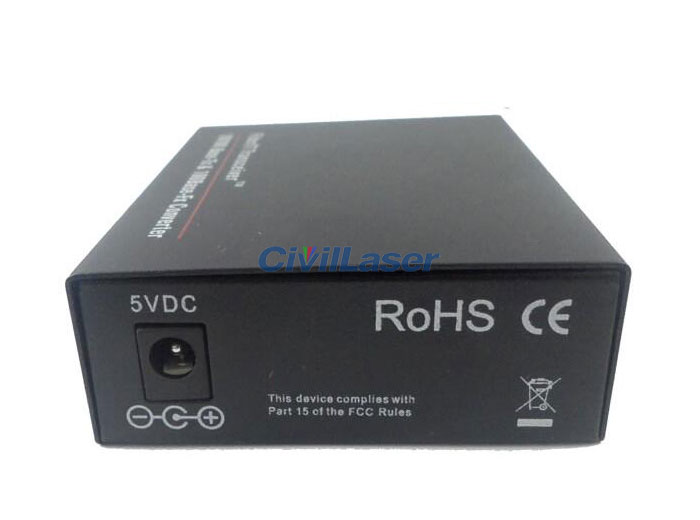

| Power Supply |
External |
DC-48V,DC24V,DC12V,DC5V |
| Built-in |
AC110-250V/50Hz |
| DC -32~-72V |
| Power Assumption |
≤5W |
| Environmental Parameter |
Working Temperature |
0 ℃ ~ 50 ℃ (32 °F ~ 122 °F ) |
| Storage Temperature |
-40 ℃ ~ 70 ℃ (-40 °F ~ 158 °F ) |
| Humidity |
5%~90% (no condensation) |
| Electrical Interface Twisted Pair |
Five kinds (max. transmission distance:100m) |
| Optical Interface Fiber and Cable |
8.3/125, 8.7/125, 9/125, 10/125μm (transmission distance:20 -120km) |
| 50/125, 62.5/125μm (transmission distance: 2~5km) |
| MTBF |
>50,000hours |

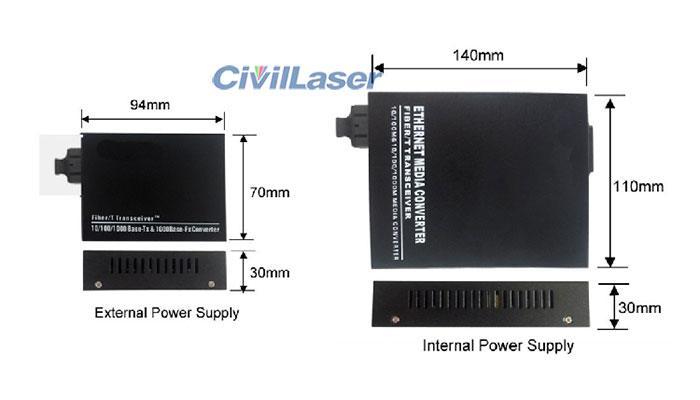

| Product Dimension |
External Power Supply |
94*70*25mm (3.7*2.8*0.98 inch ) |
| Built-in Power Supply |
140*110*30mm (5.5*4.3*1.2 inch ) |
| Card Type |
157*128*31mm (6.2*5.1*1.2 inch ) |
| Gross Weight |
External Power Supply |
0.4 kg |
| Built-in Power Supply |
0.8 kg |
| Card Type |
1.0 kg |
| Radiation Safety Standard |
FCC Part 15, Class A, RoHS and CE Mark |
