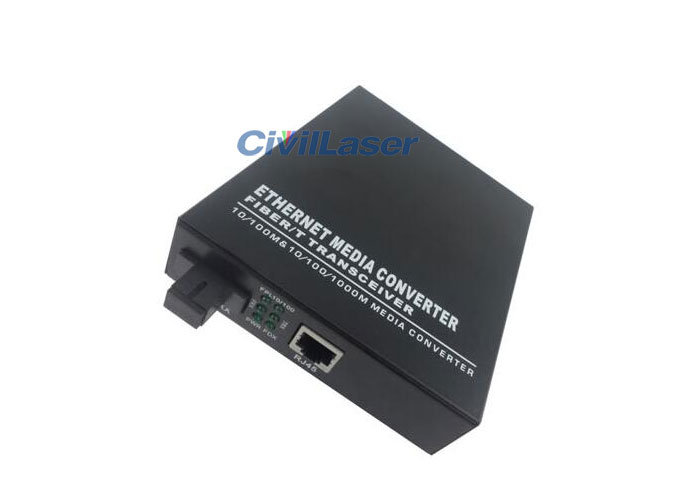

100M Single Fiber Media Converter SC Bidirectional Transceiver
This single fiber media converter utilizes Wavelength Division Multiplexing technology to send and receive signals by using a single strand of fiber. It is essentially a signal converter used to covert network electric signals to optical signals. The fiber media converter comes with a fiber interface and an electrical interface. The former can be SC, TC, ST or SFP module connector, while the latter one is usually RJ45 connector. According to the compatible fiber type, the fiber converter is available in single mode media converter and multimode fiber media converter.
Our single fiber media converter is completely in conformity with 10Base-T, 100Base-TX, 100Base-FX and IEEE 802.3x standards. The product achieves automatic switch-over between half and full duplex working modes. With high bandwidth, high speed and self-adaptive features, the fiber optic converter is widely used in optical network systems.
Advantages of the Single Fiber Media Converter
1. Compliant with IEEE 802.3 10 Base-T, IEEE 802.3u 10/100 Base-TX/FX and IEEE 802.3X standards
2. Auto negotiation for half/full duplex working modes
3. Auto negotiation for 10/100M data rate
4. Twisted-pair connector: NODE/HUB or SWITCH (Class 5 UTP)
5. Automatic identification of MDI/MDI-X cross-line
6. High-performance 155Mbps memory bandwidth
7. Conforming to FCC, 15 CLASS A, RoHS and CE MARK
8. Bi-directional communication with a single strand of fiber
9. There are two types of power supply for our fiber optic media converter, which are external and built-in type.
Applications of the Single Fiber Media Converter
1. This series of fiber optic transceiver is suitable for circumstances in need of network expansion
2. Broadband metropolitan area network
3. Telecommunication network, CATV and other data network operator
4. Finance, government, petroleum, electricity, railways, public security, transportation and education industries
5. Multimedia transmission and integrated transmission of images, voices and data
6. Distance education, video conferencing, video telephone
7. Security and protection systems
Specifications of the Single Fiber Media Converter
| Item |
Specifications |
| Industry Standards |
IEEE802.3 10 Base-T standards |
| IEEE802.3u 10/100Base-TX/FX standards |
| IEEE 802.3d standards |
| IEEE 802.3Q standards |
| Data Rate |
Electrical Interface: 10/100Mbps |
Optical interface: 155Mbps |
| Transmission Mode |
Full duplex or half-duplex (adaptive) |
| Connector |
Electrical interface: RJ-45 |
Optical interface connector: SC/ST/FC |
| LED Indicators |
Power supply, FPL, 10/100, FRX, TRX, FDX. |

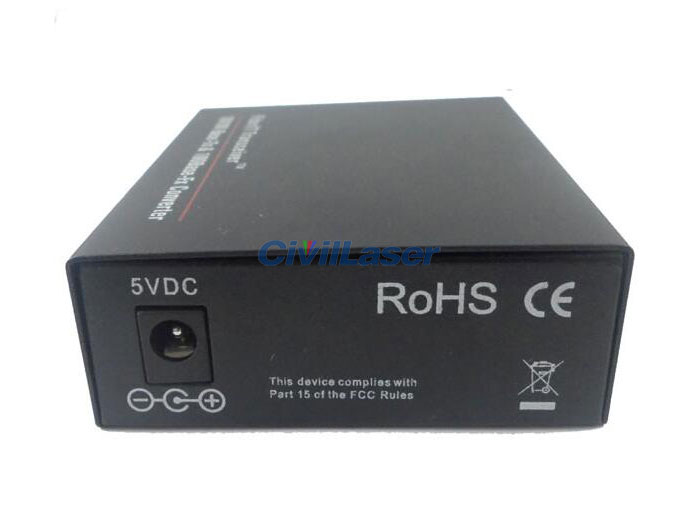

| Power Supply |
External |
DC-48V,DC24V,DC12V,DC5V |

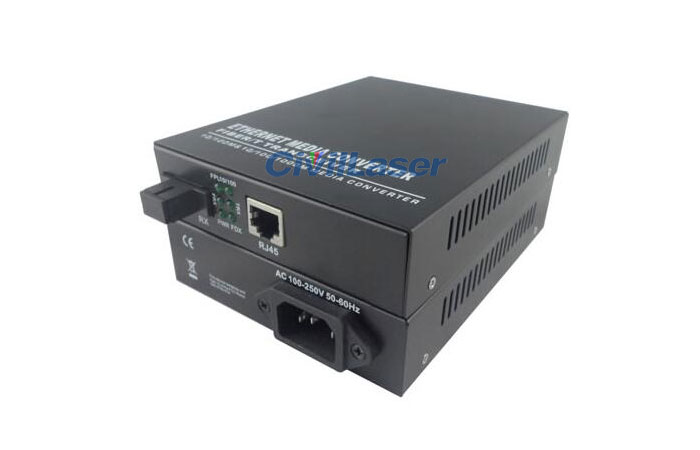

| Built-in |
AC110-250V/50Hz |
| DC -32~-72V |
| Power Assumption |
≤5W |
| Environmental Parameter |
Working Temperature |
0 ℃ ~ 50 ℃ (32 °F ~ 122 °F ) |
| Storage Temperature |
-40 ℃ ~ 70 ℃ (-40 °F ~ 158 °F ) |
| Humidity |
5%~90% (no condensation) |
| Electrical Interface Twisted Pair |
Five kinds (max. transmission distance:100m) |
| Optical Interface Fiber and Cable |
8.3/125, 8.7/125, 9/125, 10/125μm (transmission distance:20 -120km) |
| 50/125, 62.5/125μm (transmission distance: 2~5km) |
| MTBF |
>50,000hours |

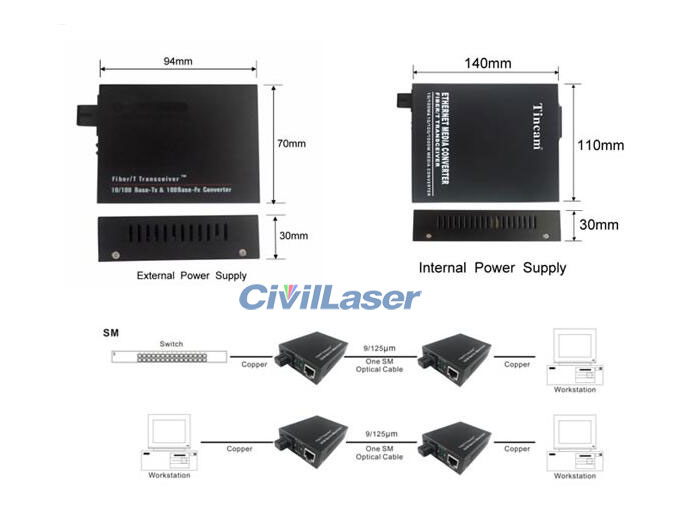

| Product Dimension |
External Power Supply |
94*70*25mm (3.7*2.8*0.98 inch ) |
| Built-in Power Supply |
140*110*30mm (5.5*4.3*1.2 inch ) |
| Card Type |
157*128*31mm (6.2*5.1*1.2 inch ) |
| Gross Weight |
External Power Supply |
0.4 kg |
| Built-in Power Supply |
0.8 kg |
| Card Type |
1.0 kg |
| Radiation Safety Standard |
FCC Part 15, Class A, RoHS and CE Mark |
