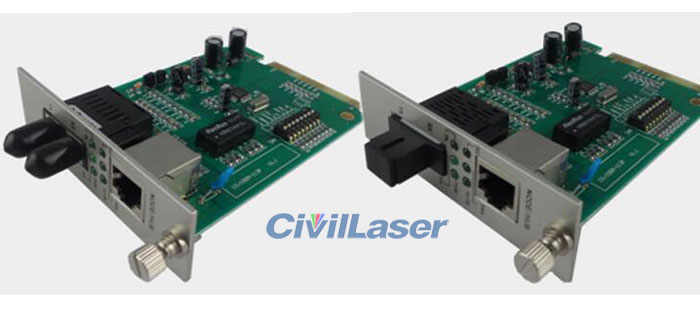

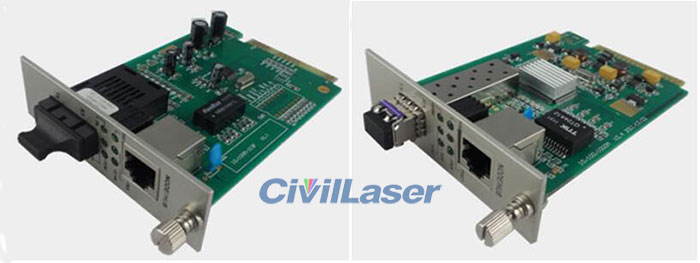

100M Card Type Single-mode Double Fiber SC Fiber Media Converter
The 100M card type fiber media converter is a Fast Ethernet converter used for data transmission between 100Base-TX twisted pair and 100Base-FX fiber optic cabling. It can be directly inserted into the housing for a desktop fiber converter or inserted into the rack for16-slot fiber media converters.
Our range of 100M card type fiber media converter allows for flexible hot swapping. Due to high bandwidth, high speed and self-adaptivity, this range of fiber optic media converter is widely used in circumstances where the transmission distance of Ethernet data communication needs to be extended.
Notes:
If you have some special requirements,please contact us.
Advantages

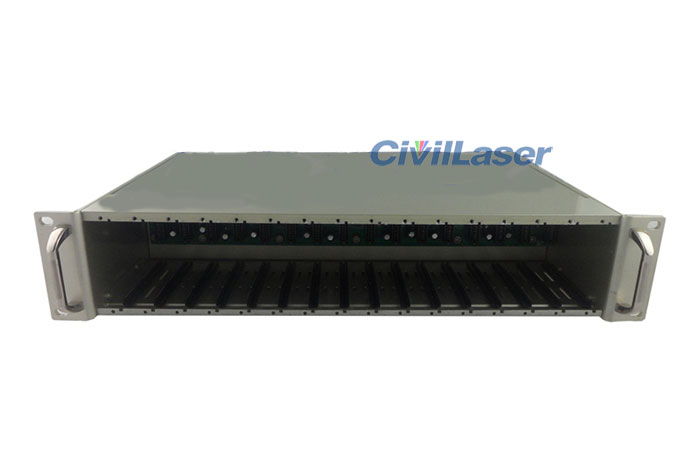

1. Used as a stand-alone device or installed on a 16-slot fiber media converter rack chassis
2. Network Management Protocol is available.
3. Single mode media converter, multimode media converter and WDM bi-directional fiber media converter are all provided.
4. This pluggable optical transceiver is compliant with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX/FX standards
5. Auto negotiation for half/full duplex working modes
6. Auto negotiation for 10/100M data rate
7. Automatic switchover between half/full duplex modes
8. MM50/125um or MM62.5/125um optical fiber has transmission distance more than 2km and SM9/125um optical fiber transmission distance is ranging from 20 to 80km.
9. High-quality LED indicators
10. Managed and unmanaged types fiber media converter are both available.
Applications
1. The fiber media converter is suitable for circumstances in need of network expansion
2. Broadband metropolitan area network
3. Telecommunication network, CATV and other data network operator
4. Finance, government, petroleum, electricity, railways, public security, transportation and education industries
5. Multimedia transmission and integrated transmission of images, voices and data
6. Distance education, video conferencing, video telephone
7. Security and protection systems
Specifications of the 100M Card Type Dual Fiber Media Converter
| Item |
Specifications |
| Industry Standards |
IEEE802.3 |
| IEEE802.3u |
| 10/100 Base-TX |
| 100 Base-TX |
| Data Rate |
10M/100M adaptive |
| Transmission Mode |
Full duplex or half-duplex (adaptive) |
| Conversion Mode |
Media conversion, storage transmission, direct transmission |
| Port |
Electrical interface: RJ-45 |
Optical interface connector: SC/ST/FC |
| Twisted Pair |
Five kinds (max. transmission distance: 100m) |
| Fiber Type |
8. 3/125, 8. 7/125, 9/125, 10/125μm ( transmission distance: 20 -120km) |
| 50/125, 62. 5/125μm ( transmission distance: 2~5km) |
| Wavelength |
Multimode: 850nm |
Single mode: 1,310/1,550nm |
| MAC Address |
1K |
| Buffer Space |
288KB |
| Packet Length |
Storage transmission:2,046 Bytes, direct transmission: infinite |
| Time Delay |
9.6us |
| Error Rate |
<1/1000000000 |
| MTBF |
80,000hours |
| Power Supply |
AC100~250V |
| Power Assumption |
<2.5W |
| Working Temperature |
0~50 Celsius degree |
| Storage Temperature |
-20~70 Celsius degree |
| Humidity |
5%~90% (no condensation) |

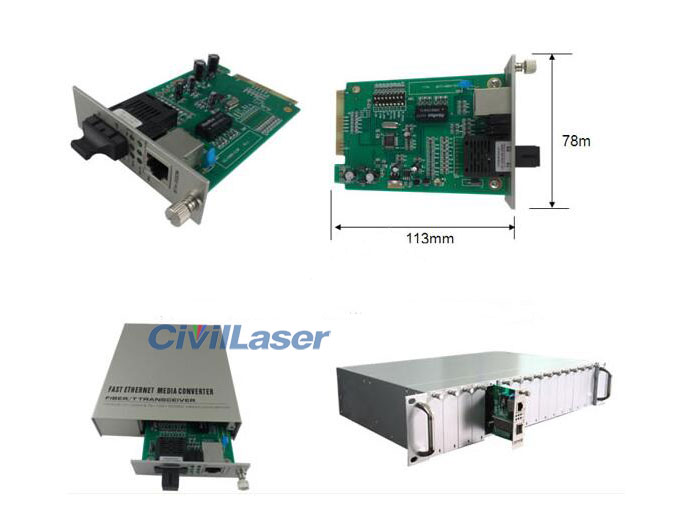

| Dimension(L*W*H) |
115*77*26mm(without enclosure) |
