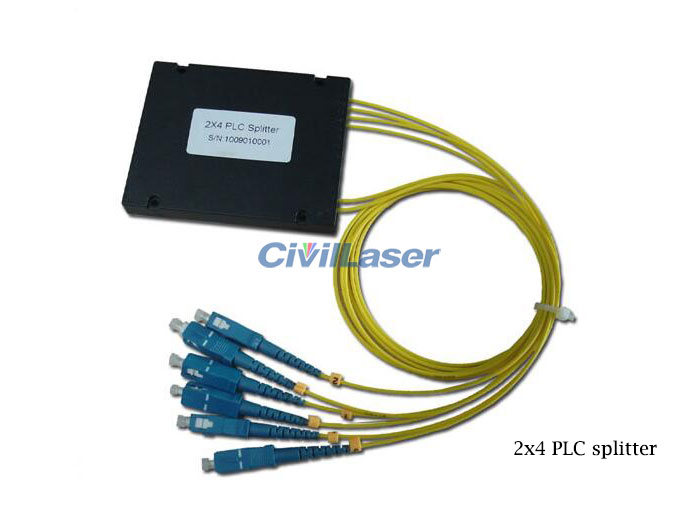

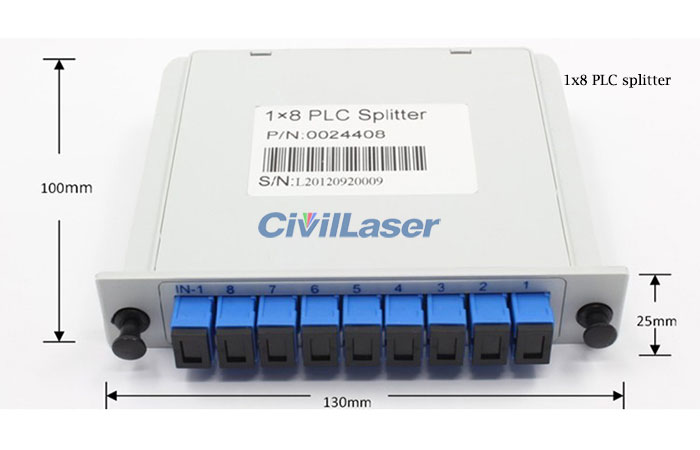

Module type optical splitter 2x4 ABS Cassette PLC Splitter
The PLC splitter, the short name of planar lightwave circuit splitter, is a popular style of fiber optic splitter used to divide an incoming optical signal into equal portions. Typical usages of our PLC splitter are in the FFTx system, MANs, WANs, CATV, and EPON.
Notes:
Our PLC splitter has a wide bandwidth, suitable for signals with wavelengths ranging from 1,260nm to 1,650nm. Its output channel exhibits good uniformity. Available in different packages, this small-sized optical fiber splitter can be tailored to customer specific requirements. Different configurations such as 1×N, 2×N can be provided. The maximum channel number can reach 64.If you need other type splitter,or special requirements,please contact us.
[Features]
1. High interchangeability
2. Low insertion loss
3. High reliability
4. Compliant with IEC standard and ROHS standard
6. This range of PLC optical splitter meets the Telcordia GR-1209-CORE and Telcordia GR-1221-CORE requirements
[Application]
1. CATV
2. Active devices
3. Optical fiber communication system
4. LANs, WANs
5. Telecommunication network
6. EPON/GPON
Specifications of the PLC Splitter
| 1XN Parameter |
| Parameter |
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
Unit |
| Insertion Loss |
≤3.7 |
≤7.20 |
≤10.5 |
≤13.6 |
≤16.9 |
≤21.0 |
dB |
| Uniformity |
≤0.6 |
≤0.6 |
≤0.8 |
≤1.2 |
≤1.5 |
≤2.5 |
dB |

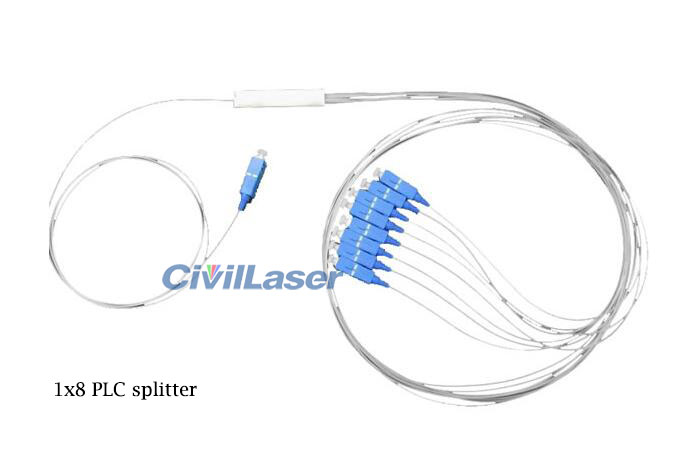

| Bare Fiber Package Dimension (L*W*H) |
40*4 *4 |
40*4 *4 |
40*4 *4 |
40*4 *4 |
50*7*4 |
60*12*4 |
mm |
| 0.9mm Loose Tube Package (L*W*H) |
50*7 *4 |
50*7 *4 |
50*7 *4 |
60*12 *4 |
80*12*4 |
/ |
mm |

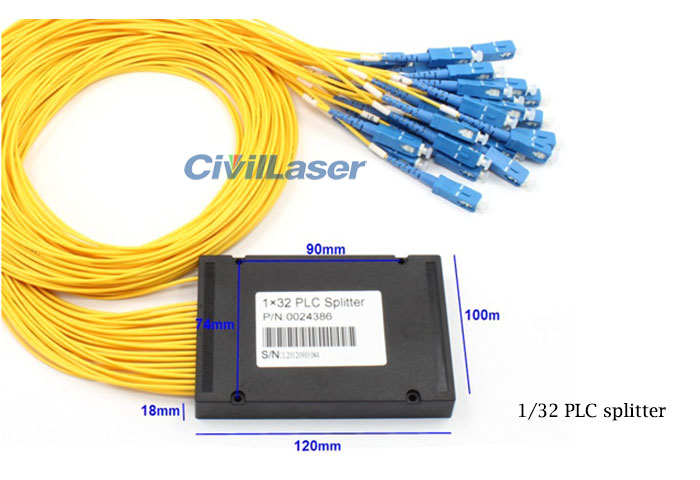

| ABS Black Box Package Dimension (L*W*H) |
100*80*9
Screw Pitch:70x74 |
120*80*18
Screw Pitch: 80x74 |
140*114*18
Screw Pitch: 100x106 |
mm |
| Operating Wavelength |
1260～1650 |
nm |
| Polarization Dependent Loss |
<0.2 |
dB |
| Directivity |
>55 |
dB |
| Return Loss |
>55 |
dB |
| Operating Temperature |
-40~+85 |
℃ |
| Storage Temperature |
-40~+85 |
℃ |
| 2XN Parameter |
| Parameter |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
Unit |
| Insertion Loss |
≤4.0 |
≤7.5 |
≤11.2 |
≤14.5 |
≤17.5 |
≤21.4 |
dB |
| Uniformity |
0.8 |
≤1.2 |
≤1.5 |
≤2.0 |
≤2.5 |
≤2.5 |
dB |
| Bare Fiber Package Dimension (L*W*H) |
50*4*4 |
50*4*4 |
50*4*4 |
60*7*4 |
60*7*4 |
/ |
mm |
| 0.9mm Loose Tube Package (L*W*H) |
60*7*4 |
60*7*4 |
60*7*4 |
80*12*6 |
100*20*6 |
/ |
mm |
| ABS Black Box Package Dimension (L*W*H) |
100*80*9
Screw Pitch:70x74 |
120*80*18
Screw Pitch: 80x74 |
140*114*18
Screw Pitch:100x106 |
mm |
| Operating Wavelength |
1260～1650 |
nm |
| Polarization Dependent Loss |
<0.2 |
<0.3 |
dB |
| Directivity |
>55 |
dB |
| Return Loss |
>55 |
dB |
| Operating Temperature |
-40~+85 |
℃ |
| Storage Temperature |
-40~+85 |
℃ |
