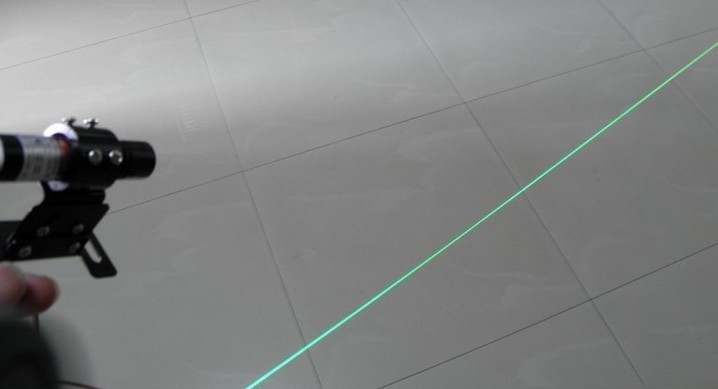

532nm 1mW~50mW Green Laser Module Line(Laser Head)

In view of the special requirements of the products, the fan angle can be ordered 10 °, 30 °, 45 °, 60 °, 90 °, the light intensity distribution uniformity is good, can meet the high quality requirements. The larger the angle, the light is longer.



Wave length: 532nm

Exit pupil power: 1mW ~ 50mW (cylindrical, no refrigeration)

The fan angle: 10 °, 30 °, 45 °, 60 °, 90 °, 110 ° (Default 90 )

Beam Divergence: 1.5mrad

Line width: 0.5m the smallest width about 0.8mm; 1 meters the smallest width about 1mm, 2m the smallest width about 2mm, 10 m the smallest width about 10mm

Optical system: 3 pieces of spherical glass lens group

Bending degree: ≤ 1mm @ 5m

Working voltage: DC 3V ~ 3.7V

Laser level: IIIa IIIb

Working temperature: 10 ℃ ~ 35 ℃

Storage temperature: - 40 ℃ ~ 80 ℃

Dimensions: Φ 16mm x 75mm optional

Working time: Sustainable light normally 1-2 hours. (good heat dissipation conditions, such as iron / iron rack cooling tool.)



Note:  voltage can be 3-3.7V any voltage, 3V best;
