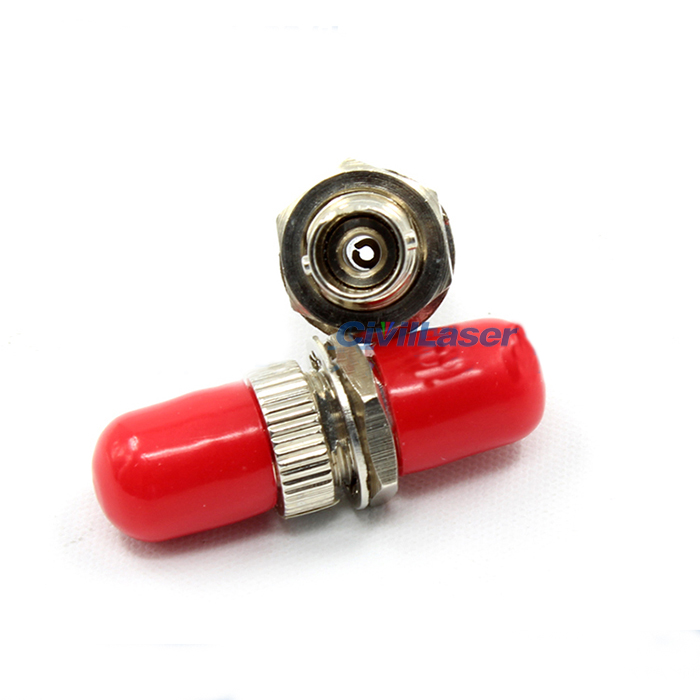

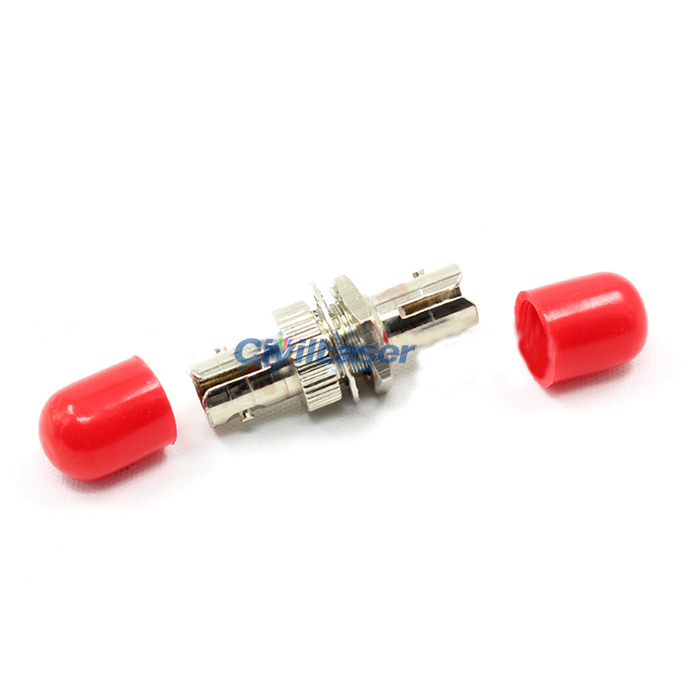

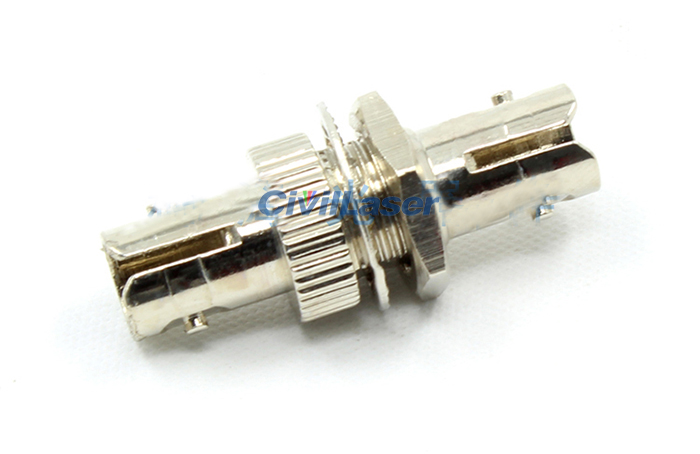

ST Fixed Flange Type Fiber Attemuator 1250nm-1650nm High Reliability Attenuator
Flange Type Fixed Attenuator also called adapter type attenuator,the shape is similar to the common adapter.The principle is to install the attenuator inside the adapter,so that the connector is not connected with each other to achieve the purpose of attenuation.
This range of fixed attenuator is mainly used to reduce optical power to target value in optical links. It comes in different types including SC, LC, FC, ST and MU. Based on the shape of ferrule shape, the fixed optical attenuator can also be classified as PC and APC with 8 degrees type. The attenuation value is in range of 0 to 30dB, which are all applicable for optical signal with wavelength ranging from 1,250nm to 1,650nm.
[Features]
1. Good interchangeability and repeatability
2. Accurate attenuation
3. High reliability
4. Compliant with the IEC and RoHS standards
5. Conforming to Telcordia-GR-910-CORE
[Applications]
1. Testing instruments
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx
Specifications
| Item |
parameter |
Unit |
| Flange Type Optical Attenuator |
FC(Suitable for PC connector) |
| Testing Wavelength |
1310,1550 |
nm |
| Operating Bandwidth Range |
1,250~1,650 |
nm |
| Typical attenuation |
3,5,7,10,15,20 |
dB |
| Attenuation Tolerance |
±10% |
/ |
| Repeatability |
≤0.10 |
dB |
| Exchangeability |
≤0.20 |
dB |
| Durability |
1,000 Mating, loss≤0.20 |
dB |
| Operating Temperature |
-2 0 to + 70 |
℃ |
| Storage Temperature |
-40 to + 85 |
℃ |
