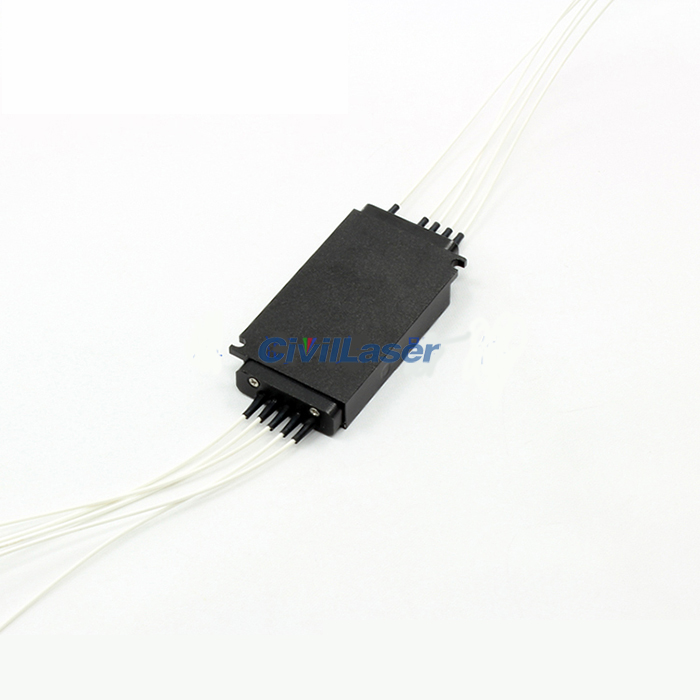

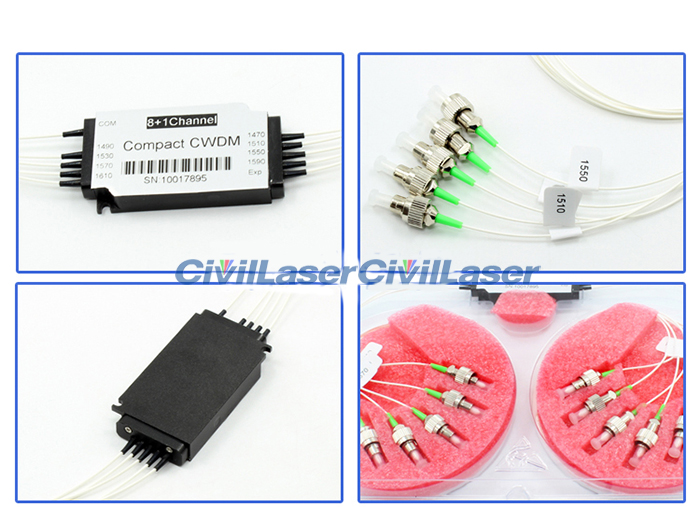

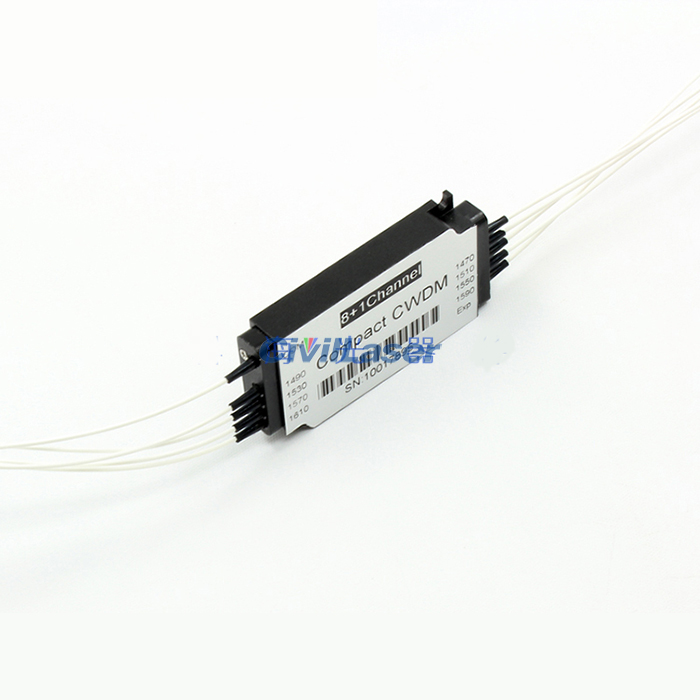

Mini Coarse Wavelength Division Multiplexer 8 Channel CWDM 1/8
The average size of CWDM is larger, it is not convenient to install in small devices.Mini CWDM has the advantages of small volume, small space requirement,the parameters can still meet the requirements of ordinary CWDM.
Due to the small size of the mini CWDM, the manufacturing process must be carried out using special materials for coupling packaging.Therefore, the cost of mini CWDM is higher than that of ordinary CWDM.
[Features]
1. Wide passband
2. Low insertion loss
3. High channel isolation
4. High stability and reliability
5. Epoxy-free optical path
[Applications]
1. Optical fiber communication systems
2. Optical devices
3. Optical amplifiers
4. Fiber lasers
5. Wavelength division multiplexing systems
6. System monitors
Specifications
| Item |
Parameter |
Unit |
| Number of Channels |
4 Channel |
8 Channel |
8(+E1) |
8(+E2) |
CH |
| Central Wavelength(Customized) |
1270,1290...1610 OR1271,1291...1611 |
nm |
| Bandwidth |
Channel |
>±6.5 |
nm |
| Upgrade Port |
/ |
>1310±50 |
>1260~1457 |
nm |
| Isolation |
MUX |
Adjacent channel |
>30 |
dB |
| Non adjacent channel |
>40 |
dB |
| Upgrade terminal |
>15 |
dB |
| DEMUX |
Adjacent channel |
>30 |
dB |
| Non adjacent channel |
>40 |
dB |
| Upgrade terminal |
>15 |
dB |
| Insertion Loss |
Channel |
<1.0 |
<1.5 |
<1.6 |
<1.8 |
dB |
| Upgrade terminal |
/ |
<1.2 |
<1.2 |
dB |
| Passband Flatness |
<0.3 |
dB |
| Directionality |
>50 |
dB |
| Polarization Dependent Loss |
<0.15 |
dB |
| Polarization Mode Dispersion |
>0.1(GD) |
Ps |
| Return Loss |
>50 |
dB |
| Fiber Type |
SMF-28e |
/ |
| Output Fiber Type(Customized) |
bare fiber(Default) /900μm loose tube |
/ |

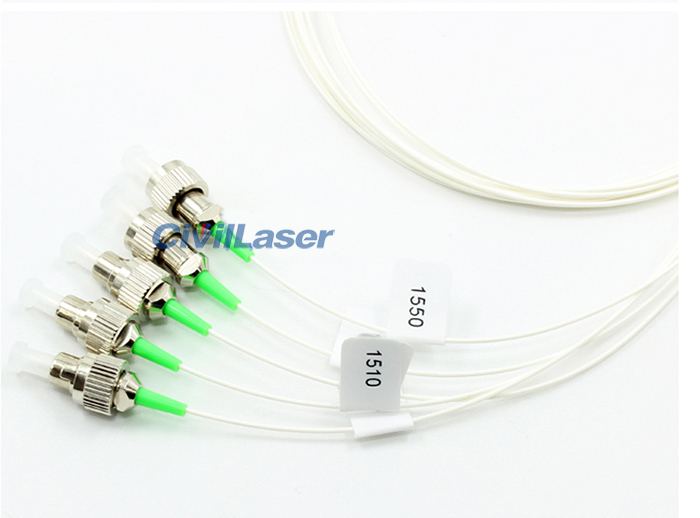

| Input/Output Connector(Customized) |
None,FC/APC,FC/PC,SC/APC,SC/PC,ST,LC |
/ |
| Fiber Length |
Customized: 1.0±0.1 |
dB |
| Optical Power |
<500 |
mW |
| Working Temperature |
-10~+70 |
°C |
| Storage Temperature |
-40~+85 |
°C |
| Package Dimensions |
60*30*8(L*W*H) |
mm |
