635nm 650nm 0.5mW~10mW Red Laser Diode Module Dot Laser Locator Φ10X35mm

635nm 650nm 0.5mW~10mW Red Laser Diode Module Dot Laser Locator Φ10X35mm

[Specification]
Product Name: Laser module
Wavelength: 635±10nm / 650±10nm (Choose)
Output Power: 0.5mW / 1mW / 3mW / 10mW (Choose)
Laser Shape: Dot
Irradiation Range(Indoor): <200m
Spot Size(@10m): <12mm (Dot)

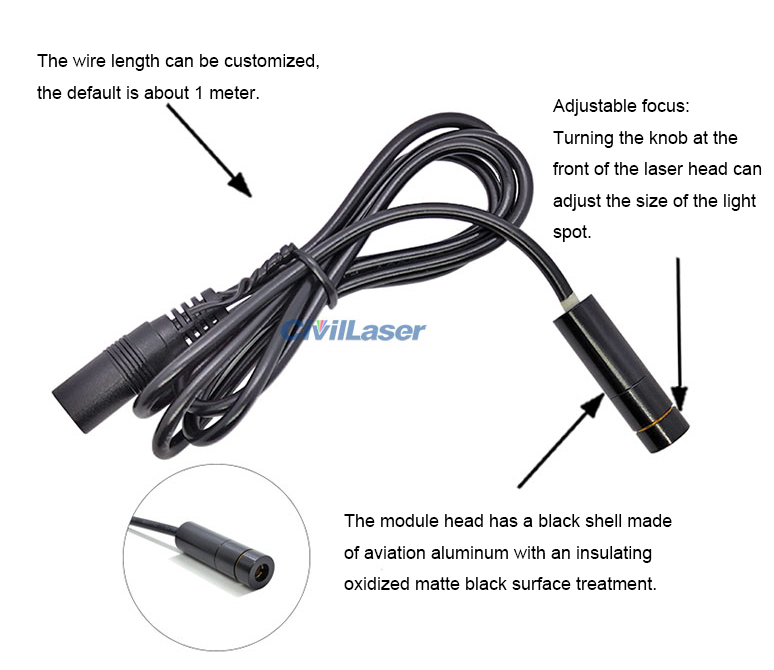

Focus: Adjustable
Circuit Control: APC circuit (TTL Customizable)
Operating Voltage: DC 2.8~5.2V

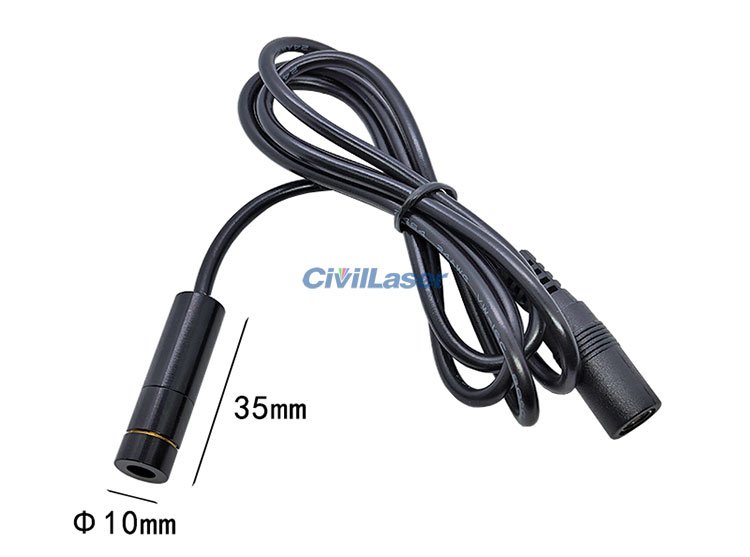

Size: Φ10X35mm
Material: Aviation aluminum
Tail Wire: DC female cable, the cable length is about 1m
635nm: <30mA(0.5mW), <40mA(1mW), <50mA(3mW), <70mA(10mW)
650nm: <20mA(0.5mW), <30mA(1mW), <35mA(3mW), <50mA(10mW)
Operating Temperature: -10℃~+40℃,  -30℃~+50℃ (650nm 10mW)
Storage Temperature: -20℃~+70℃,  -40℃~+80℃ (650nm 10mW)
Service Life: >10000 hours

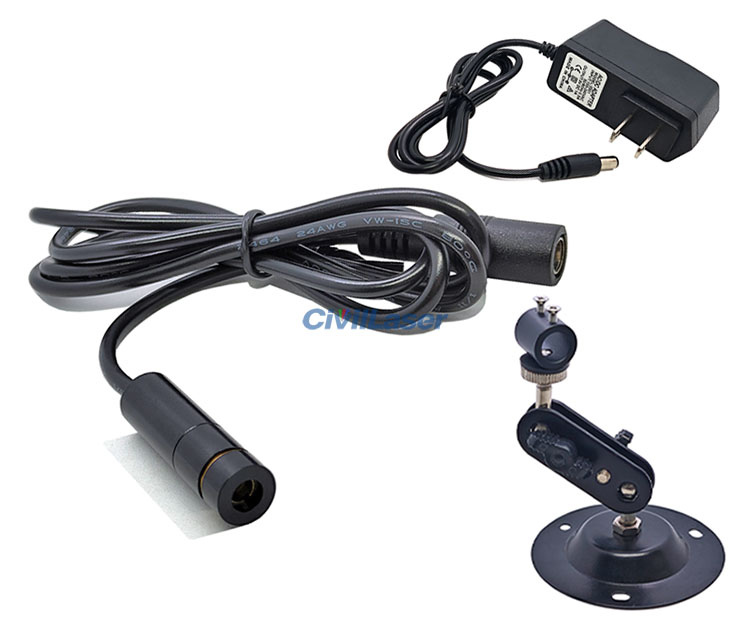

[Package Include]
1 x Laser module
1 x Power supply (Choose)
1 x Module holder (Choose)
