635nm 650nm 0.4mW/1mW/3mW/10mW Red Laser Module Dot Laser Locator Φ12X30mm

635nm 650nm 0.4mW/1mW/3mW/10mW Red Laser Module Dot Laser Locator Φ12X30mm

[Specification]
Product Name: Laser module
Wavelength: 635±10nm / 650±10nm (Choose)

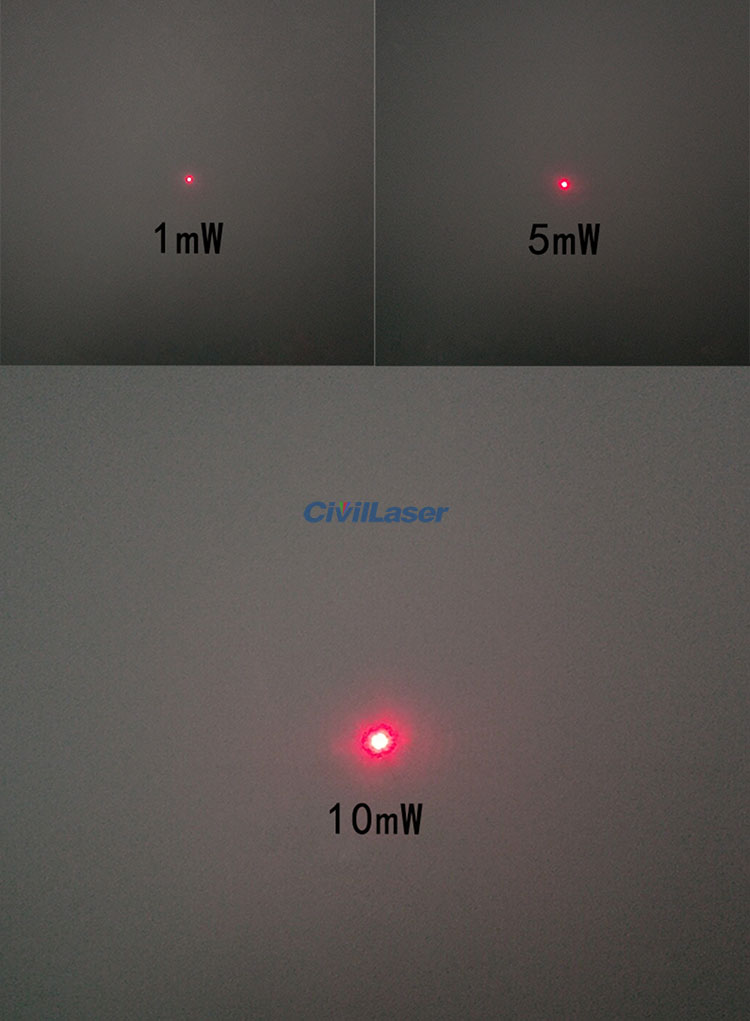

Output Power: 0.4mW / 1mW / 3mW / 10mW (Choose)
Laser Shape: Dot
Irradiation Range(Indoor): <200m
Spot Size(@10m): <12mm

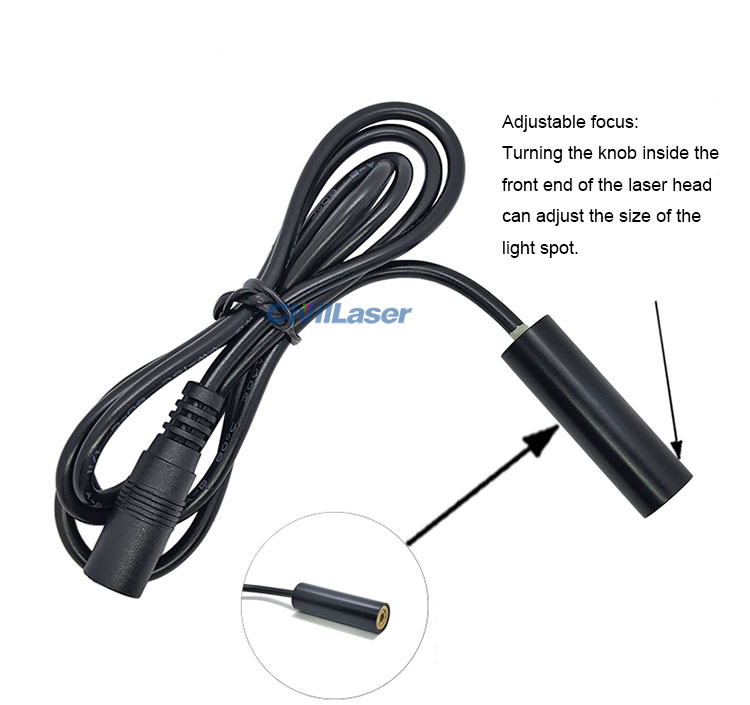

Focus: Adjustable
Circuit Control: APC circuit (TTL customizable)
Operating Voltage: DC 2.8~5.2V / DC 9~12.5V / DC 23~25V (Choose)

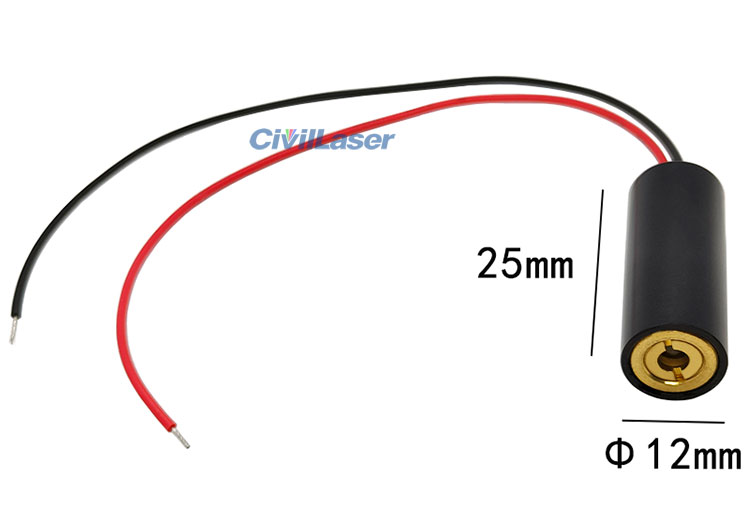

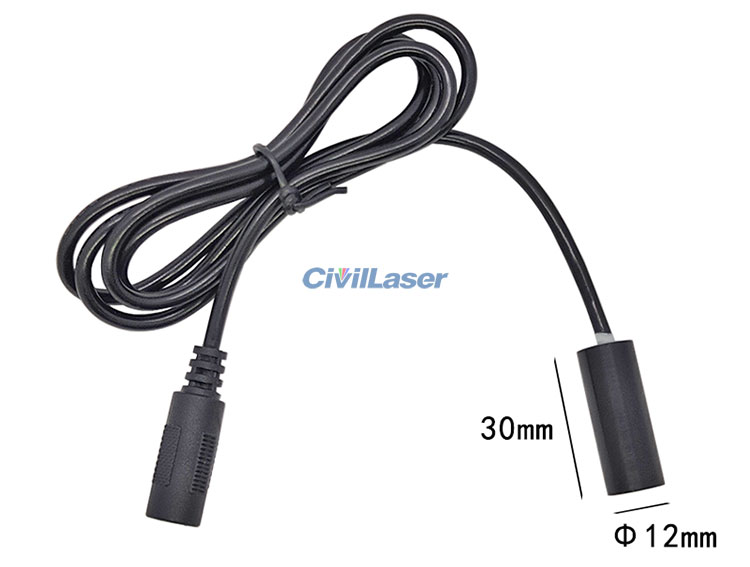

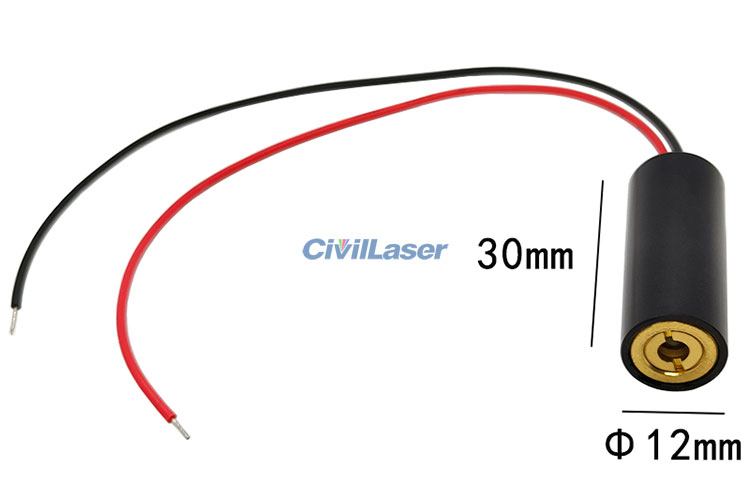

Size: Φ12X30mm / Φ12X25mm (Choose)
Material: Aviation aluminum

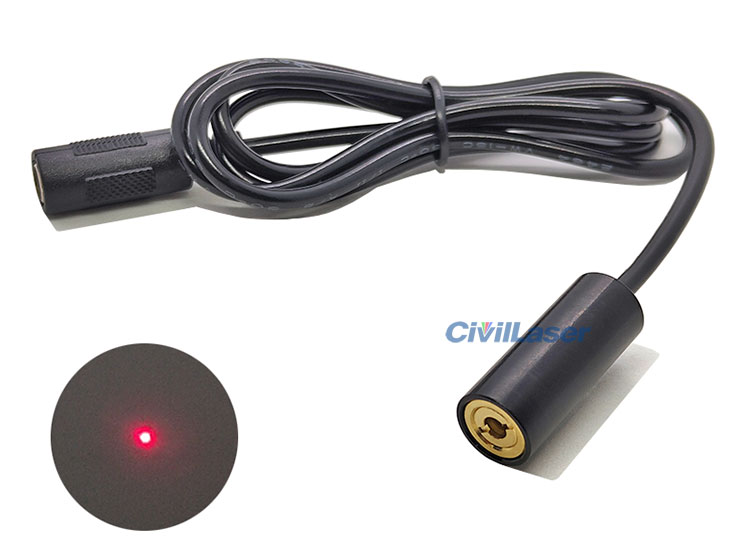

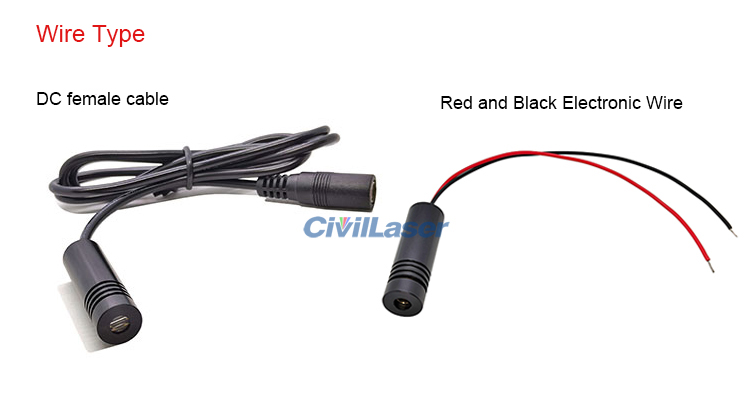

Tail Wire: DC female cable, the cable length is about 1m.
                   26# red and black electronic wire, length about 15cm
Operating Current:
635nm: <30mA(0.4mW), <40mA(1mW), <50mA(3mW), <70mA(10mW)
650nm: <20mA(0.4mW), <30mA(1mW), <35mA(3mW), <50mA(10mW)
Operating Temperature: -10℃~+40℃
Storage Temperature: -20℃~+70℃
Service Life: >10000 hours

[Package Include]
1 x Laser module
