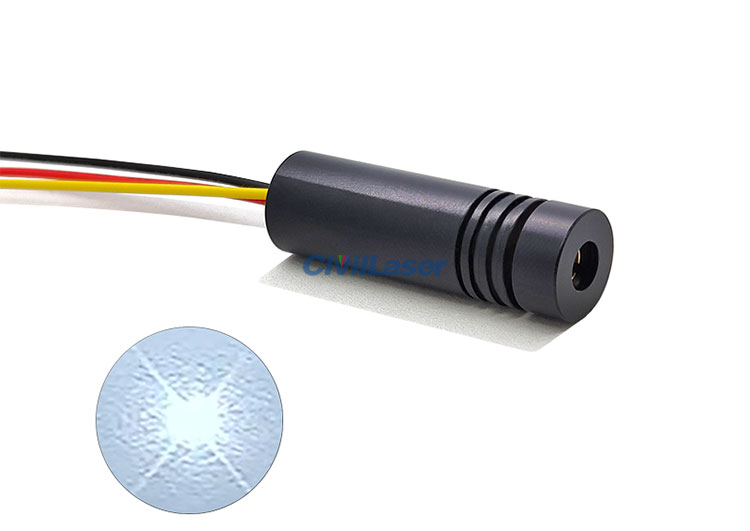

850nm 5mW~100mW Infrared Dot Laser Module 0~100kHz TTL Modulation Φ12X40mm

850nm 5mW~100mW Infrared Dot Laser Module 0~100kHz TTL Modulation Φ12X40mm

[Specification]
Product Name: Laser module
Wavelength: 850±10nm
Output Power: 5mW / 10mW /30mW / 50mW / 100mW (Choose)
Laser Shape: Dot (Oval)
Irradiation Range(Indoor): <200m(5-10mW), <1100m (30-100mW)
Spot Size(@10m): <10mm(5-10mW), <15mm(30-100mW)
Focus: Adjustable
Circuit Control: 0~100kHz TTL
Operating Voltage: DC 2.8~5.2V
Size: Φ12X40mm
Material: Aviation aluminum
Tail Wire: 26# red and black electronic wire, length about 15cm.
Operating Current: <30mA(5mW),  <40mA(10mW), <100mA(30mW), <130mA(50mW), <160mA(100mW)
Operating Temperature: -10℃~+50℃
Storage Temperature: -20℃~+70℃
Service Life: >10000 hours

[Package Include]
1 x Laser module
