635nm 30mW~150mW Focus Adjustable Laser Module Red Line Laser Φ16X60mm

635nm 30mW~150mW Focus Adjustable Laser Module Red Line Laser Φ16X60mm

[Specification]
Product Name: Laser module
Wavelength: 635±10nm
Output Power: 30mW / 50mW / 100mW / 150mW (Choose)
Laser Shape: Line
Irradiation Range: <5m (indoor)
Diffusion Angle: >90°
Focus: Adjustable focus
Circuit Control: ACC (TTL Customizable)

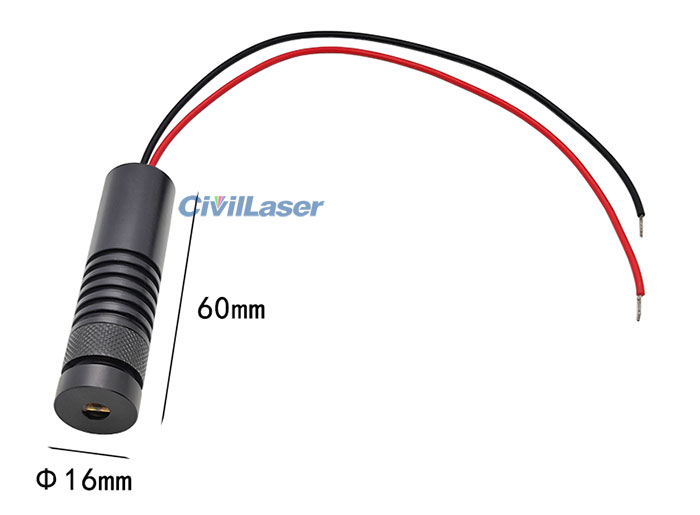

Size: Φ16x60mm

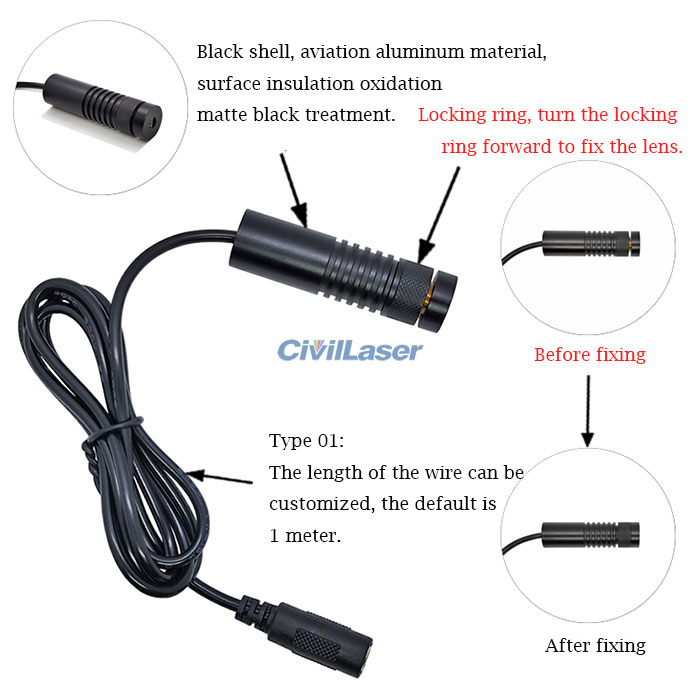

Material: Aviation aluminum
Operating Voltage: Type 01: DC 2.8~5.2V / Type 02: DC 4.8~25V

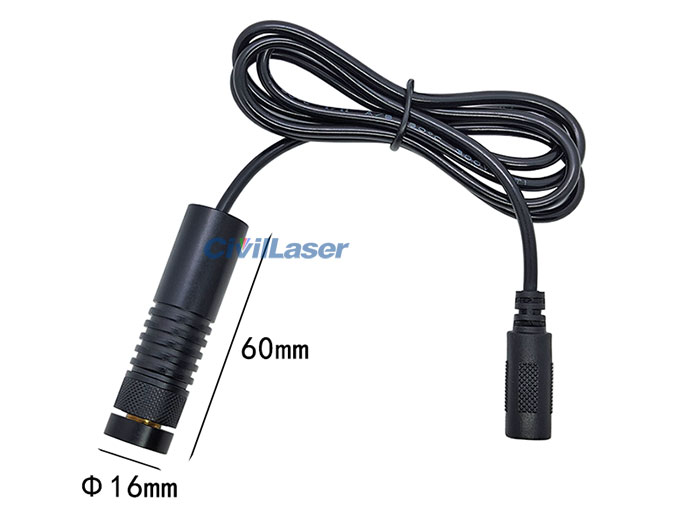

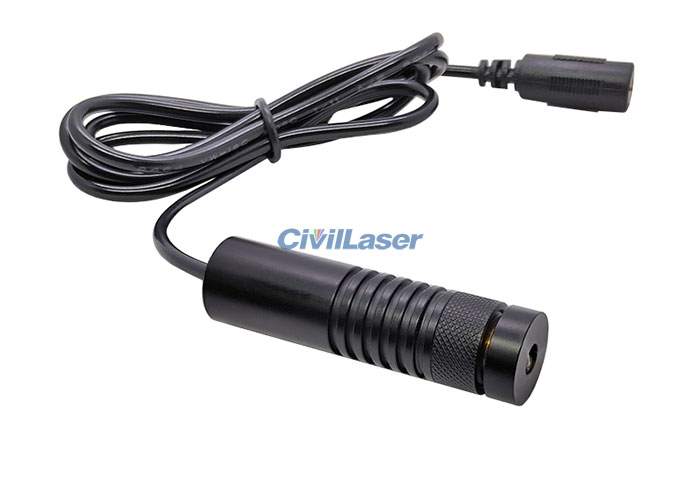

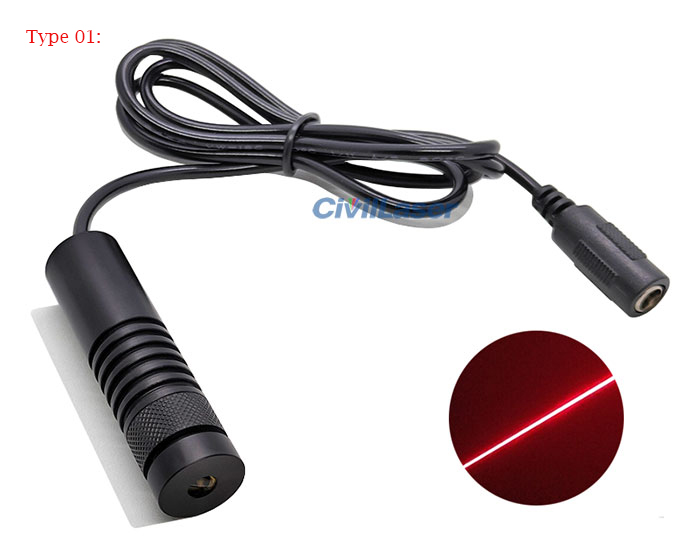

Tail Wire: Type#01: DC female cable, the cable length is about 1m (Customizable)

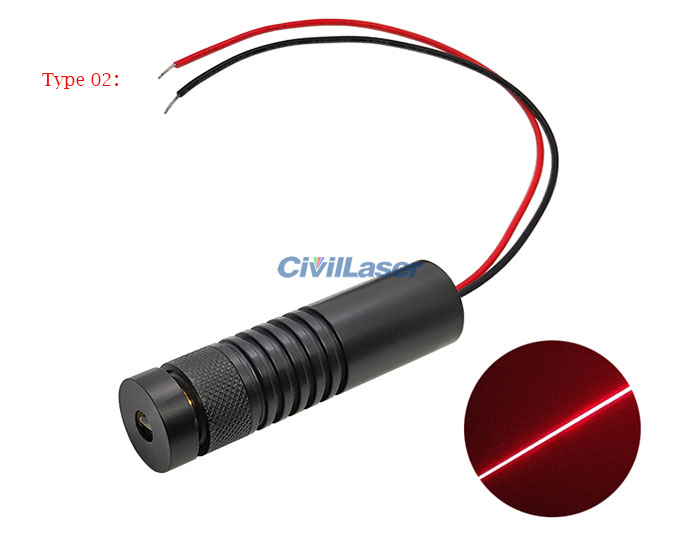

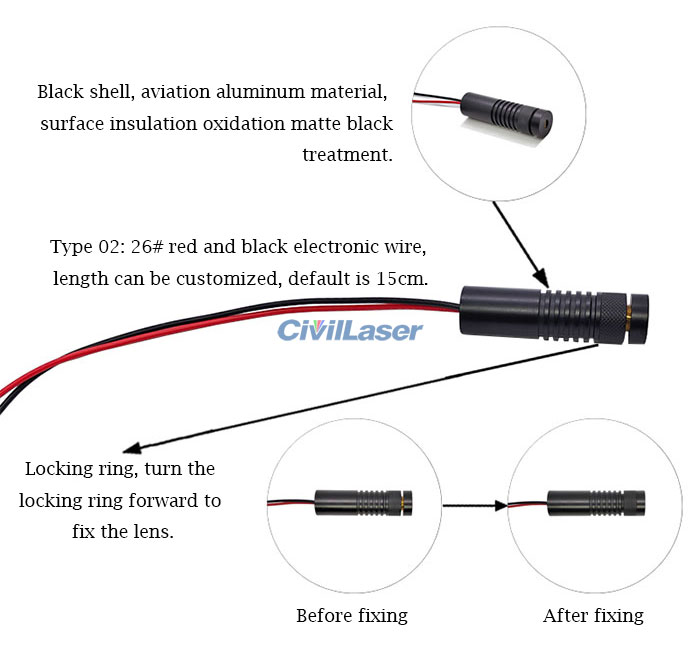

               Type#02: 26# red and black electronic wire, about 15cm in length
Operating Current: <130mA (30mW),  <150mA (50mW),  <180mA (100mW),  <280mA (150mW)
Operating Temperature: -10℃~+40℃ (Type 01), -10℃~+50℃ (Type 02)
Storage Temperature: -20℃~+70℃
Service Life: >10000 hours

[Package Include]
1 x Laser module
