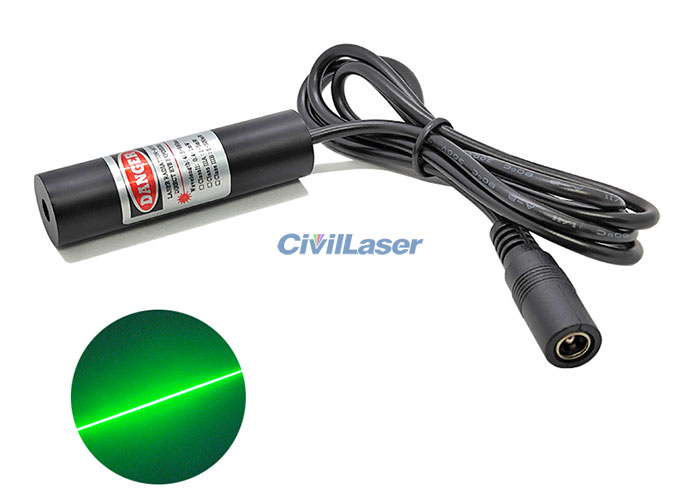

532nm 20mW~80mW Laser Diode Module Green Line Laser Positioner Φ16X60mm

532nm 20mW~80mW Laser Diode Module Green Line Laser Positioner Φ16X60mm

[Specification]
Product Name: Laser module
Wavelength: 532±10nm
Output Power: 20mW / 30mW / 50mW / 80mW (Choose)
Laser Shape: Line
Irradiation Range: <5m (indoor)
Diffusion Angle: >90°
Focus: Fixed focus
Circuit Control: ACC (TTL Customizable)

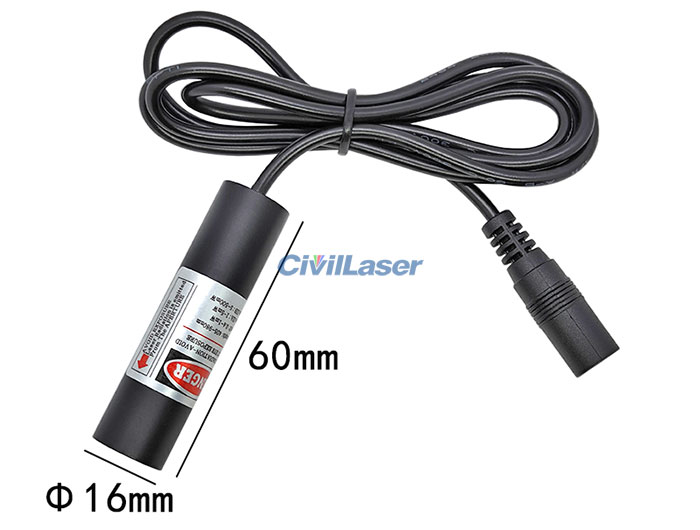

Size: Φ16x60mm
Material: Aviation aluminum

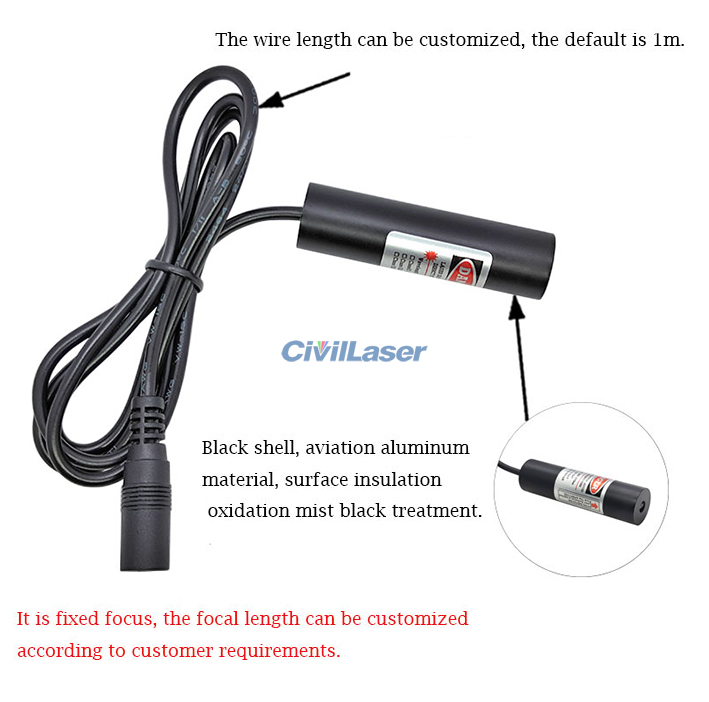

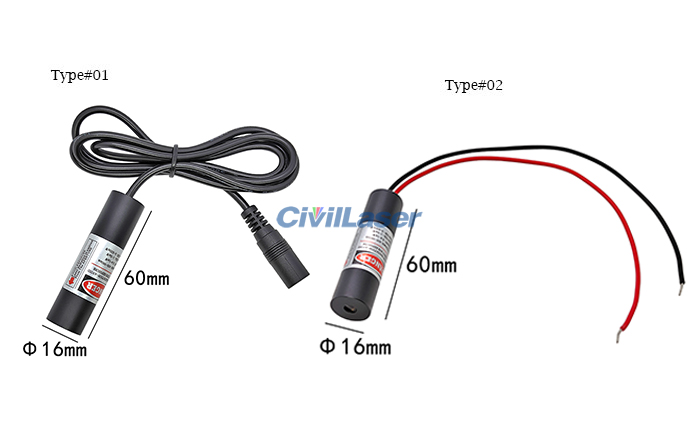

Tail Wire: Type#01: DC female cable, the cable length is about 1m (Customizable)
               Type#02: 26# red and black electronic wire, about 15cm in length
Operating Voltage: DC 2.7~5.2V
Operating Current: <350mA
Operating Temperature: -15℃~+35℃
Storage Temperature: -20℃~+70℃
Service Life: >10000 hours

[Package Include]
1 x Laser module
