650nm/520nm/450nm 101x101 10201 Dot Gypsophila Laser Module For Visual Scanning Φ16x70mm

650nm/520nm/450nm 101x101 10201 Dot Gypsophila Laser Module For Visual Scanning Φ16x70mm

[Features]
Ultra-high brightness, suitable for both indoor and outdoor use.
The light spot is clear and bright, soft and not dazzling.
The light spot size is adjustable.
The shell is aviation aluminum plated with insulating paint, which can fully dissipate heat, and is shock-proof, drop-proof and anti-static.
Imported laser diodes emit light directly, and the stability is particularly high.
The intelligent driver board with imported IC can be powered in an ultra-wide range of 2.8-5.2V.
High temperature resistant and corrosion-resistant DC plug line, suitable for all-weather and all-environment use.

[Specification]
Product Name: Laser module
Wavelength: 650nm / 520nm / 450nm
Laser Color: Red / Green / Blue (Choose)
Output Power: 100mW
Laser Shape: 101*101=10201 points of gypsophila
Operating Voltage: DC 2.8~5.2V
Operating Current: <500mA
Size: Φ16x70mm
Installation Height: 0-10m

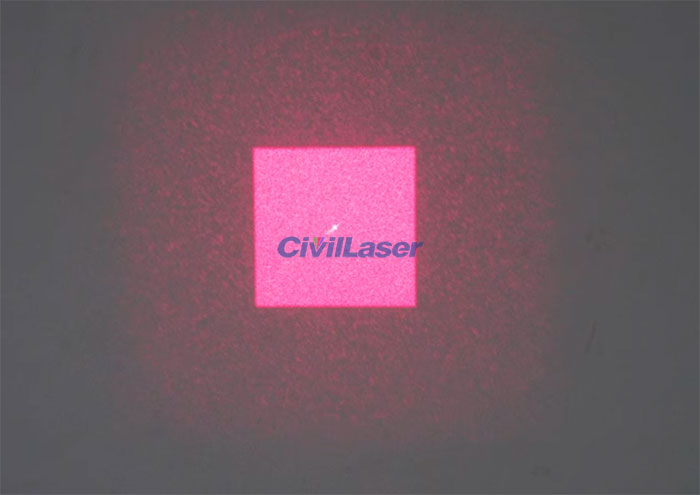

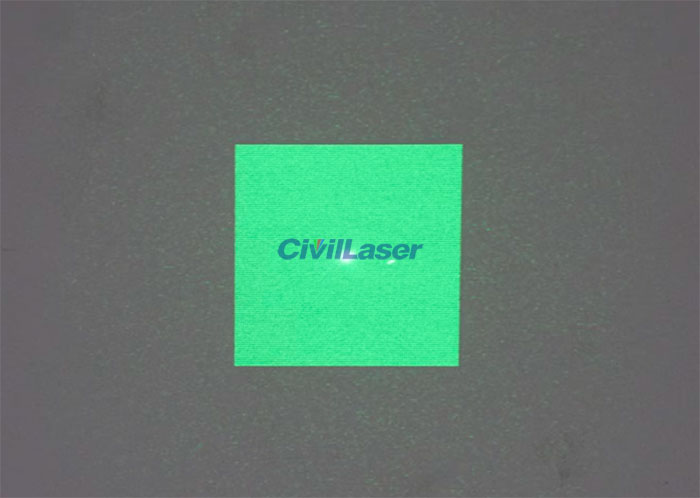

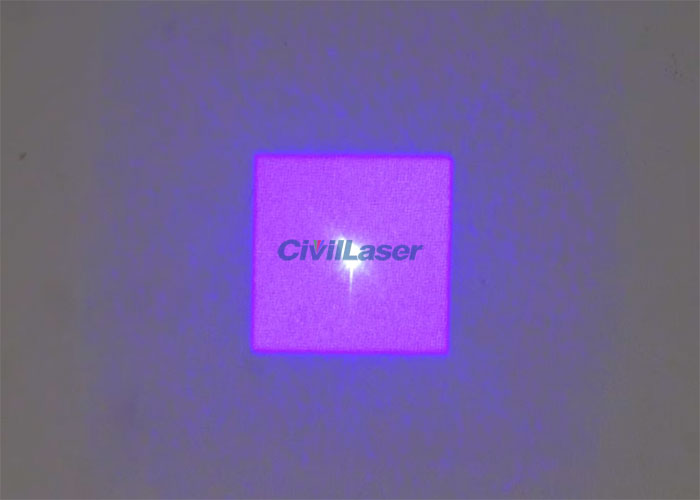

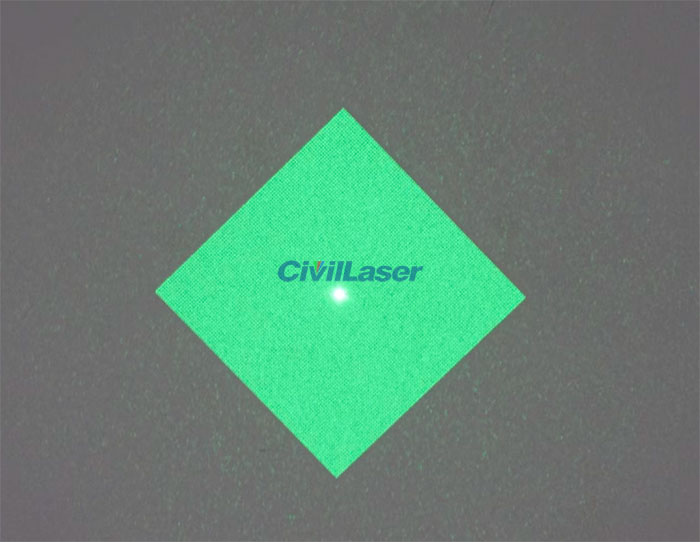

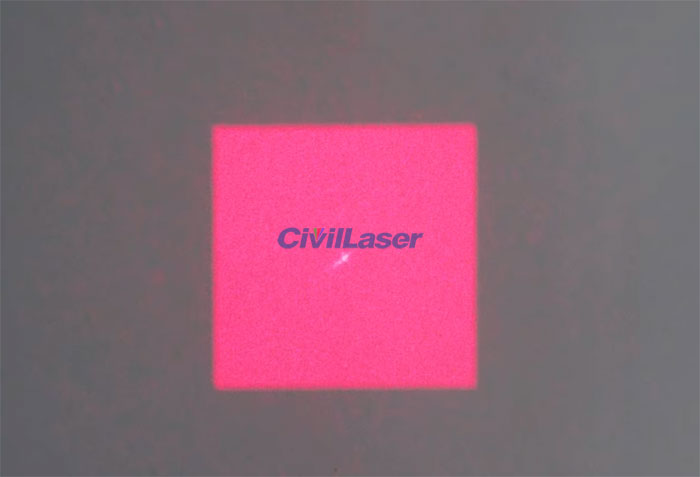

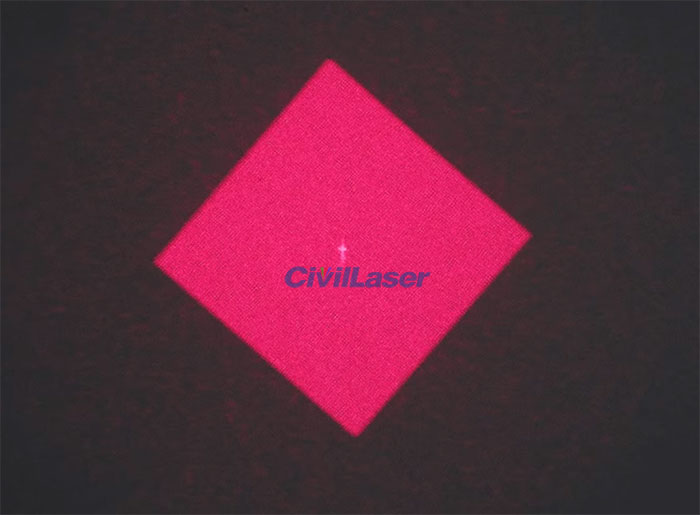

[Pattern Dimension]
50cm: side length 4.35cm, side width 4.35cm, dot spacing 0.045cm, diagonal length of dots: 6.2cm
100cm: side length 8.7cm, side width 8.7cm, dot spacing 0.09cm, diagonal length of dots: 12.4cm
150cm: side length 13.05cm, side width 13.05cm, dot spacing 0.135cm, diagonal length of dots: 18.6cm

[Package Include]
1 x Laser module
1 x Power supply
1 x Module holder
