589nm 300mW Yellow dpss laser CW Laser with Analog/TTL Modulation

 589nm 300mW Yellow dpss laser CW Laser with Analog/TTL Modulation

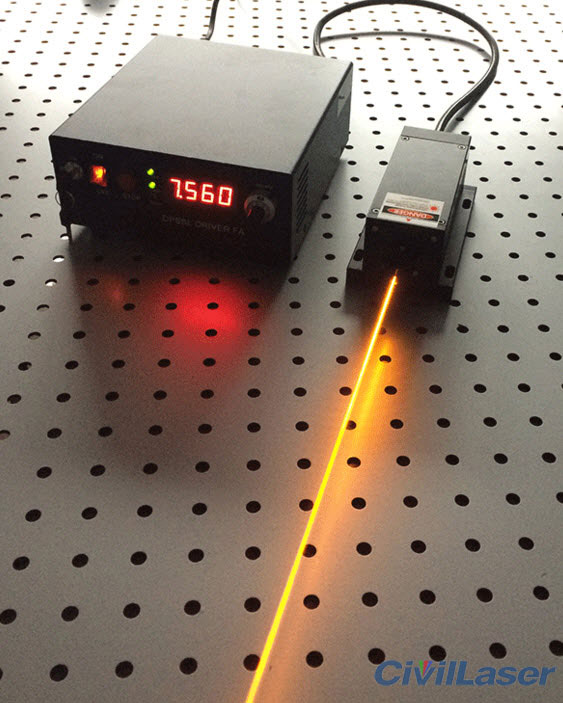

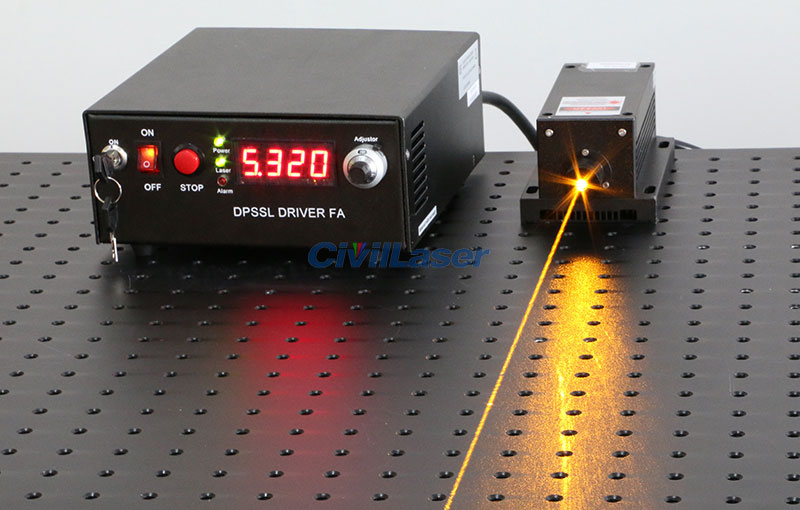

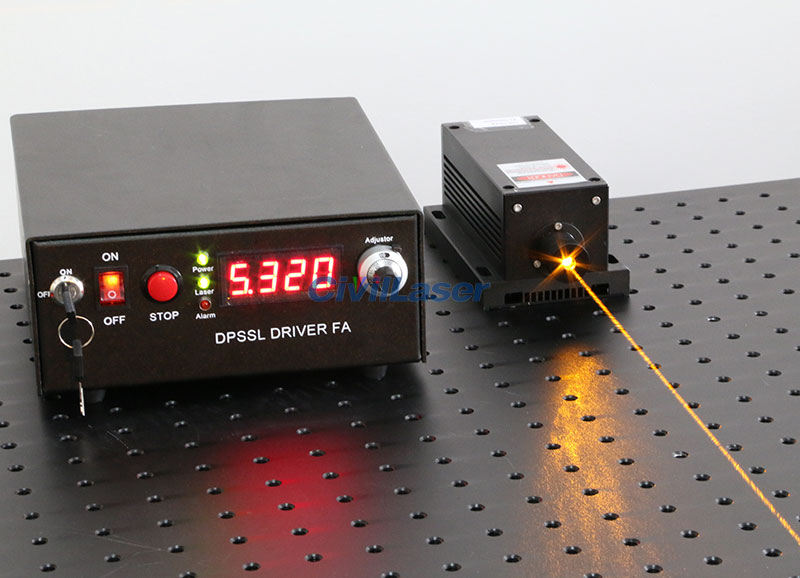

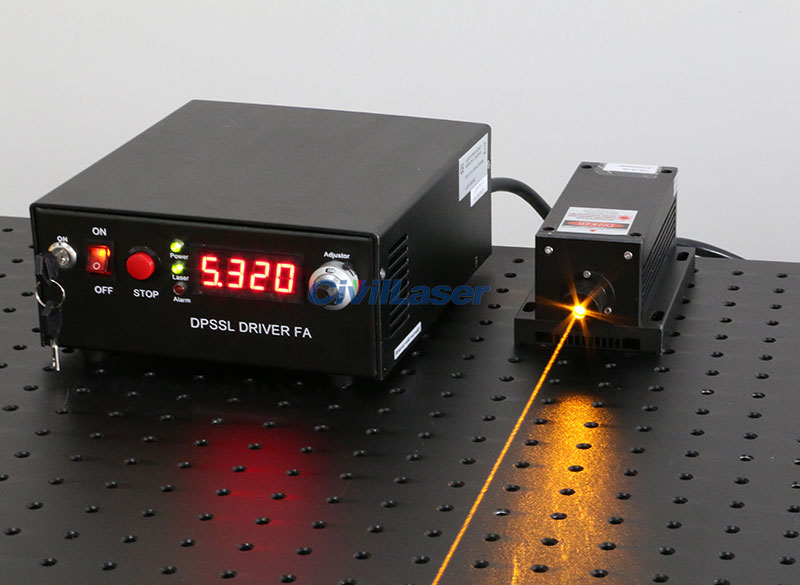

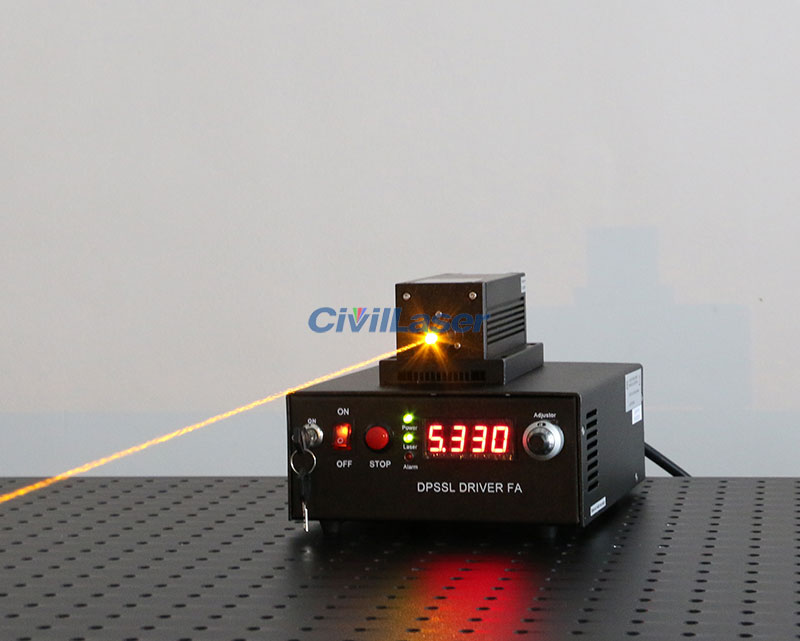

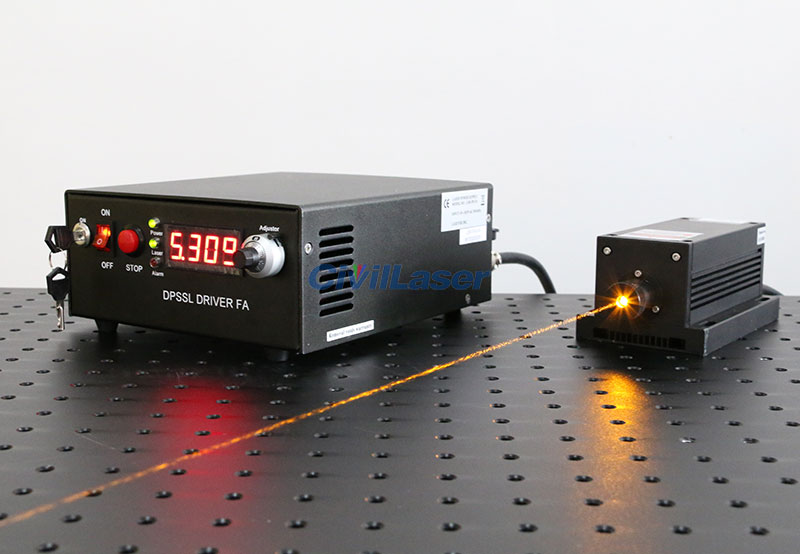

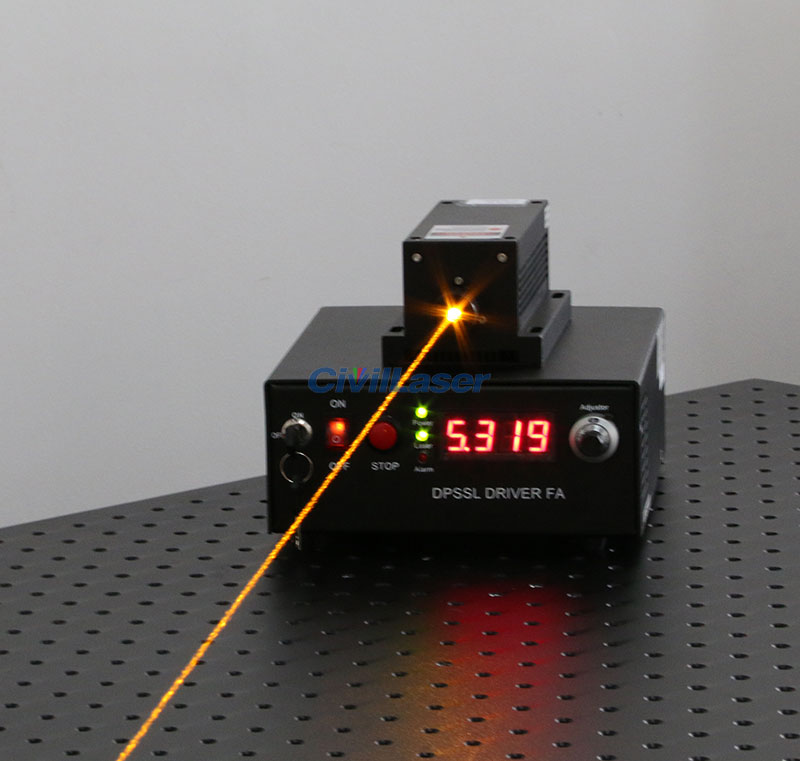

This 589nm Yellow dpss laser include a  power supply.
The Lab power supply include a current adjustor knob, by adjusting the current you can adjust the laser's output power.

[Specification]
Product Name: 589nm DPSS Laser
Lead Time: 4~6 weeks

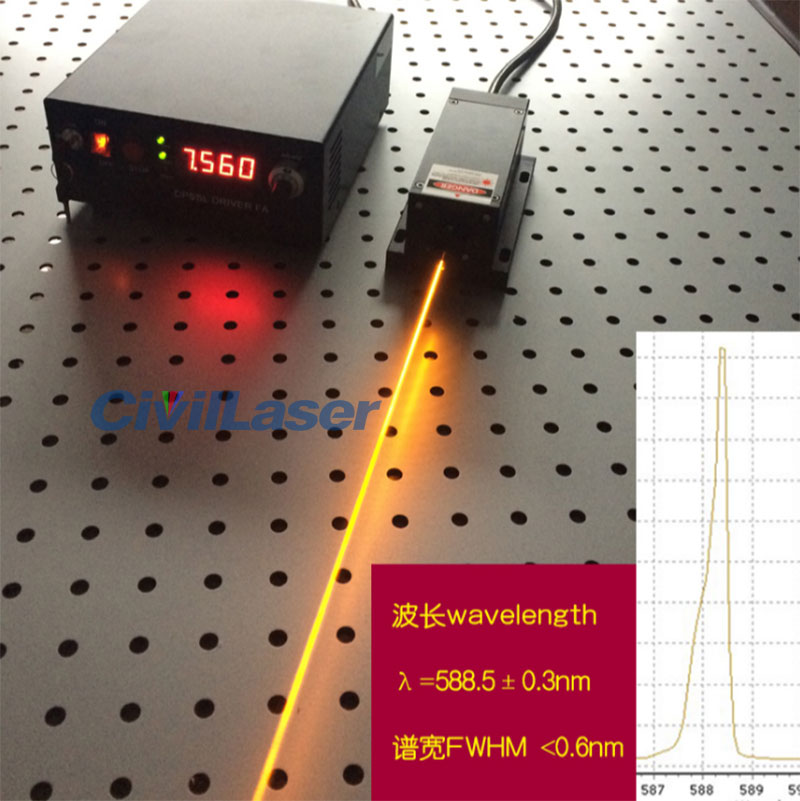

Output Wavelength: 589±1nm
Spatial Mode: near TEM00
Output Power: 300mW
Operation Mode: CW or Modulation
Modulation: Analog /TTL modulation 0~30Khz (choose)
Beam Diameter(1/e²): <3 mm
Beam Divergence (Full Angle): <2  mrad
Beam Height: Near 29mm
Power Stability: <±5% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam Quality (M²): <2
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Laser Head Dimension: Near 167(L)x77(W)x60(H) mm (Click here find detail)
Power Supply: Split type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Split Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Warranty: 1 Year

[PPackage Include]

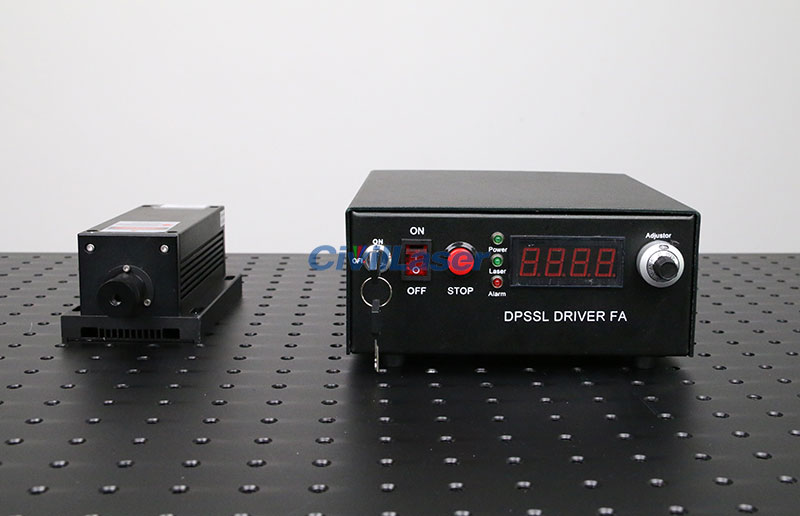

1 x 589nm Laser head
1 x Laser  Power Supply
