Red/Green/Blue Circle With Center Point Pattern Laser Diode Module Φ16x70mm

Red/Green/Blue Circle With Center Point Pattern Laser Diode Module Φ16x70mm

[Features]
Ultra-high brightness, suitable for both indoor and outdoor use;
The light is clear and bright, soft and not dazzling;

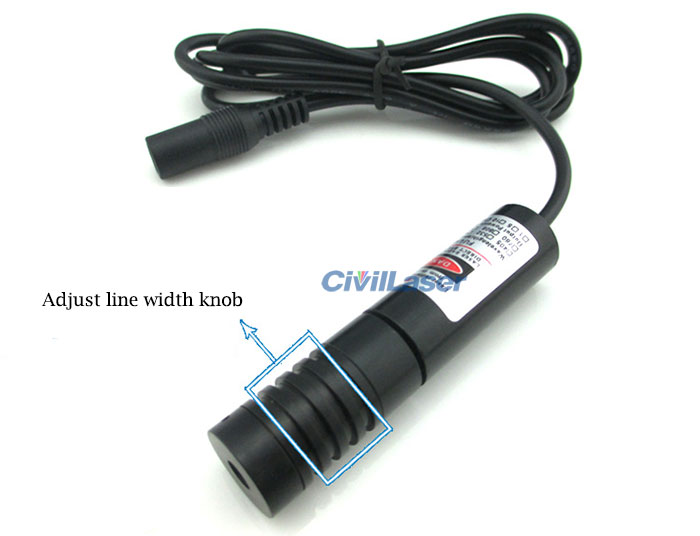

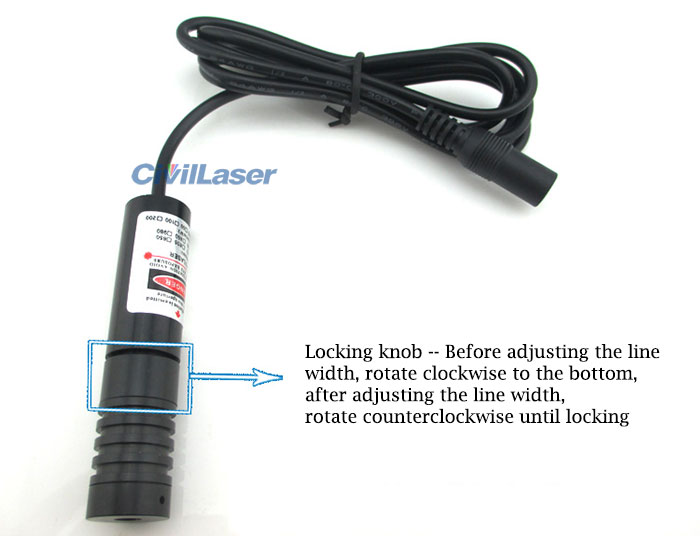

The light thickness is adjustable;
The shell is aviation aluminum plated with insulating paint, which can fully dissipate heat, and is shock-proof, drop-resistant and anti-static;
The stability is particularly high and can be turned on 24 hours a day;
The intelligent driver board with imported IC, 2.8-5.2V ultra-wide range power supply (other voltages can be customized);

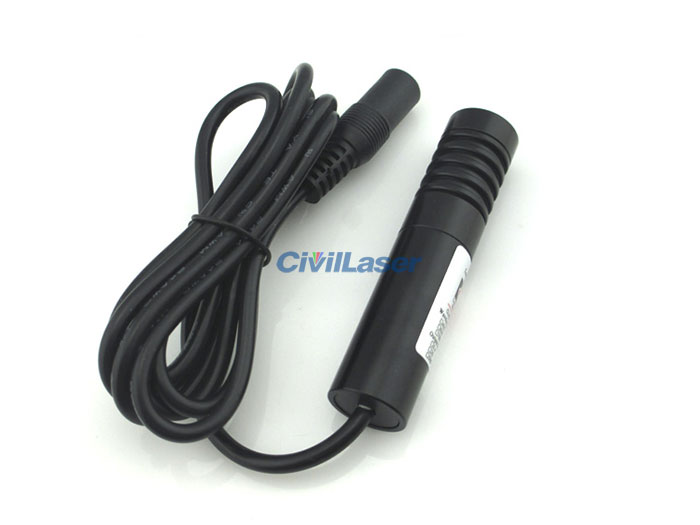

High temperature resistant and corrosion-resistant DC plug line, suitable for all-weather and all-environment use.

[Specification]
Product Name: Laser module
Laser Color: Red / Green / Blue (Choose)
LD Power: 100mW
Laser Shape: Circle With Center Point
Operating Voltage: DC 2.8-5.2V
Operating Current: ＜500mA

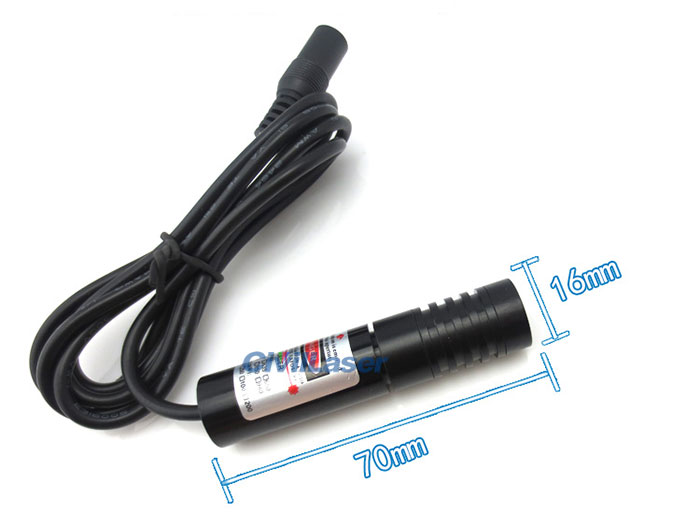

Size: Φ16x70mm (Customizable)
Installation Height: 0-10m
Divergence Angle: 0.575° /1.7° /1.83° /2.06° /2.3° /2.48° /2.56° /2.7° /4.3° /4.52° /5.1° (Choose)

The diameter of a circle at one meter:
0.575°- 10mm
1.7°  - 30mm
1.83° - 32mm
2.06° - 36mm
2.3°  - 40mm
2.48° - 43mm
2.56° - 45mm
2.7°  - 47mm
4.3°  - 75mm
4.52° - 79mm
5.1°  - 89mm

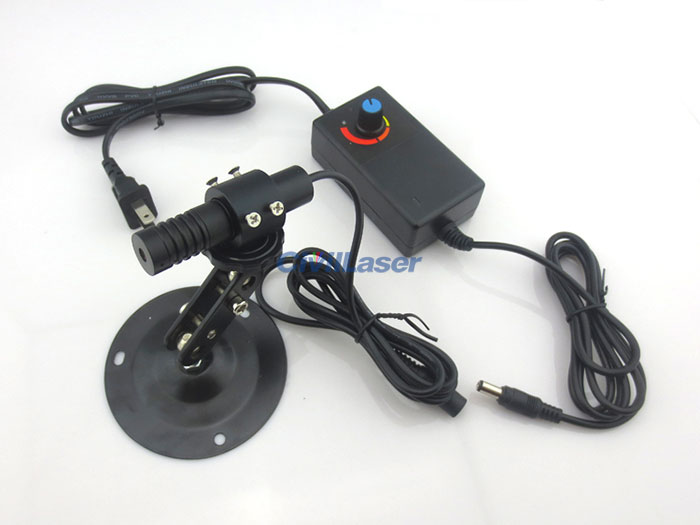

[Package Include]
1 x Laser module
1 x 1-3V Adjustable Power supply
1 x Module holder
