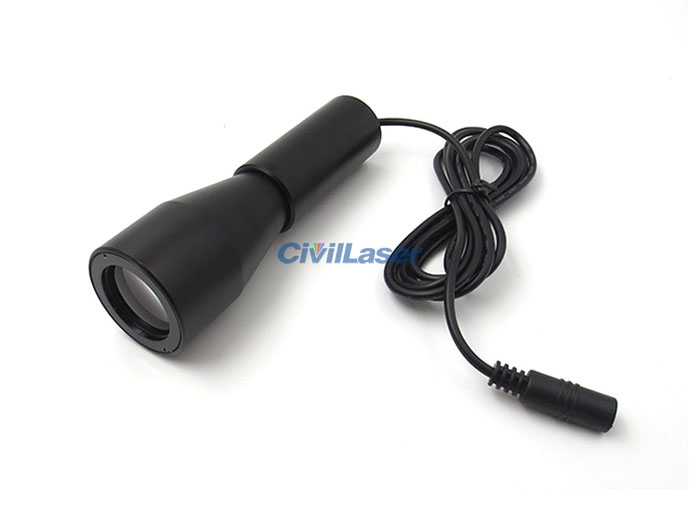

520nm 650nm Laser Module Dot Beam diameter 30mm Parallel light source

520nm 650nm Laser Module Dot Beam diameter 30mm Parallel light source

[Features]
The spot size of 0-50 meters is 30 mm, with the characteristics of small beam divergence angle, high parallelism, full-circle spot, uniform brightness, etc.
High light transmission rate and low light energy loss;
The light spot is clear and bright, and soft and not dazzling;
Intelligent driver board with imported IC, which can be powered in a wide range of 2.8-5.2V;
The interior is filled with heat dissipation silicone and AB glue, which can fully dissipate heat and resist shock and fall;
The outer shell is aviation aluminum plated with insulating paint, which can fully dissipate heat, resist shock and fall and prevent static electricity;

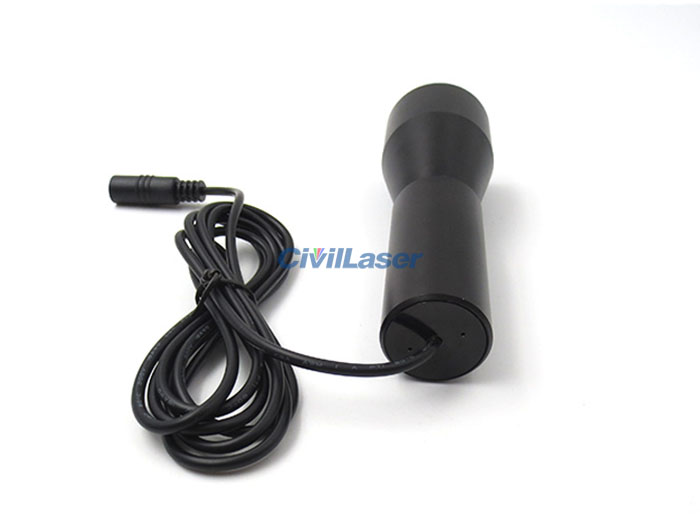

High temperature resistant and corrosion-resistant DC plug line, suitable for all-weather and all-environment use;

[Specification]
Product Name: Laser module
Wavelrngth: 520nm / 650nm (Choose)
Working Voltage: DC 2.8-5.2V (Customizable)
Working Current: ≤300mA

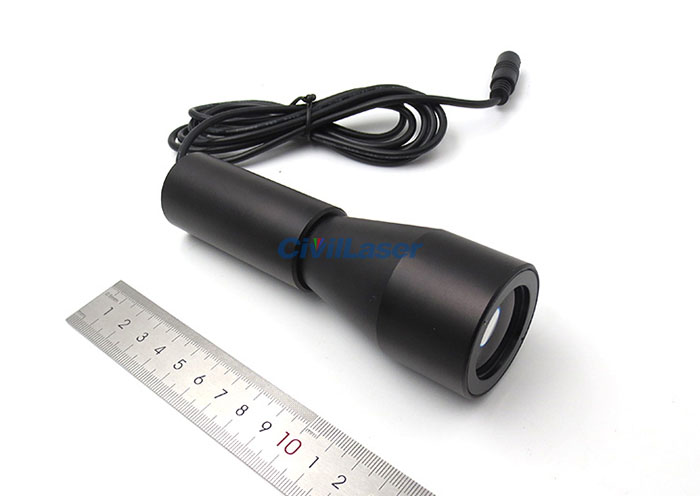

Dimensions: 43*31*138mm (43mm is the front diameter/31mm is the rear diameter/138mm is the length)
Light Spot Mode: perfect circular light spot
Beam Divergence Angle: 0.02mrad
Parallel Beam Diameter: 30mm (Customizable)

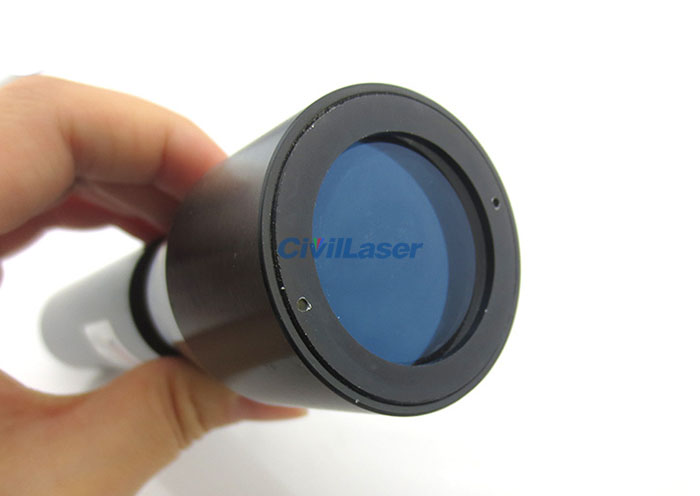

Optical Lens: Optical coated glass lens group imported from Germany

[Package Include]

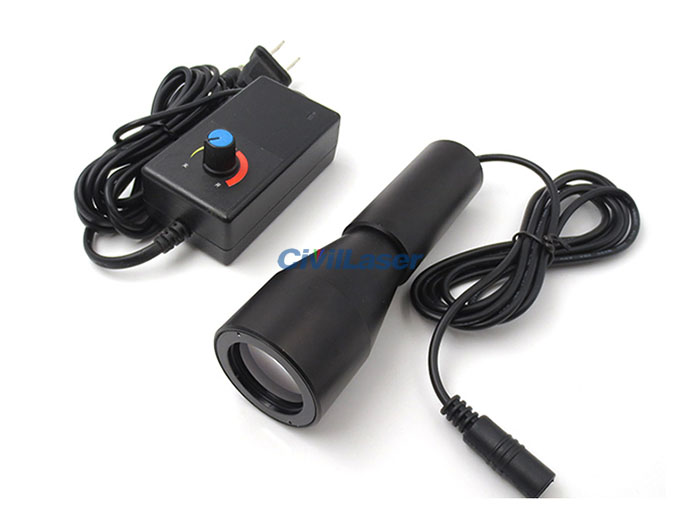

1 x Parallel laser module
1 x 1-3V adjustable power supply
