520nm 50mW 360° Multi-directional Red Laser Module Adjustable Line Laser φ16*70mm

520nm 50mW 360° Multi-directional Red Laser Module Adjustable Line Laser φ16*70mm

[Features]
Adopting imported 360° glass lens, uniform red light line.

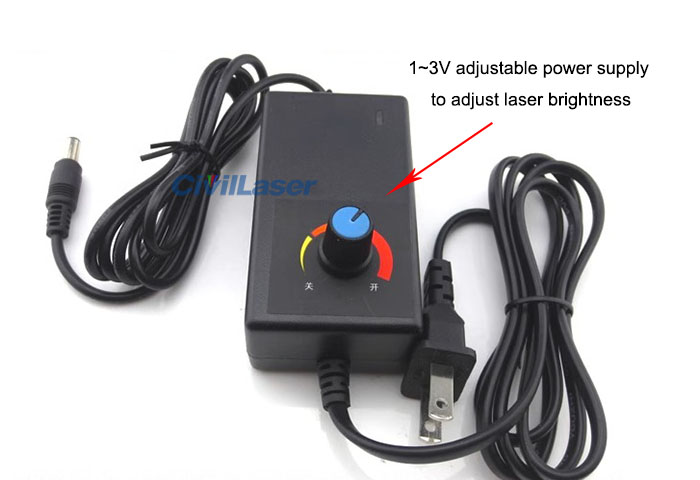

Adopting 1-3V adjustable power supply can adjust the brightness of red line.

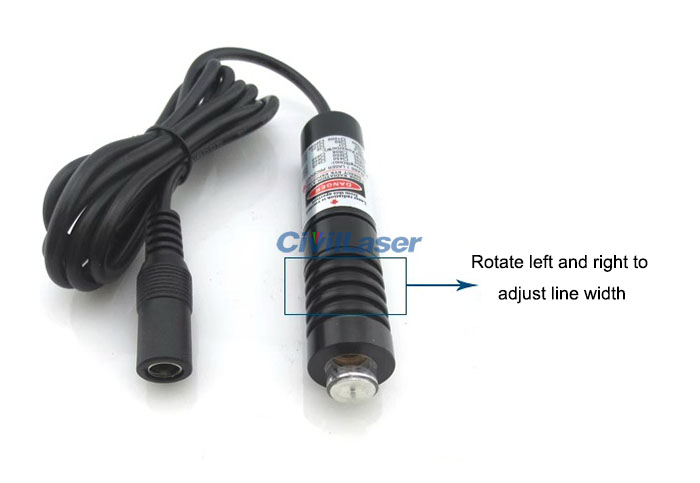

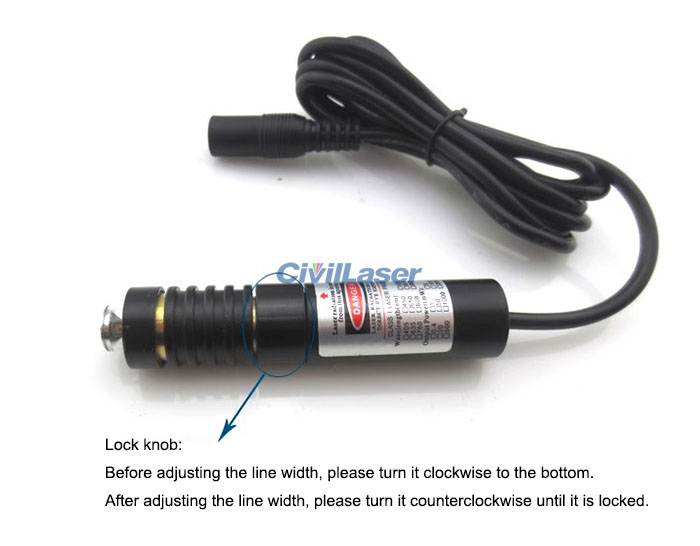

Line width is adjustable.
The shell is aviation aluminum plated with insulating paint, which can fully dissipate heat, resist shock and drop, and prevent static electricity.
Laser diode imported from Germany has high stability and can be turned on 24 hours a day.
Intelligent driver board with imported IC can supply power in ultra-wide range of 2.8-5.2V (other voltages can be customized).

[Specification]
Product Name: Laser Module
Wavelength: 520nm
Output Power: 50mW

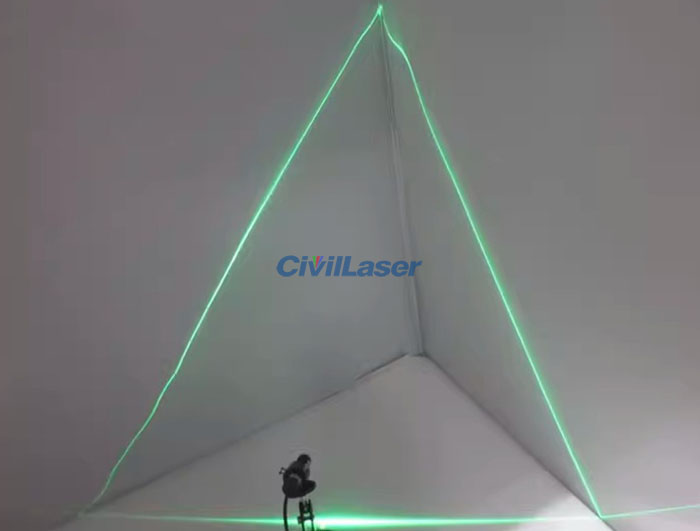

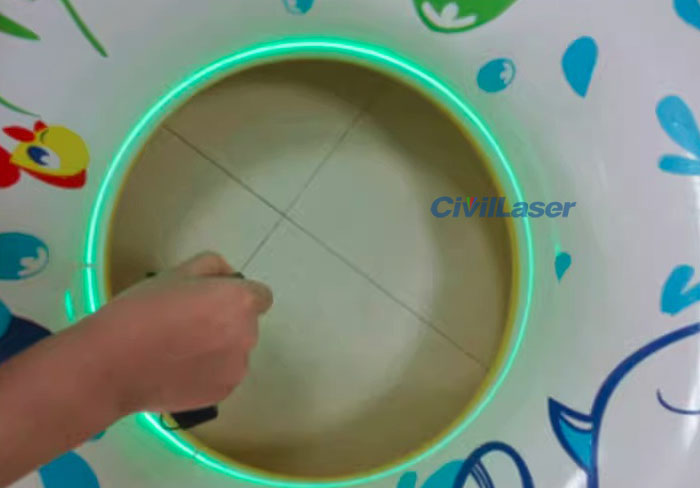

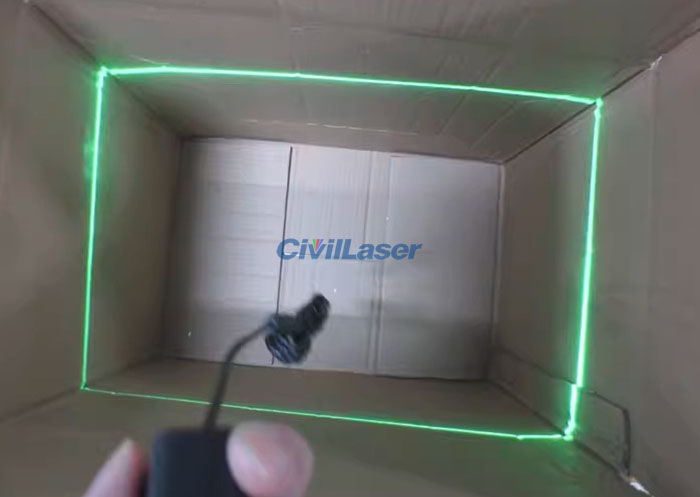

Laser Shape: 360° line
Supply Voltage: DC 2.8-5.2V
Operating Current: ≤400mA

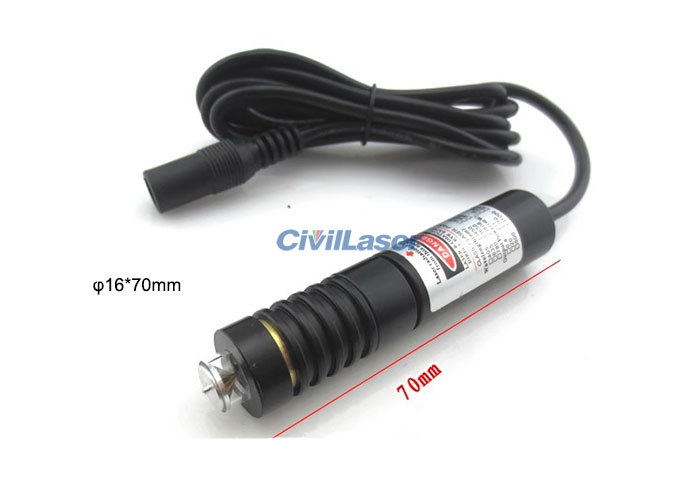

Size: φ16*70mm (Customizable)

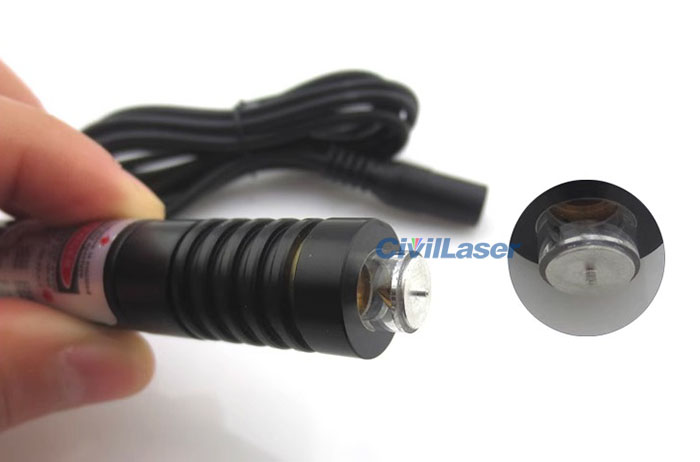

Lens: Original imported 360° glass lens
Excitation Method: Electrically excited laser
Working Medium: Semiconductor laser

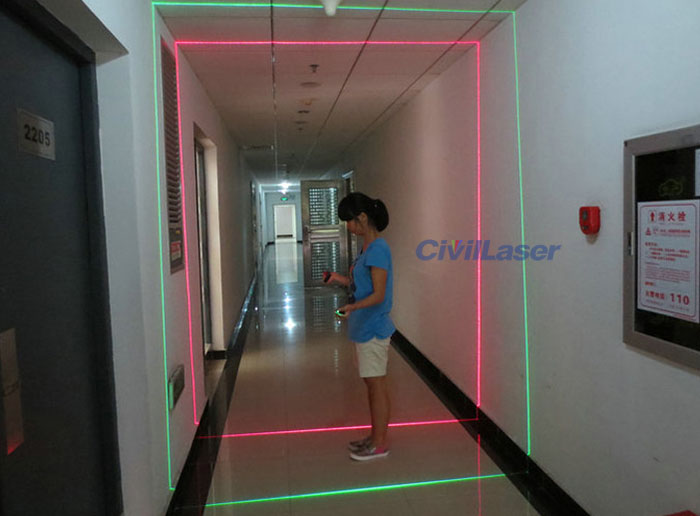

Achievable Line Length: 25m (Indoor)
                                       10m (in semi-outdoors, not in direct sunlight)
                                       5m (Outdoors in direct sunlight)
Installation Height: 0-10m
Structural Features: Laser diode + metal housing + high-quality lens + constant power circuit board + wire

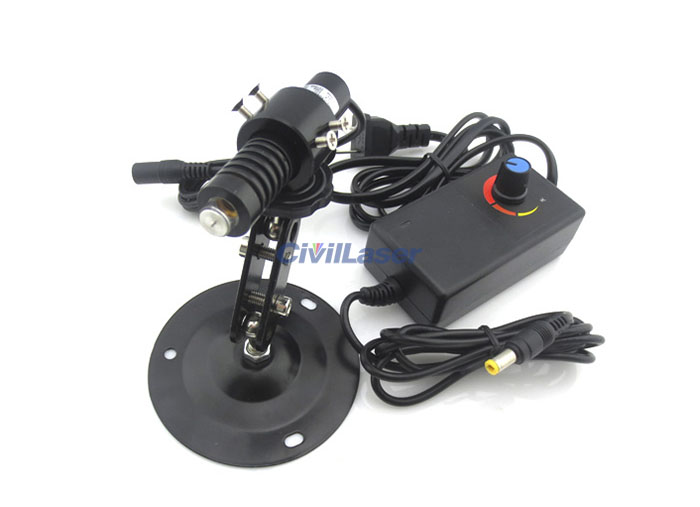

[Package Include]
1 x Laser module
1 x Power supply
1 x Module holder
