EDFA-BiD-C-PA-25-PM-B C-Band 25dB Small Signal Gain Coefficient Bidirectional PM Erbium-doped Fiber Amplifier Benchtop
C-band bidirectional polarization-maintaining erbium-doped fiber amplifier is a fiber amplifier product series dedicated to polarization-maintaining fiber systems. It has the advantages of full polarization maintenance, bidirectional operation, high gain, and high power. It supports host computer software control, is compact and easy to integrate. It can provide desktop or modular packaging according to customer needs, and accepts parameter customization.
[Features]
Bidirectional operation
High gain factor
High output power
[Applications]
Optical fiber communication
Optical fiber sensing
Fiber laser
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
EDFA-BiD-C-PA-25-PM-M
|
|
|
Wavelength Range
|
nm
|
1530~1565
|
C-band
|
|
Input power
|
dBm
|
-30~-20
|
|
|
Small Signal Gain Factor
|
dB
|
≥25
|
@-30dBm input
|
|
Noise Figure
|
dB
|
≤5
|
|
|
Polarization Extinction Ratio
|
dB
|
23(Type)，20(Min)
|
Slow axis operation, fast axis cutoff.
|
|
Optical Power Monitoring
|
--
|
Input/Output optical power monitoring
|
|
|
Pigtail Fiber Type
|
--
|
PM1550 polarization maintaining fiber
|
L=1m
|
|
Fiber Interface Type
|
--
|
FC/APC
|
slow axis alignment
|
|
Work Mode
|
--
|
Automatic current control (ACC) / Automatic Power Control (APC)
|
|
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Wavelength Range
|
nm
|
1530~1565
|
C-band
|
|
Input power
|
dBm
|
-6~+3
|
|
|
Saturated Output Power
|
dBm
|
23
|
@-3dBm input
|
|
Noise Figure
|
dB
|
<5.5
|
|
|
Polarization Extinction Ratio
|
dB
|
23(Type)，20(Min)
|
Slow axis operation, fast axis cutoff.
|
|
Input/Output Isolation
|
dB
|
>35
|
|
|
Optical Power Monitoring
|
--
|
Output optical power monitoring
|
|
|
Pigtail Fiber Type
|
--
|
PM1550 polarization maintaining fiber
|
L=1m
|
|
Fiber Interface Type
|
--
|
FC/APC
|
slow axis alignment
|
|
Work Mode
|
--
|
Automatic current control (ACC) / Automatic Power Control (APC)
|
|
|
Electrical and environmental parameters
|
Desktop Type
|
|
Control method
|
Button
|
|
Communication interface
|
DB9 Female (Default not include)
|
|
Power supply
|
100~240V AC, <30W
|
|
Size
|
260(W)×280(D)×120(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|

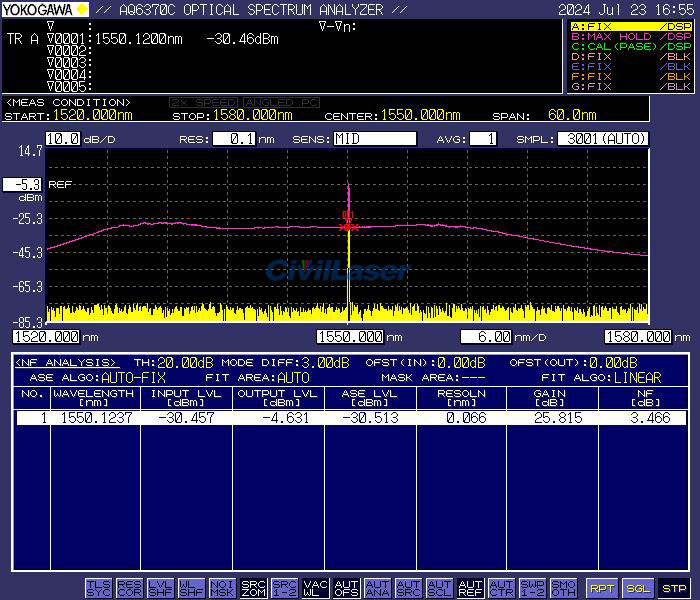

EDFA-C-BiD-PA-25-PM, output spectrum at 25dB gain @-30dBm input:
