FLH-1120-40-SM-B 1120nm 40dBm 10W High Power SM Fiber Laser Source Benchtop
This laser uses a butterfly-shaped semiconductor laser chip, and professionally designed drive and temperature control circuits to ensure the safe operation of the laser, stable output power and spectrum. It is suitable as a seed laser for high-power lasers and can also be used for production testing of optical devices.
[Features]
High output power
Power and spectral stability
Single-mode output
[Applications]
Seed Laser
Fiber Laser
Optical device testing
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
FLH-1120-40-SM-B
|
|
|
Working Wavelength
|
nm
|
1120
|
|
|
Wavelength Accuracy
|
nm
|
±2
|
|
|
Spectral Width
|
nm
|
<0.1
|
|
|
Working Mode
|
--
|
CW
|
|
|
Output Power
|
W
|
10
|
|
|
Power Adjustable Range
|
--
|
10~100%
|
Optional functions
|
|

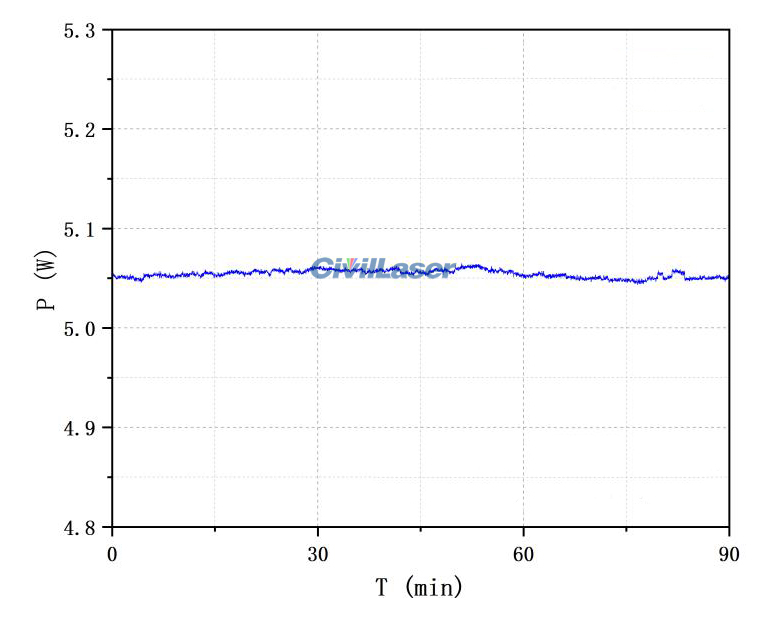

Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent ≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent ≤±1.2%
|
|
Polarization State
|
--
|
Random polarization
|
|
|
Pigtail Type
|
--
|
Hi 1060 Single mode fiber
|
L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|
Desktop Type
|
|
Control Method
|
Touch screen/RS232 serial communication
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
|
Power Supply
|
100~240V AC, <30W
|
|

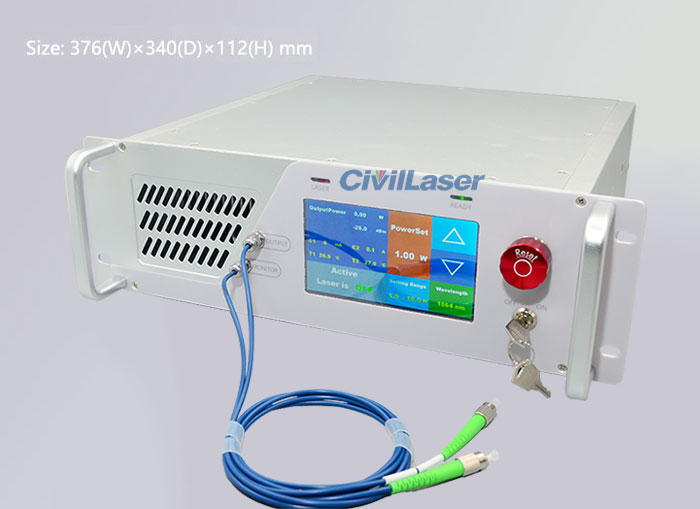

Size
|
376(W)×340(D)×112(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
