266nm 10mW LD Pumped All-Solid-State UV Passively Q-switched Pulsed Laser MPL-Q-266-10mW
All solid state UV laser is made features of ultra compact, long lifetime, cost -effectiveness and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc.
[Specification]
Product Name: 266nm Q-switched Laser
Model: MPL-Q-266-10mW
Lead Time: 8~10 weeks
| Wavelength(nm) |
266±1 |
| Operating mode |
Frequency conversion of Q-switched pulsed laser |
| Max average power (mW) |
10 |
| Single pulse energy (µJ) |
0.1~3 |
| Pulse duration (ns) |
~4 |
| Peak power(kW) |
0.25~0.75 |
| Rep. rate (kHz) |
INT FIXED (One internal fixed rep.rate) |
3k-5kHz (Optional) |
| EXT TRIG (External triggered) |
3k-5kHz (Default) |
| QCW |
Between 9k-12kHz |
| Ave power stability (over 4 hours) |
<5% |
| Transverse mode |
Near TEM00, Elliptical |
| M² factor |
<2 |
| Beam diameter at the aperture(mm) |
~1.0 |
| Polarization ratio |
>50:1, Horizontal (Vertical Optional) |
| Warm-up time (minutes) |
<5 |

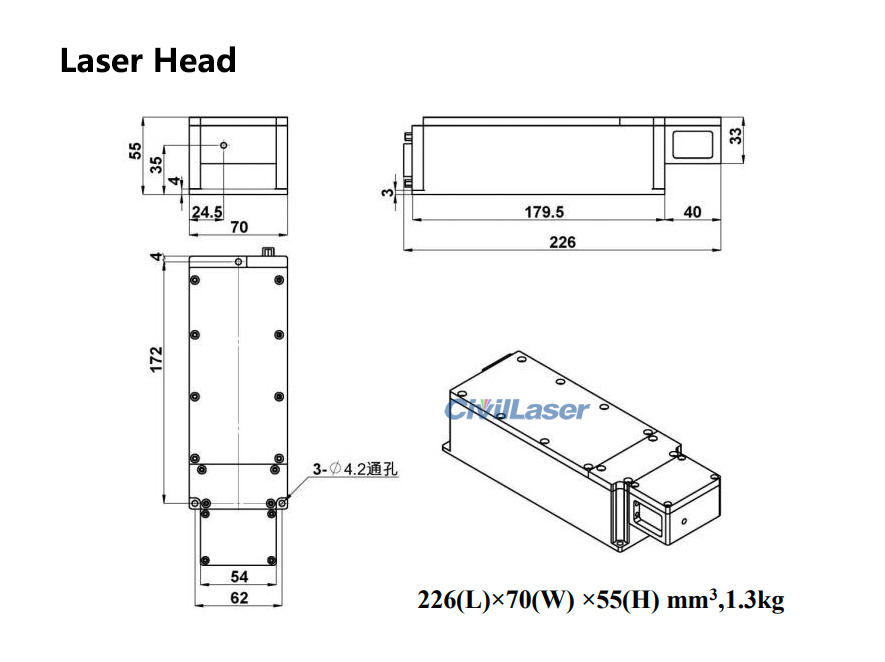

| Beam height from base plate (mm) |
Near 35 |
| Operating temperature (℃) |
10~35 |
| Power supply (90-264VAC) |
PSU-H-LED/PSU-H-FDA |
| Warranty period |
1 year |
Note:
1. Average power (mW)= Single pulse energy (μJ)* Rep. rate(kHz)
2. Because of the Walk-off effect of Nonlinear crystals, the beam quality of UV laser is not so good as that of 1064/532nm laser.
3. The laser head needs to be used on a heat sink with good heat dissipation.
