261nm 1~200mW UV LD Pumped All-Solid-State Laser DPSS Laser System with Water Chiller

261nm 1~200mW UV LD Pumped All-Solid-State Laser DPSS Laser System with Water Chiller

All solid-state CW mode UV laser is made features of ultra compact, easy operating, high power and staiblity, which is perfect for flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, , physics experiment, etc.

[Specification]

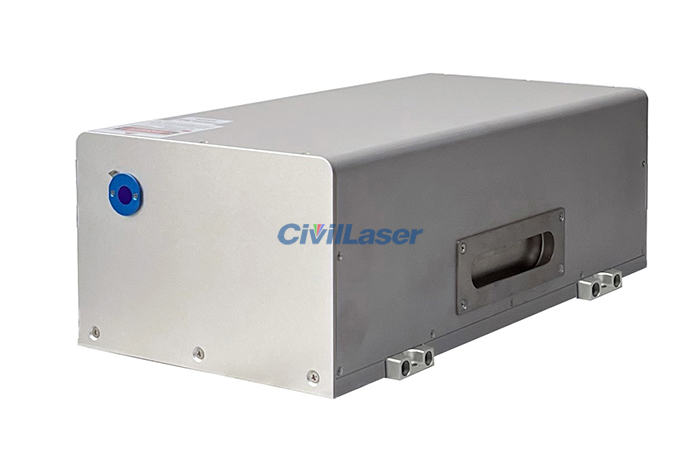

Product Name: 261nm DPSS Laser
Model: UV-DP-261-200mW-B
Lead Time: 6~8 weeks
Wavelength: 261±1 nm
Output Power: 1~200mW
Power stability (rms, over 4 hours): <3%
Transverse mode: Near TEM00
Beam diameter at the aperture (1/e²): <3.0 mm
Beam divergence, full angle: <3 mrad
Warm-up time: <10 minutes
Polarization Ratio: >50:1, Horizontal (Vertical Optional)
Beam height from base plate: Near 94 mm

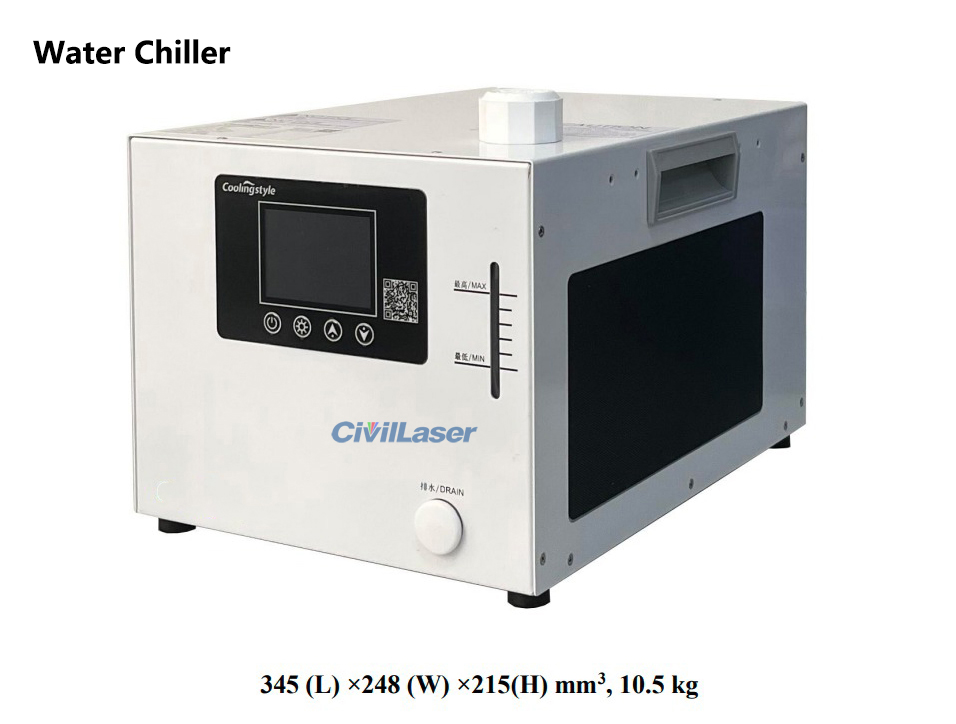

Cooled method: Water Cooled
Operating temperature: 10~35℃

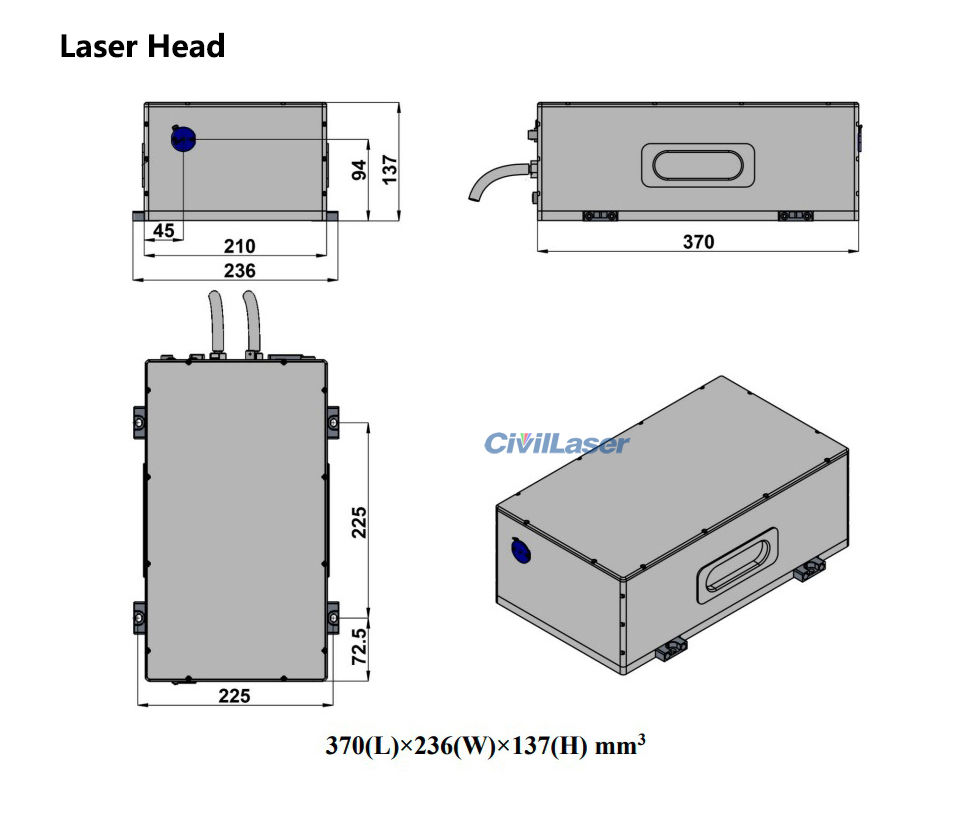

Laser Head Size: Near 370(L)×236(W)×137(H) mm³
Power supply: 12V DC (Photoelectric integrated)
Warranty: 1 year
