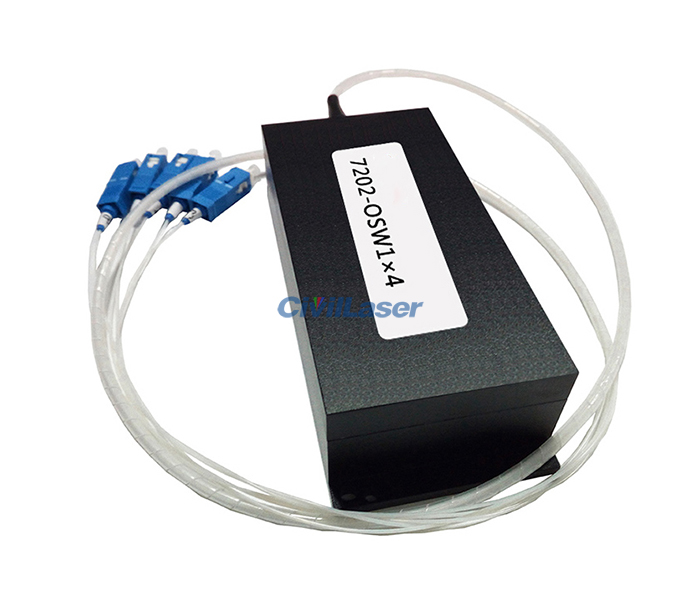

Optical Switch 1x4 Serial RS232 Mechanical Fiber Optic Switch SM/MM Fiber Customizable

Optical Switch 1x4 Serial RS232 Mechanical Fiber Optic Switch SM/MM Fiber Customizable

Multi-channel mechanical optical switch is a kind of optical path control device, which plays the role of controlling and switching optical paths. It plays an important role in optical communication applications. Optical switches are mainly used in: multi-channel optical monitoring in optical transmission systems, automatic switching of multiple light sources/detectors in LAN, and multi-point dynamic monitoring systems of optical sensors; optical testing systems for optical fibers, optical devices, networks and field engineering optical beam testing, and optical device adjustment. 1xN optical switch can switch one input route to any one of N output routes.

Note: This is a customized product, the price varies according to the customized parameters. If you need to customize other models of optical switches, please contact us.

[Features]
1X4 channel number, the number of channels can be customized, up to 128 channels;
Low loss, high reliability;
Simple parallel interface control;
Modular design.

[Applications]
Multi-channel optical monitoring in optical transmission systems;
Automatic switching of LAN multi-light source detectors, optical sensing multi-point dynamic monitoring systems;
Optical fiber, optical device, network and field engineering optical cable testing in optical test systems;
Optical device installation and adjustment.

[Specicifcation]
Product Name: Optical switch
Channel Number: 1X4 (Customizable)

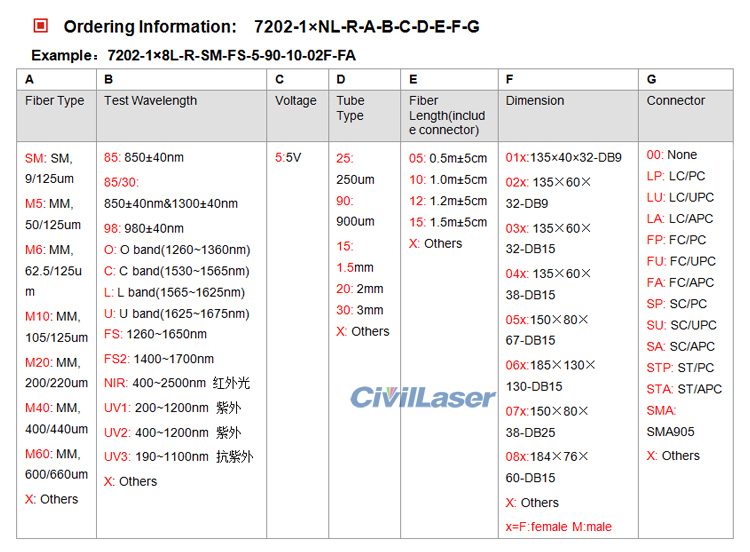

Model: 1X4L-R-SM-FS-5-90-10-02F-FA, 1X4L-R-SM-FS-5-90-10-02F-FU, 1X4L-R-SM-FS-5-90-10-02F-LU,
            1X4L-R-M5-85-5-90-10-02F-LU, 1X4L-R-M6-85-5-90-10-02M-LU, 1X4L-R-M6-FS2-5-90-10-02M-FU,
            1X4L-R-M10-NIR-5-90-05-08M-FU,
            1X4L-R-M20-NIR-5-15-05-08M-FU, 1X4L-R-M20-NIR-5-15-05-08M-SMA,
            1X4L-R-M40-NIR-5-15-05-08M-FU, 1X4L-R-M40-NIR-5-15-05-08M-SMA,
            1X4L-R-M60-NIR-5-15-05-08M-FU, 1X4L-R-M60-NIR-5-15-05-08M-SMA,
