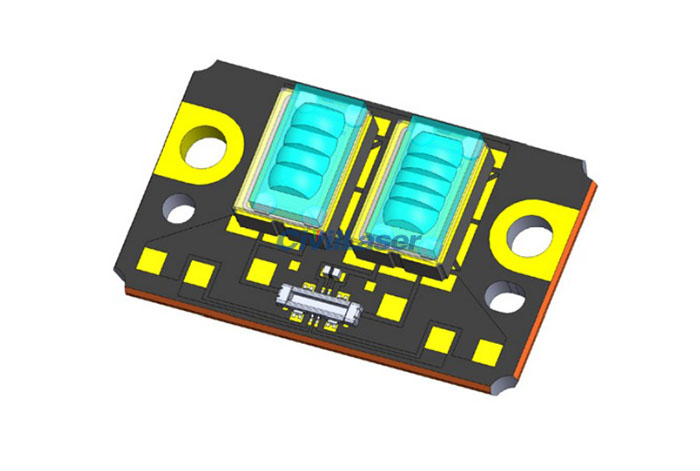

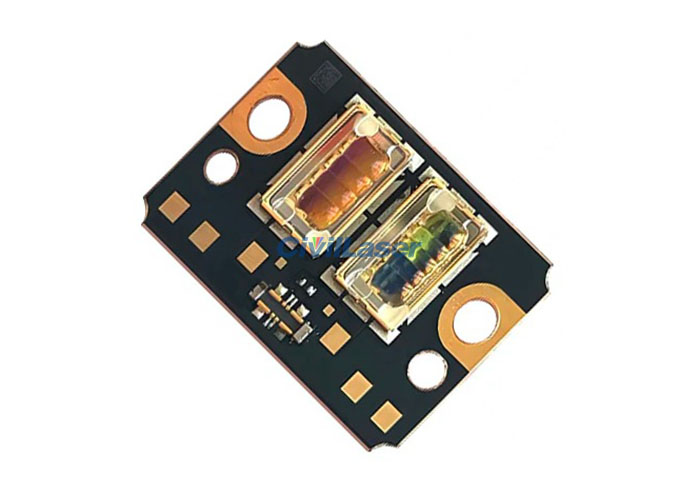

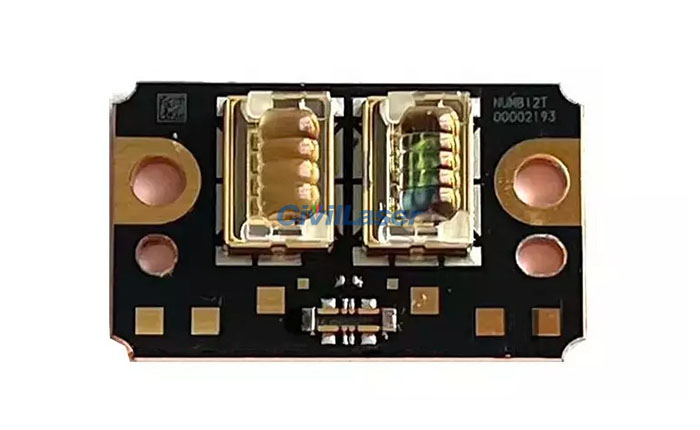

Nichia 643nm 525nm 465nm RGB Laser Diode Array NUMB12 Integrated Module

Nichia 643nm 525nm 465nm RGB Laser Diode Array NUMB12 Integrated Module

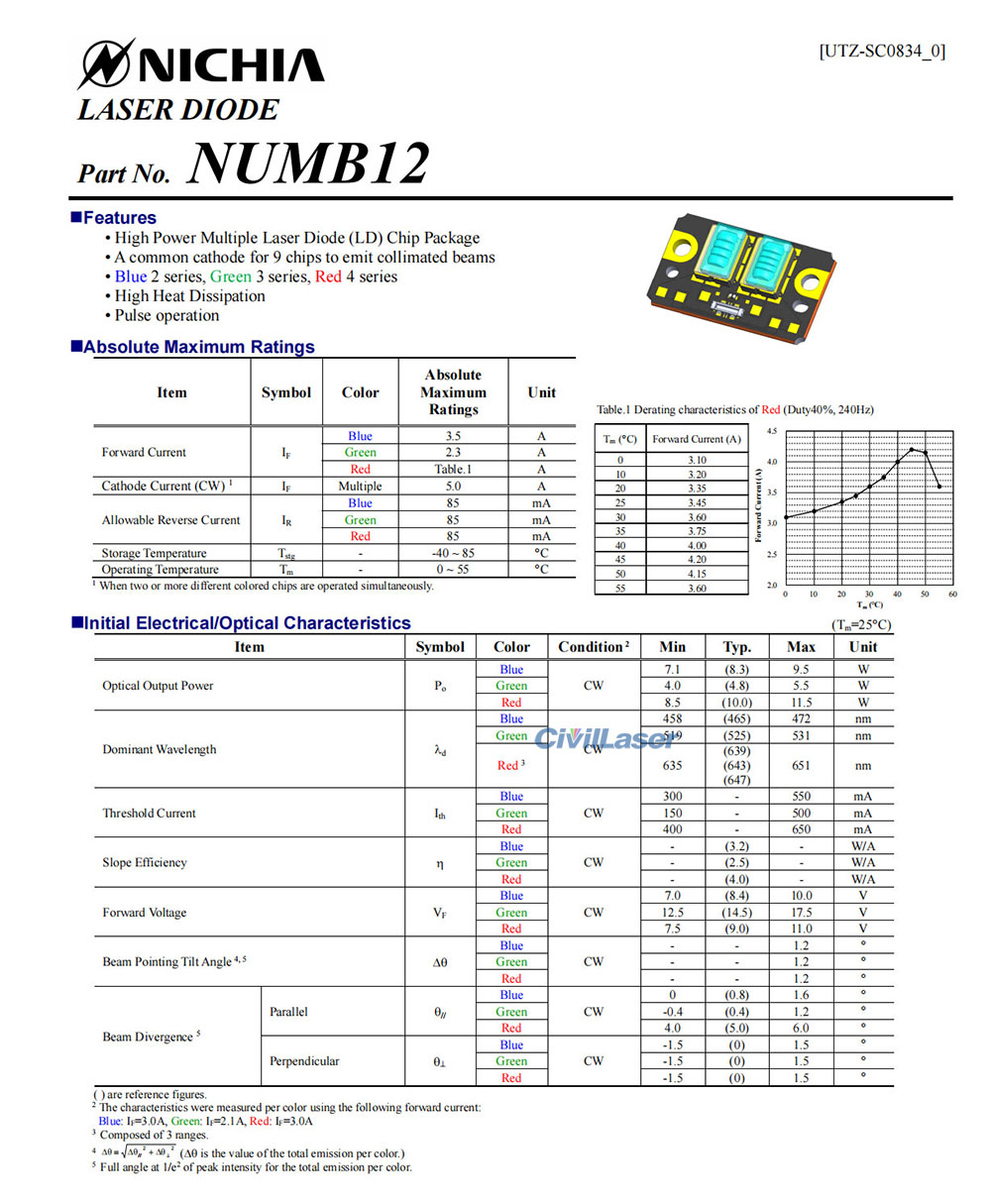

[Features]
High power multiple laser diode(LD) chip package
A common cathode for 9 chips to emit collimated beams
Blue 2 series, Green 3 series, Red 4 series
High heat dissipation

[Specification]
Product Name: RGB Laser diode
Model NO: NUMB12
Wavelength: Red: 643nm, Green: 525nm, Blue: 465nm
Output Power: R: 8.3W, G: 4.8W, B: 10W
Operating Temperature: -40~85℃
Storage Temperature: 0~55℃
