520nm 3000mW Green Fiber Coupled Laser CW/TTL/Analog Modulation

520nm 3000mW Green Fiber Coupled Laser CW/TTL/Analog Modulation

[Specifications]
Product Name: 520nm Fiber coupled laser
Lead Time: 1~3 weeks, Custom product available!
Output Wavelength: 520±5 nm
Output Power: 3W
Operating Mode: CW or Modulation
Power Stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <1 minute
MTTF(mean time to failure): 10,000 hrs
Fiber Type: Multi-mode fiber/MM fiber
Fiber Core Diameter: 100μm/200μm/400μm/600μm/800μm/1000μm (Choose)
Fiber Numerical Aperture:0.22NA(100μm~400μm)/0.37NA(600μm~1000μm)
Fiber Interface(Output): FC/PC, FC/APC, SMA905 (Choose)
Fiber Length: 1m/2m/3m (Choose)
Laser Head Dimension: Near 145(L)*64(W)*70(H)mm3 (Click here find detail)
Power Supply: Split type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Split Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30kHz Analog or TTL
Warranty: 1 Year

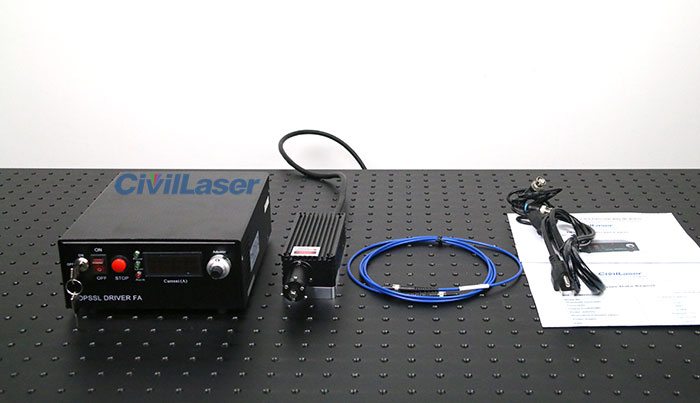

[Package List]
1 x 520nm laser head
1 x Power supply
1 x Optical fiber

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.
