637nm 1200mW Red Laser Diode Module Ultra Bright Focus Adjustable Dot/Line/Crosshair Φ22*110mm

637nm 1200mW Red Laser Diode Module Ultra Bright Focus Adjustable Dot/Line/Crosshair Φ22*110mm

[Features]

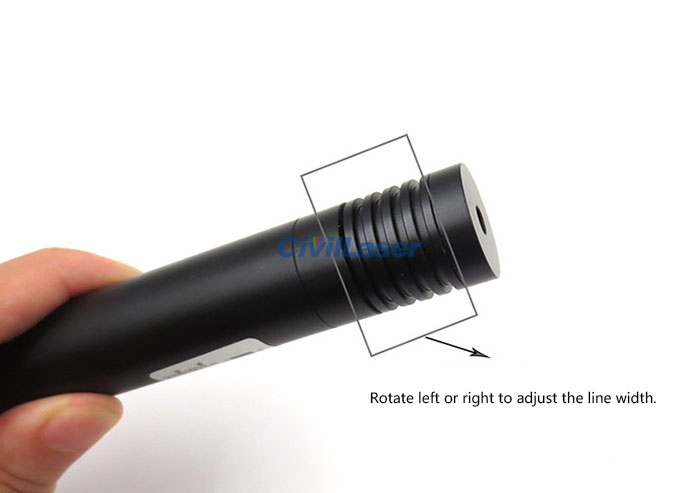

The dot/line is clear and bright, soft and not dazzling, the size of the light spot and the line width are adjustable;
The angle of the line/cross lens is optional from 5°~120°;
The new imported tube core + special lens has high light transmission rate and small light energy loss;
The intelligent driver board with imported IC can be powered in a wide range, and other voltages can be customized;
The interior is filled with heat dissipation silicone and AB glue, which can fully dissipate heat and resist shock and fall;
The outer shell is aviation aluminum plated with insulating paint, anti-static;
High temperature resistant and corrosion resistant wires are suitable for all-weather and all-environment use;

[Specification]

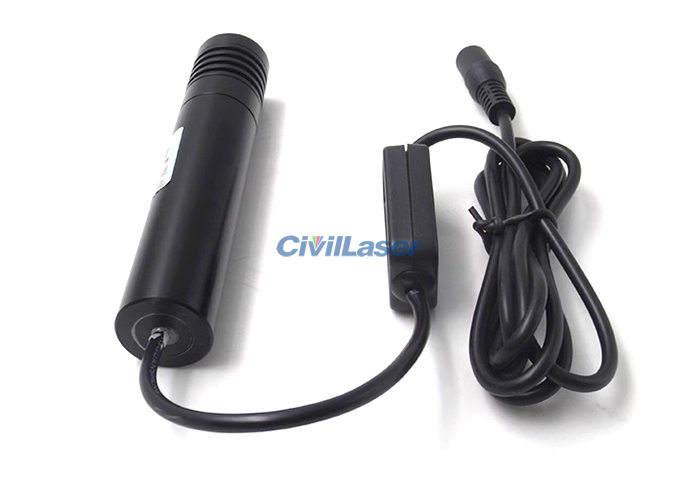

Product Name: Laser Module
Wavelength: 637nm
Output Power: 1200mW
Laser Shape: Dot / Line / Crosshair (Choose)
Operating Voltage: DC 9-25V
Operating Current: ≤1500mA

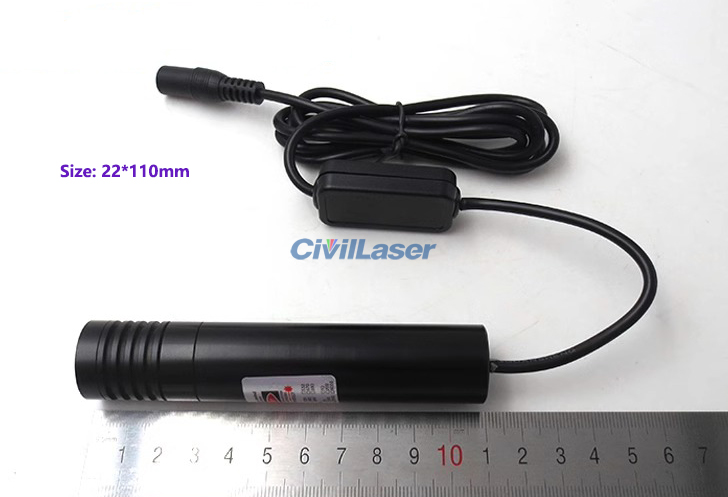

Size: 22*110 mm

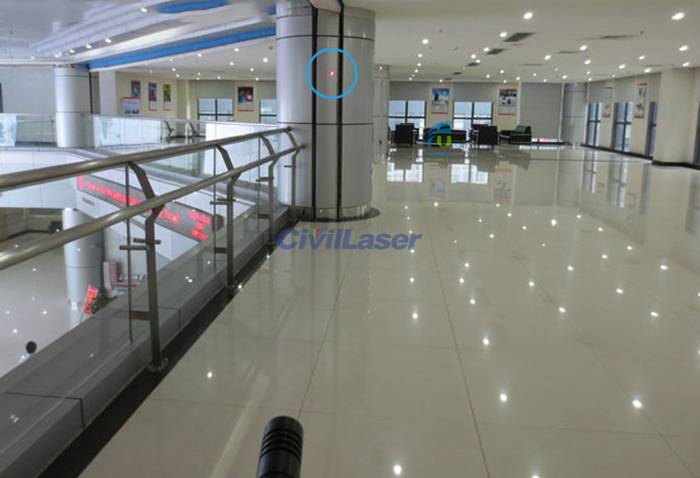

Dot module working distance:
Indoors during daylight: 0-4500 meters
Outdoors during daylight: 0-1000 meters
In dark environments: 0-6000 meters

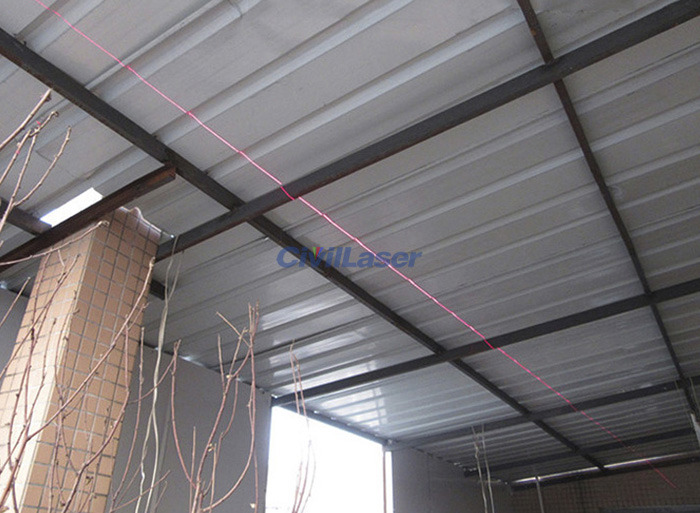

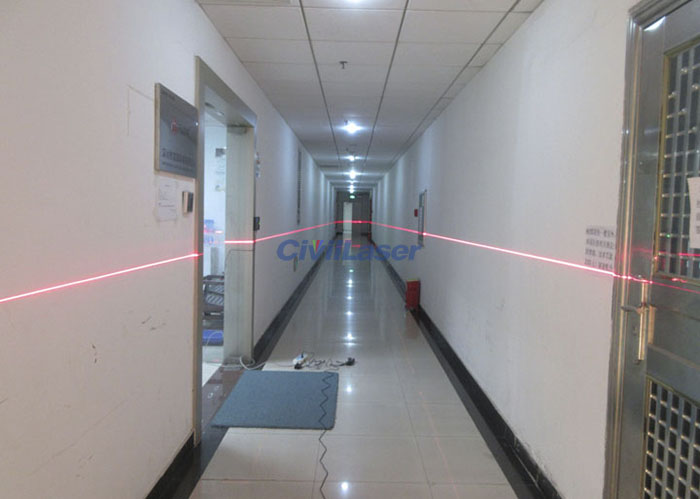

Line length of line laser module:
Indoor working environment: Up to 35 meters
Semi-outdoor (not in direct sunlight): Up to 15 meters
Outdoor (in direct sunlight): Up to 7.5 meters
Installation height: 0-25 meters

Line length of crosshair laser module:
Indoors: Up to 18 meters
Semi-outdoors (not in direct sunlight): Up to 10 meters
Outdoors (in direct sunlight): Up to 5 meters
Installation height: 0-25 meters

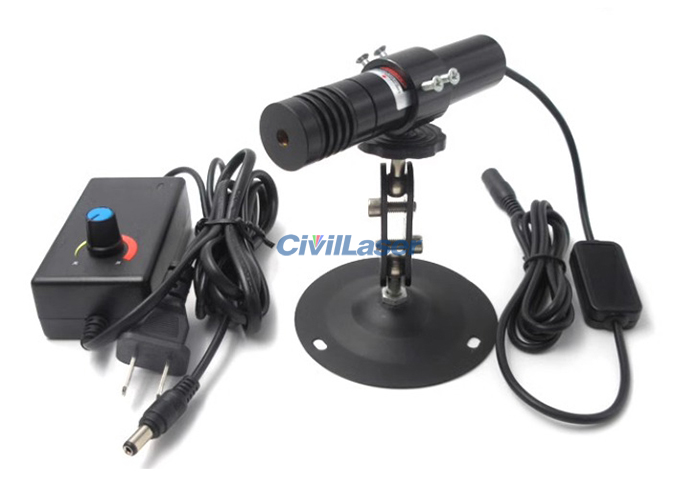

[Package Include]
1 x Laser module
1 x Power supply
1 x Laser holder
