905nm 25W Laser Chip 75μmx10μm Aperture Size 0.75mm Cavity Length Single Emitter 905C-75-25-0.75-SE

$6.00

Add to Cart:
Min:  20

905nm 25W Laser Chip 75μmx10μm Aperture Size 0.75mm Cavity Length Single Emitter 905C-75-25-0.75-SE

[Features]
High laser power
High efficiency.
Excellent beam characteristics.
Long lifetime, high reliability.

[Applications]
LiDAR
Measuring instruments
Security
Scientific rersearch

Note:
1. Lead time: Some chips are in stock, and it will take 2 to 3 weeks if there is no stock.
2. Wholesale price: >100 pcs order, please contact us, the price has a bigger discount.
3. Country of origin: Made In China

[Specifications]

Parameters

Symbol

Min.

Typical

Max.

Unit

Operation

Center wavelength

λ

895

905

915

nm

Output power

Po



25



W

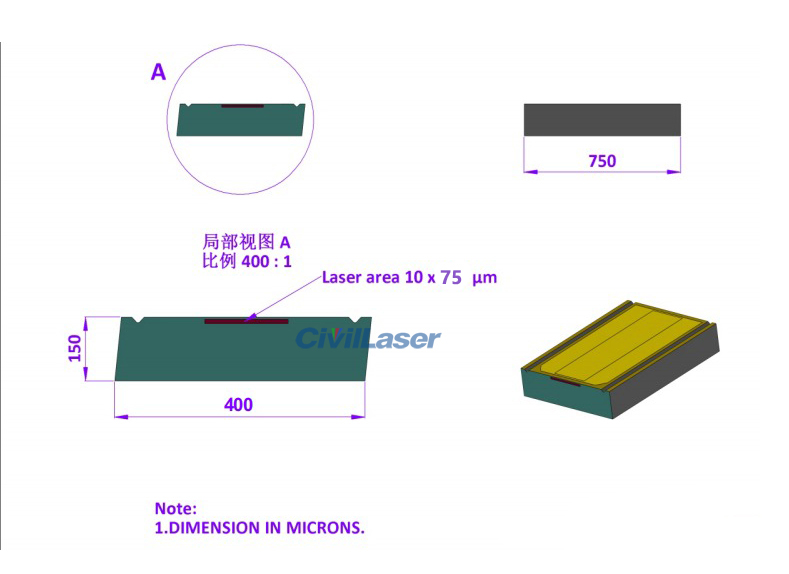

Geometrical

Optical aperture size

w x h



75x10



μm²

Cavity length

L



750



μm

Chip width

W



400



μm

Chip height

H



150



μm

Electro Optical Data

Threshold current

Ith



0.5



A

Operating current

Iop



7



A

Operating voltage

Vop



7



V

Slow axis divergence FWHM

θ∥



12



degrees

Fast axis divergence FWHM

θ⊥



30



degrees

Spectral width FWHM

△λ



7



nm

Wavelength temperature coefficient

Δλ/ΔT



0.28



nm/℃
