1550nm 4W Laser Chip 96μm Emission Width 2mm Cavity Length Single Emitter 1550A-96-4-2-SE

$35.00

Add to Cart:
Min:  20

1550nm 4W Laser Chip 96μm Emission Width 2mm Cavity Length Single Emitter 1550A-96-4-2-SE

[Features]
High laser power
High efficiency.
Excellent beam characteristics.
Long lifetime, high reliability.

[Applications]
Laser Display
Laser Illumination
Medical & Cosmetics
Scientific Research

Note:
1. Lead time: Some chips are in stock, and it will take 2 to 3 weeks if there is no stock.
2. Wholesale price: >100 pcs order, please contact us, the price has a bigger discount.
3. Country of origin: Made In China

[Specifications]

Parameters

Symbol

Min.

Typical

Max.

Unit

Operation

Center wavelength

λ



1550



nm

Output power

Po

3.6

4



W

Operation mode





CW

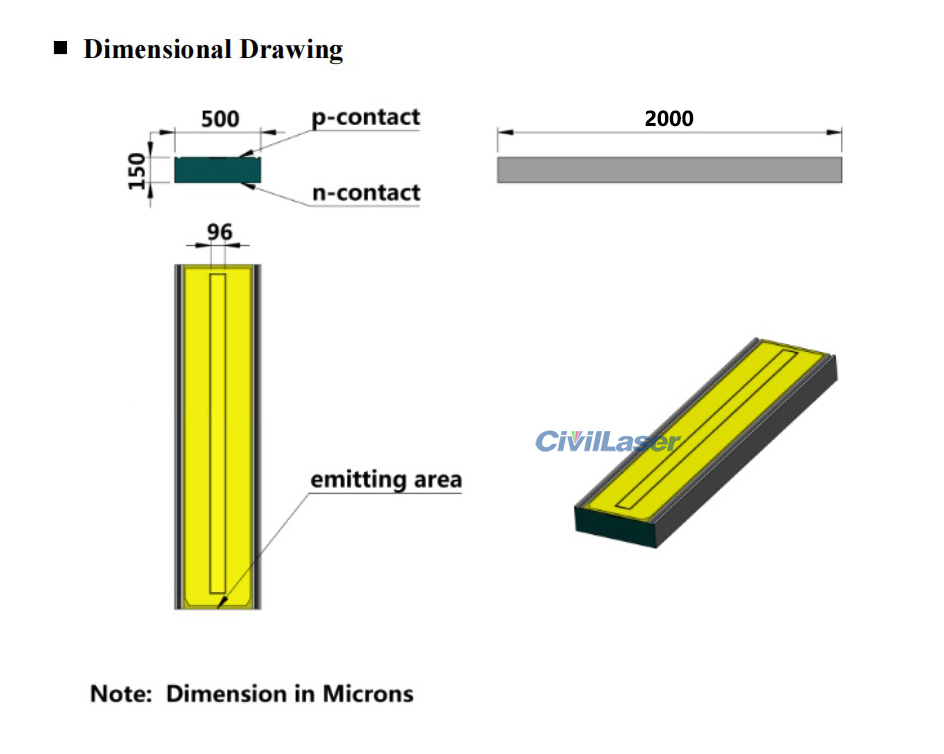

Geometrical

Emitter width

w



96



μm

Cavity length

L



2000



μm

Chip width

W



500



μm

Chip height

H



150



μm

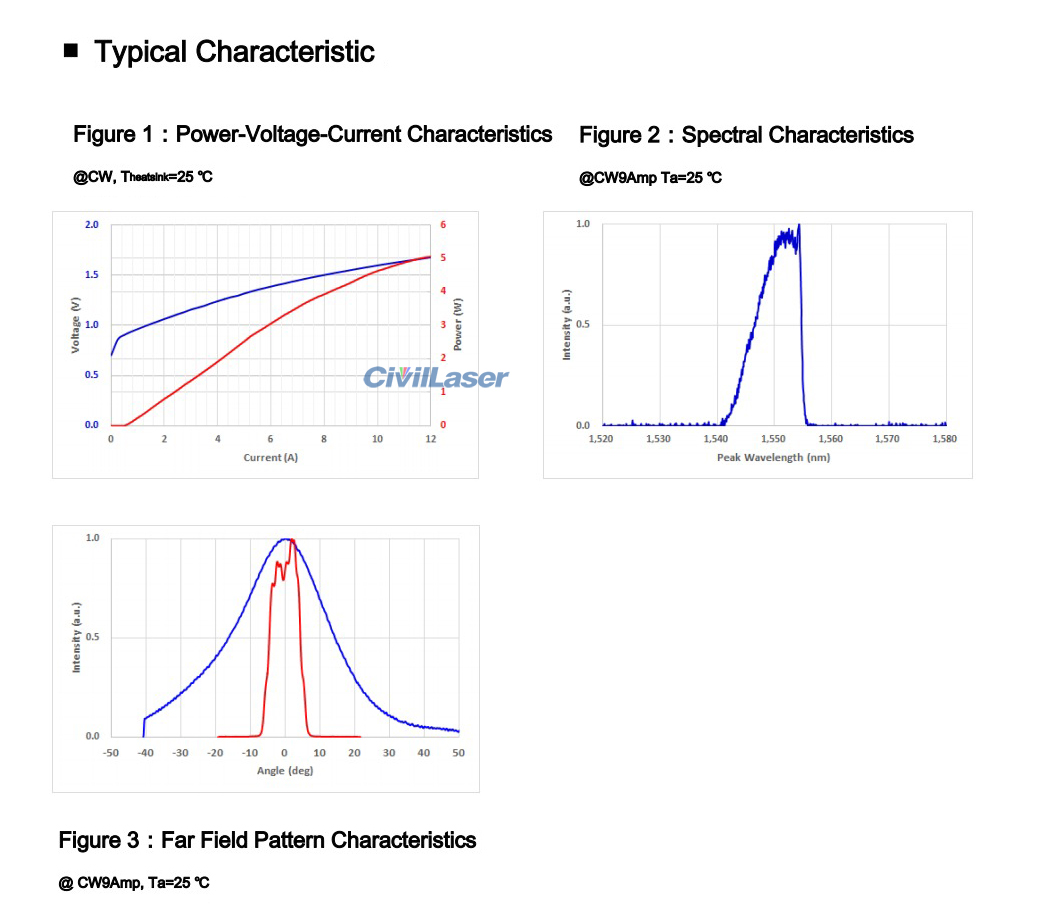

Electro Optical Data

Threshold current

Ith



0.8



A

Operating current

Iop



9



A

Operating voltage

Vop



1.6



V

Slope efficiency

ηd=Po/(Iop - Ith)



0.5



W/A

Total conversion efficiency

η=Po/(Iop x Vop)



28



%

Slow axis divergence ②

θ∥



10



degrees

Fast axis divergence ③

θ⊥



35



degrees

Spectral width ③

△λ



10



nm

Polarization





TE





Note:
①. Mounted on a heat sink coolant temperature 25℃, operating at nominal power
②. Full width at 95% power content
③. FWHM (Full width half maximum).
