976A-190-25-4-SE 976nm 25W Laser Chip 190μm Emission Width 4mm Cavity Length Single Emitter
[Features]
High laser power
High efficiency.
Excellent beam characteristics.
Long lifetime, high reliability.
[Applications]
Laser Display
Laser Illumination
Medical & Cosmetics
Scientific Research
Note:
1. Lead time: Some chips are in stock, and it will take 2 to 3 weeks if there is no stock.
2. Wholesale price: >100 pcs order, please contact us, the price has a bigger discount.
3. Country of origin: Made In China
[Specifications]
|
Parameters
|
Symbol
|
Min.
|
Typical
|
Max.
|
Unit
|
|
Operation①
|
|
Center wavelength
|
λ
|
966
|
976
|
986
|
nm
|
|
Output power
|
Po
|
|
25
|
|
W
|
|
Operation mode
|
|
|
CW
|
|
|
|

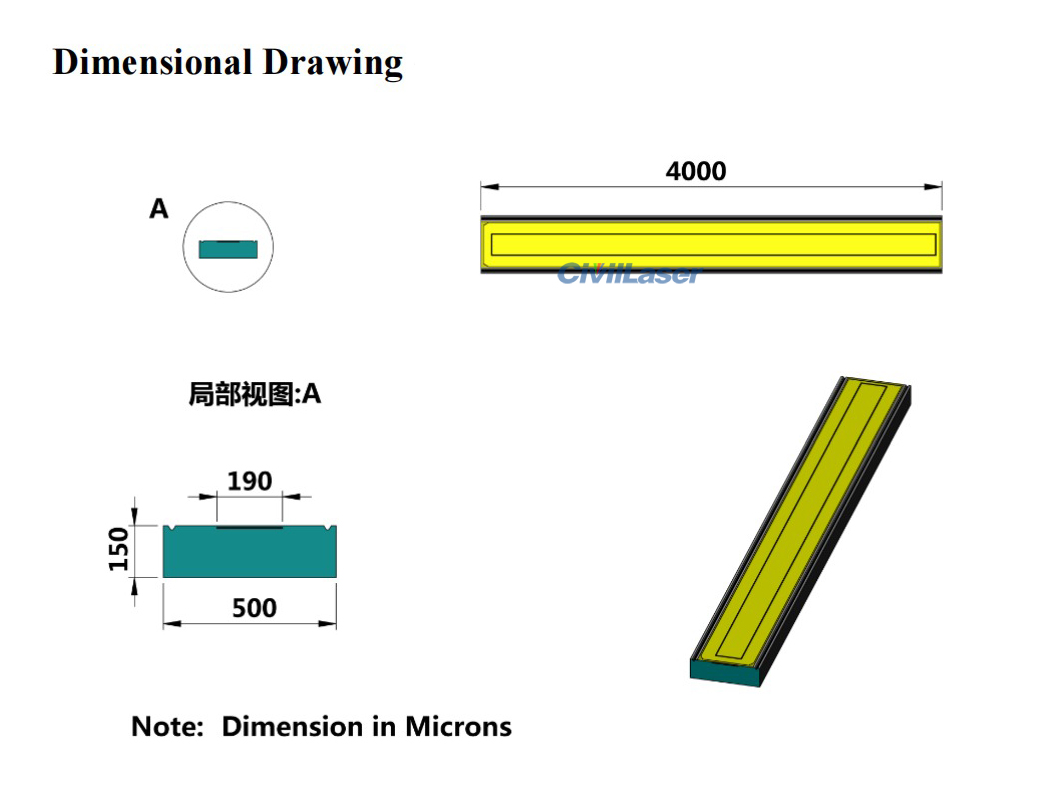

Geometrical
|
|
Emitter width
|
w
|
|
190
|
|
μm
|
|
Cavity length
|
L
|
|
4000
|
|
μm
|
|
Chip width
|
W
|
|
500
|
|
μm
|
|
Chip height
|
H
|
|
150
|
|
μm
|
|
Electro Optical Data
|
|
Threshold current
|
Ith
|
|
1.1
|
|
A
|
|
Operating current
|
Iop
|
|
23
|
|
A
|
|
Operating voltage
|
Vop
|
|
1.7
|
|
V
|
|
Slope efficiency
|
ηd=Po/(Iop - Ith）
|
|
1.2
|
|
W/A
|
|
Total conversion efficiency
|
η=Po/(Iop x Vop)
|
|
60
|
|
%
|
|
Slow axis divergence ②
|
θ∥
|
|
10
|
|
degrees
|
|
Fast axis divergence ③
|
θ⊥
|
|
30
|
|
degrees
|
|
Spectral Bandwidth ③
|
△λ
|
|
4
|
|
nm
|
|
Polarization
|
|
|
TE
|
|
|
|
Note:
①. Mounted on a heat sink coolant temperature 25℃, operating at nominal power
②. Full width at 95% power content
③. FWHM (Full width half maximum).
|
