880nm 10W 350μm Emission Width 2.5mm Cavity Length Single Emitter Laser Chip 880A-350-10-2.5-SE
[Features]
High laser power
High efficiency.
Excellent beam characteristics.
Long lifetime, high reliability.
[Applications]
Laser Display
Laser Illumination
Medical & Cosmetics
Scientific Research
Note:
1. Lead time: Some chips are in stock, and it will take 2 to 3 weeks if there is no stock.
2. Wholesale price: >100 pcs order, please contact us, the price has a bigger discount.
3. Country of origin: Made In China
[Specifications]
|
Parameters
|
Symbol
|
Min.
|
Typical
|
Max.
|
Unit
|
|
Operation①
|
|
Center wavelength
|
λ
|
870
|
880
|
890
|
nm
|
|
Output power
|
Po
|
9.4
|
9.8
|
|
W
|
|
Operation mode
|
|
|
CW
|
|
|
|

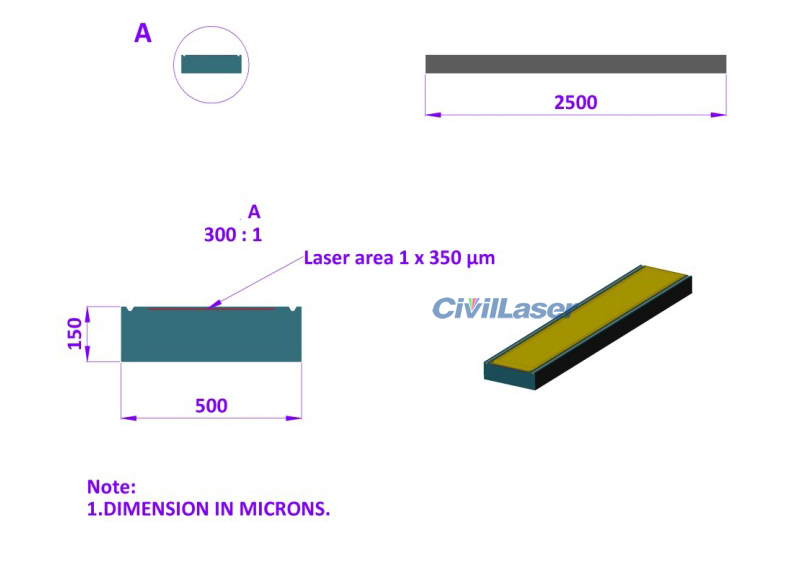

Geometrical
|
|
Emitter width
|
w
|
|
350
|
|
μm
|
|
Cavity length
|
L
|
|
2500
|
|
μm
|
|
Chip width
|
W
|
|
500
|
|
μm
|
|
Chip height
|
H
|
|
150
|
|
μm
|
|

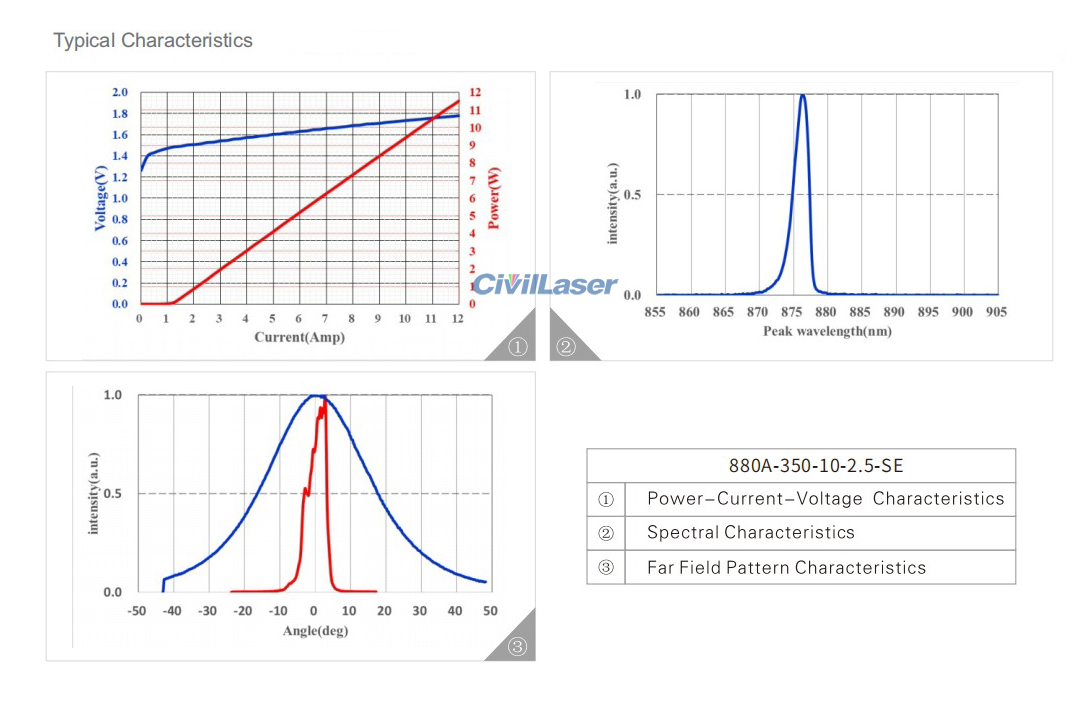

Electro Optical Data①
|
|
Threshold current
|
Ith
|
|
1.2
|
1.5
|
A
|
|
Operating current
|
Iop
|
|
10
|
9.5
|
A
|
|
Operating voltage
|
Vop
|
|
1.73
|
1.8
|
V
|
|
Slope efficiency
|
ηd=Po/(Iop - Ith）
|
1
|
1.1
|
|
W/A
|
|
Total conversion efficiency
|
η=Po/(Iop x Vop)
|
52
|
56
|
|
%
|
|
Slow axis divergence②
|
θ∥
|
|
8
|
10
|
degrees
|
|
Fast axis divergence③
|
θ⊥
|
|
35
|
40
|
degrees
|
|
Spectral width③
|
△λ
|
|
3
|
4
|
nm
|
|
Wavelength temperature coefficient
|
Δλ/ΔT
|
|
0.25
|
|
nm/℃
|
|
Polarization
|
|
|
TE
|
|
|
|
Note:
①. When testing a single-tube chip, it is packaged in COS (Chip On Submount), the COS test temperature is 25°C, and the thermal resistance is 2~3 K/W.
②. Full width at 95 % power content.
③. FWHM (Full width half maximum).
|
