690nm 1W 110μm Emission Width 1.5mm Cavity Length Single Emitter Laser Chip 690A-110-1-1.5-SE

Parameters

Symbol

Min.

Typ.①②

Max.

Unit

Operation

Center wavelength

λ

680

690

695

nm

Output power

Po

1

W

Operation mode

CW

Absolute Maximum Ratings③

Operation temperature

To

-10

25

50

℃

Geometrical

Emitter width

w

110

μm

Cavity length

L

1500

μm

Chip width

W

300

μm

Chip height

H

150

μm

Electro Optical Data

Threshold current

Ith

0.4

A

Operating current

Iop

1.1

1.2

1.3

A

Operating voltage

Vop

2.1

2.2

V

Slope efficiency

ηd=Po/(Iop - Ith）

1.3

W/A

Total conversion efficiency

η=Po/(Iop x Vop)

40

%

Slow axis divergence④

θ∥

8

degrees

Fast axis divergence⑤

θ⊥

35

degrees

Spectral width⑤

△λ

1

nm

Polarization

TE

Temperature drift coefficient of wavelength

0.17

nm/℃

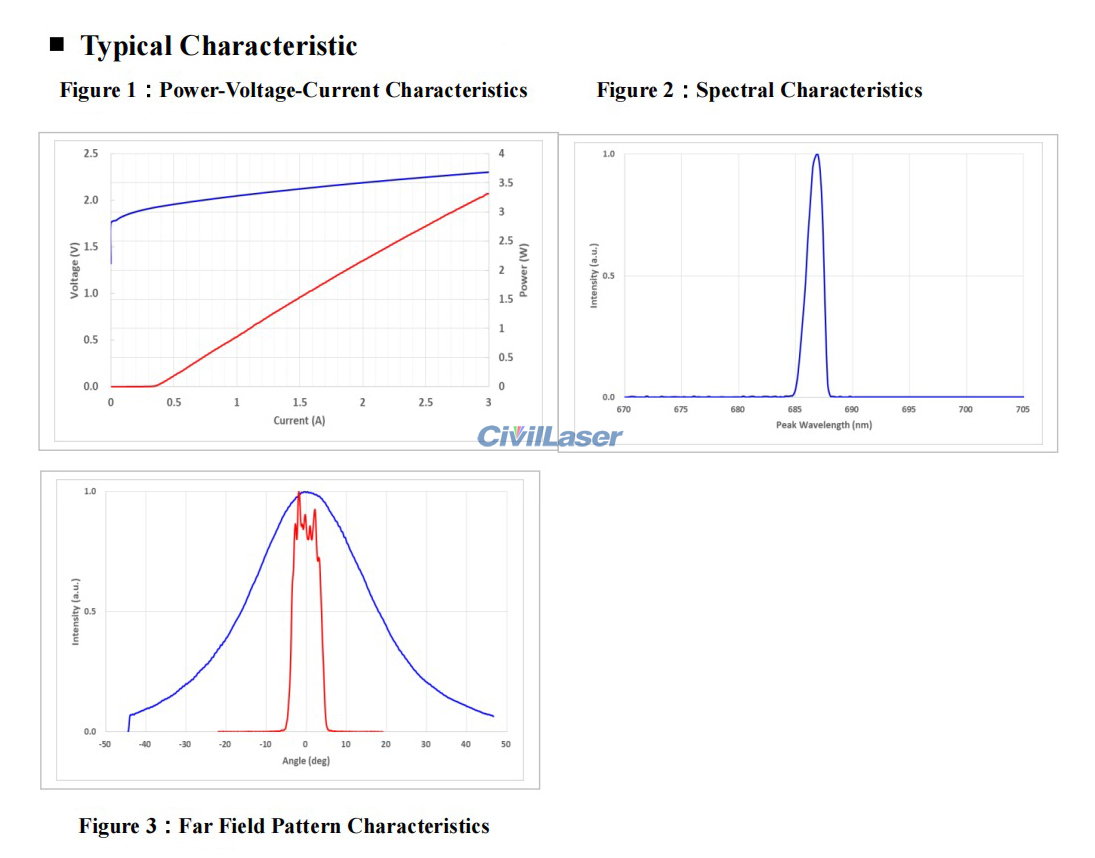

Note:
①. In the above table, the typical values of test data are obtained according to the test system of CivilLaser.
②. according to the single-tube chip test data. When testing a single-tube chip, it is packaged in COS (Chip On Submount), and the COS test temperature is 25°C.
③. The chip should not be used when the use conditions exceed the limit value; at the same time, except for the typical value, other use conditions do not mean that the service life of the chip can be guaranteed.
④. covering 95% of the energy.
⑤. FWHM (Full width half maximum).
