850nm 5-2200mW High Power Uniform Line IR Laser Module with Powell Lens φ16*90mm / φ12*45mm

850nm 5-2200mW High Power Uniform Line IR Laser Module with Powell Lens φ16*90mm / φ12*45mm

[Features]
Using the original imported Powell prism, a uniform straight line is produced, which needs to be viewed with an infrared camera.
Far away from visible light, invisible to the naked eye, highly concealed, and good anti-interference ability.

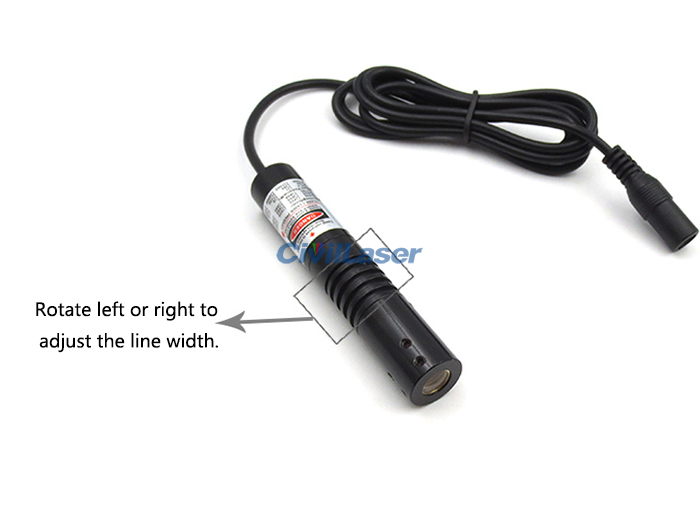

The line width is adjustable.
Powell prism angles can be customized from 5° to 120°.
Particularly high stability, can be turned on 24 hours a day.
Intelligent driver board with imported IC, can provide power in a wide range, other voltages can be customized.
The interior is filled with heat dissipation silicone and AB glue, which can not only fully dissipate heat, but also prevent shock and fall.
The shell is aviation aluminum plated with insulating paint, which can not only fully dissipate heat, but also prevent shock, fall and static electricity.
High temperature resistant and corrosion resistant wires, suitable for all-weather and all-environment use.

[Specification]

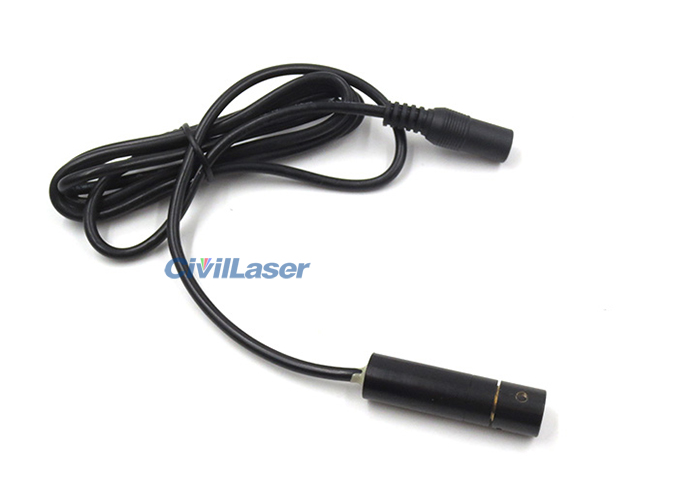

Product Name: Laser Module
Wavelength: 850nm
Output Power: 5mW / 10mW / 20mW / 50mW / 100mW / 200mW / 300mW / 500mW / 750mW / 1200mW / 2200mW (Choose)
Operating Current: ≤35mA / ≤50mA / ≤100mA / ≤120mA / ≤180mA / ≤300mA / ≤650mA / ≤800mA / ≤750mA / ≤1000mA / ≤2000mA
Operating Voltage: 5-100mW: DC 2.8-5.2V / 200-500mW: DC 2.8-3.2V / 750mW: DC 5-25V / 1200-2200mW: DC 9-25V
Line Shape: Line with highlights at both ends / Line without highlights (Only for 16*90mm) (Choose)

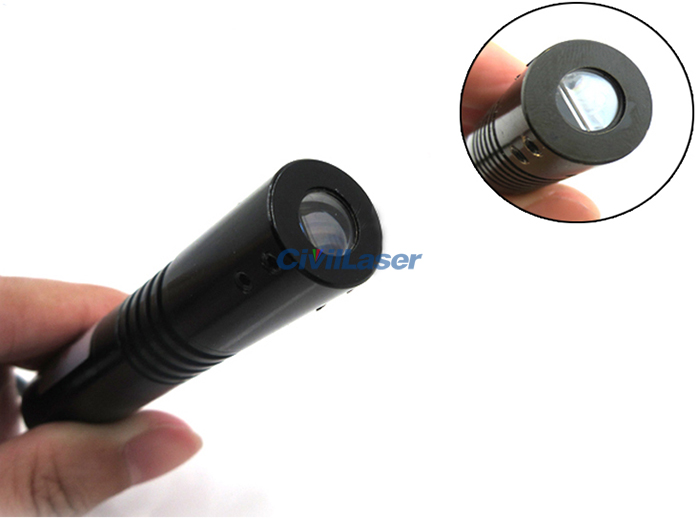

Optical Lens: Powell prism
Lens Angle: 5° to 120° (customizable)

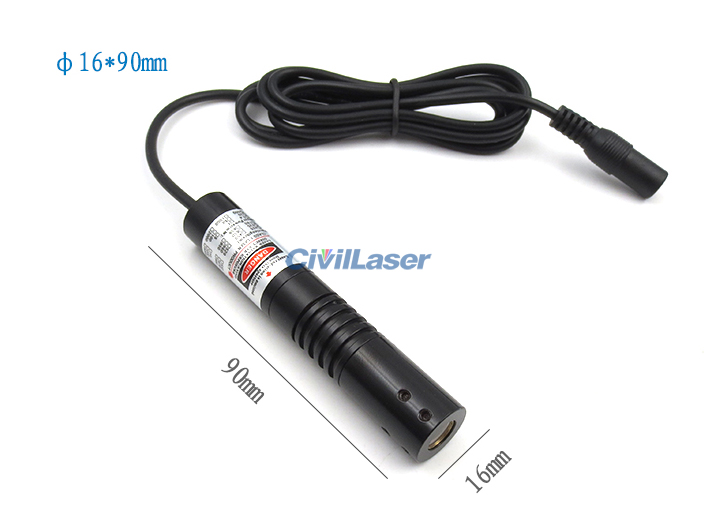

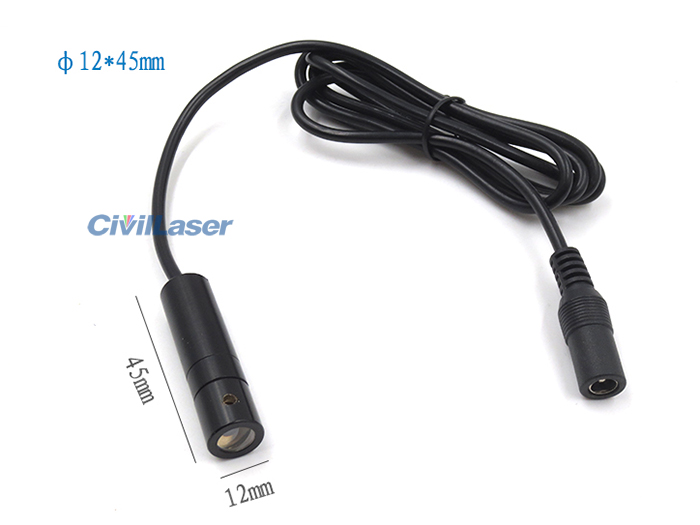

Dimensions: φ16*90mm / φ12*45mm (Choose)

[Package Include]

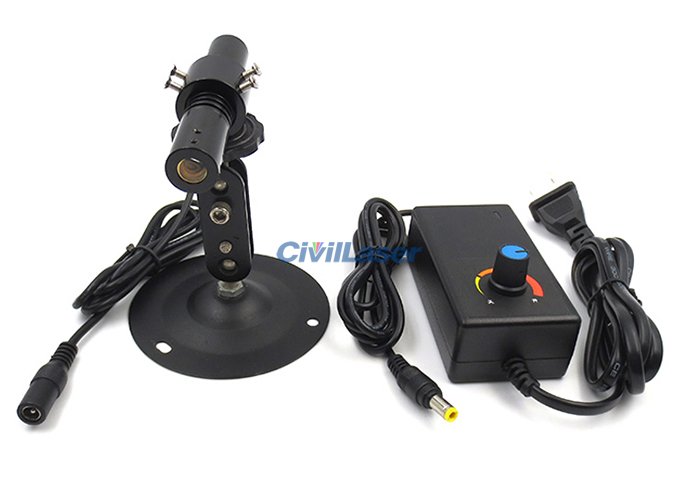

1 x Laser module
1 x Power supply
1 x Laser module holder
